SIDE MOULDING

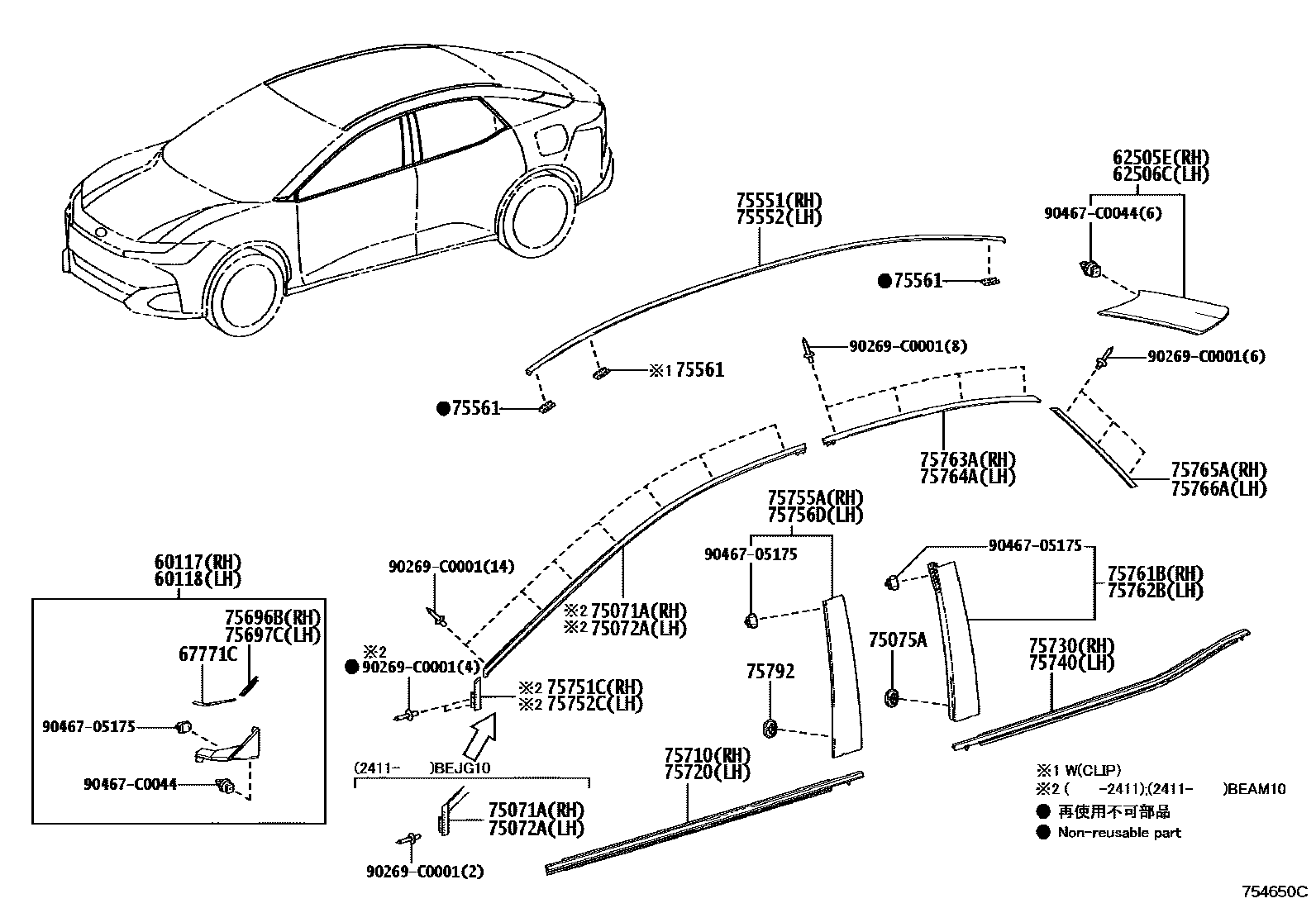

Parts diagram
60117COVER SUB-ASSY, FRONT PILLAR, UPR RH
main60117-03010i202301
main60117-03010i202407
60118COVER SUB-ASSY, FRONT PILLAR, UPR LH
main60118-03010i202407
main60118-03010i202301
62505ECOVER SUB-ASSY, QUARTER PILLAR, RH
main62505-03010i202407
NO PAINT REQ.
main62505-03010i202301
NO PAINT REQ.
62506CCOVER SUB-ASSY, QUARTER PILLAR, LH
main62506-03010i202301
NO PAINT REQ.
main62506-03010i202407
NO PAINT REQ.
67771CRETAINER, FRONT PILLAR COVER
main62218-03010i202407
RH
main62218-03010i202301
RH
main62219-03010i202407
LH
main62219-03010i202301
LH
75071AMOULDING SUB-ASSY, FRONT DOOR, OUTSIDE RH
main75071-03010i202301
main75071-03010i202407-202411
main75071-03011i202411
75072AMOULDING SUB-ASSY, FRONT DOOR, OUTSIDE LH
main75072-03010i202407-202411
main75072-03010i202301
main75072-03011i202411
75075ACLIP(FOR REAR DOOR OUTSIDE MOULDING)
main75792-0D010i202301
main75792-0D010i202407
75551MOULDING, ROOF DRIP SIDE FINISH, RH
main75551-03020i202407
NO PAINT REQ.
main75551-03020i202301
NO PAINT REQ.
main75551-03030i202407
NO PAINT REQ.
75552MOULDING, ROOF DRIP SIDE FINISH, LH
main75552-03020i202407
NO PAINT REQ.
main75552-03020i202301
NO PAINT REQ.
main75552-03030i202407
NO PAINT REQ.
75561CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1
main75561-02070i202407
main75561-02070i202301
75696BPAD, BODY OUTSIDE MOULDING, RH
main62213-03020i202407
main62213-03020i202301
75697CPAD, BODY OUTSIDE MOULDING, LH
main62214-03010i202407
main62214-03010i202301
75710MOULDING ASSY, FRONT DOOR BELT, RH
main75710-03020i202407
main75710-03020i202301
75720MOULDING ASSY, FRONT DOOR BELT, LH
main75720-03020i202407
main75720-03020i202301
75730MOULDING ASSY, REAR DOOR BELT, RH
main75730-03020i202407
main75730-03020i202301
75740MOULDING ASSY, REAR DOOR BELT, LH
main75740-03020i202407
main75740-03020i202301
75751CMOULDING, FRONT DOOR WINDOW FRAME, FRONT RH
main75751-03010i202407-202411
main75751-03010i202301
75752CMOULDING, FRONT DOOR WINDOW FRAME, FRONT LH
main75752-03010i202407-202411
main75752-03010i202301
75755AMOULDING, FRONT DOOR WINDOW FRAME, RH(CENTER PILLAR SIDE)
main75755-03010i202407
main75755-03010i202301
75756DMOULDING, FRONT DOOR WINDOW FRAME, LH(CENTER PILLAR SIDE)
main75756-03010i202407
main75756-03010i202301
75761BMOULDING, REAR DOOR WINDOW FRAME, RH(CENTER PILLAR SIDE)
main75761-03010i202407
main75761-03010i202301
75762BMOULDING, REAR DOOR WINDOW FRAME, LH(CENTER PILLAR SIDE)
main75762-03010i202407
main75762-03010i202301
75763AMOULDING, REAR DOOR WINDOW FRAME, UPPER RH
main75763-03010i202407
main75763-03010i202301
75764AMOULDING, REAR DOOR WINDOW FRAME, UPPER LH
main75764-03010i202407
main75764-03010i202301
75765AMOULDING, REAR DOOR WINDOW FRAME, REAR RH
main75765-03010i202407
main75765-03010i202301
75766AMOULDING, REAR DOOR WINDOW FRAME, REAR LH
main75766-03010i202407
main75766-03010i202301
75792CLIP, DOOR WINDOW FRAME MOULDING
main75792-0D010i202407
main75792-0D010i202301
90269C0001
main90269-C0001
9046705175
main90467-05175¥80
90467C0044
main90467-C0044

31 parts on this diagram · 2 diagrams in section
