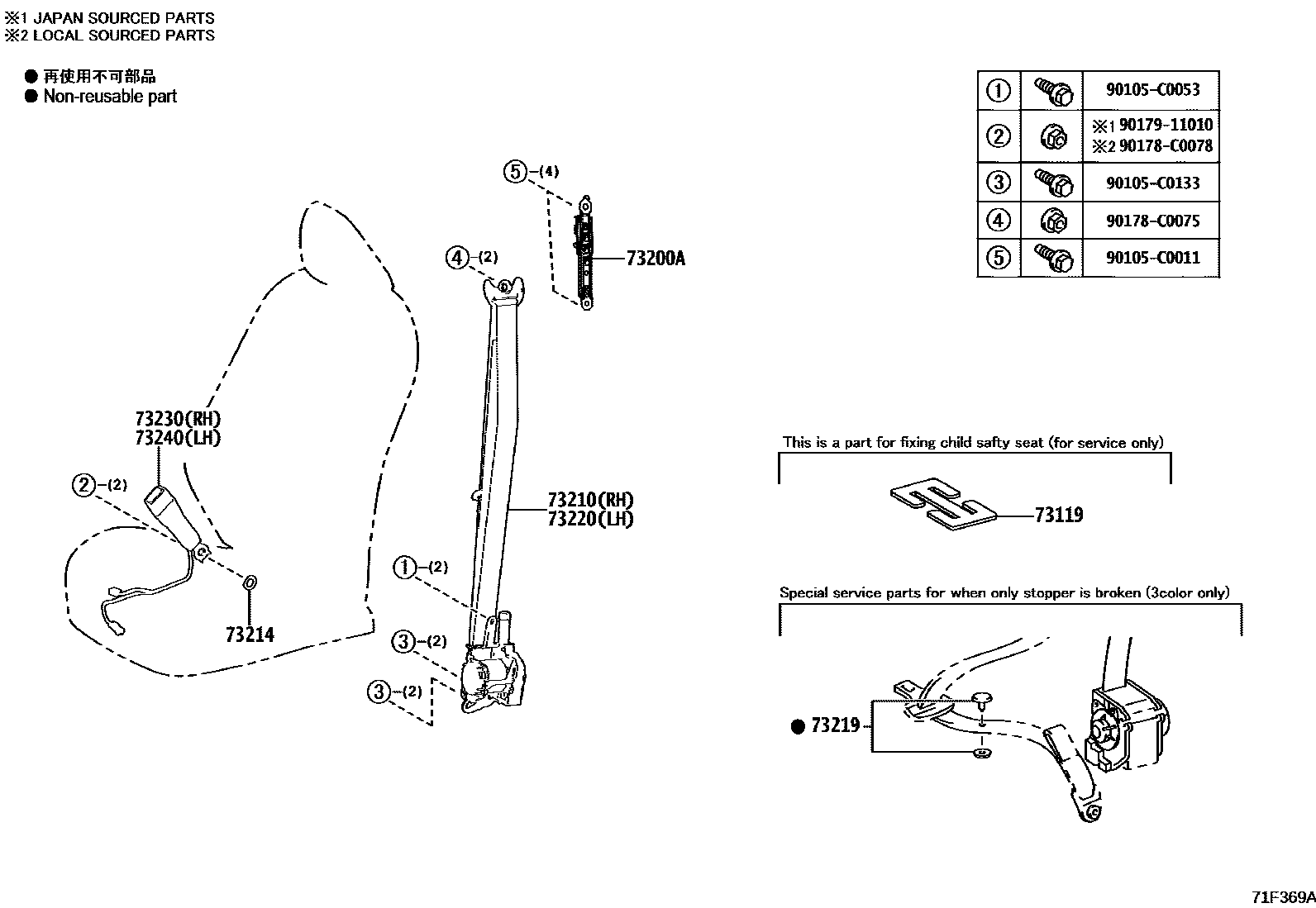

SEAT BELT & CHILD RESTRAINT SEAT

0001 1FRONT SEAT 0002 1REAR SEAT

73119PLATE, SEAT BELT WEBBING CLIP

main73119-22010iBEJG10202407

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-0G020×2iBEAM10202301

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-03010-C0iBEAM10..M,N202301-202401

BLACK/BLACK/LT.GRAY,TRIM1#,2#,4#

main73210-03010-C1iBEAM10..M,N202401

BLACK,TRIM0#,20,40

main73210-03010-C2iBEJG10202411

BLACK/SIGNATURE BLUE,TRIM0#,2#

main73210-03010-C3iBEJG10..M202411

FLEET PACKAGE,BLACK/BLACK,TRIM2#

73214PLATE, FRONT SEAT BELT ANCHOR

main73214-75010×2iBEJG10202407

73219STOPPER, TONGUE PLATE

main73219-33010iBEAM10202301

BLACK

main73219-33020iBEAM10202301

GRAY

main73219-33030iBEAM10202301

BEIGE

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-03010-C0iBEAM10..M,N202301-202401

BLACK/BLACK/LT.GRAY,TRIM1#,2#,4#

main73220-03010-C1iBEAM10..M,N202401

BLACK,TRIM0#,20,40

main73220-03010-C2iBEJG10202411

BLACK/SIGNATURE BLUE,TRIM0#,2#

main73220-03010-C3iBEJG10..M202411

FLEET PACKAGE,BLACK/BLACK,TRIM2#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-02E90-C0iBEAM10202301

BLACK,TRIM0#,1#,2#,4#

73240BELT ASSY, FRONT SEAT INNER, LH

main73240-02200-C0iBEAM10202301

BLACK,TRIM0#,1#,2#,4#

main73240-02210-C0iBEAM10..M202404

TAXI PACKAGE,BLACK,TRIM1#,2#,4#

90105C0011

main90105-C0011

90105C0053

main90105-C0053

90105C0133

main90105-C0133

90178C0075

main90178-C0075

90178C0078

main90178-C0078

9017911010

main90179-11010

14 parts on this diagram · 2 diagrams in section
