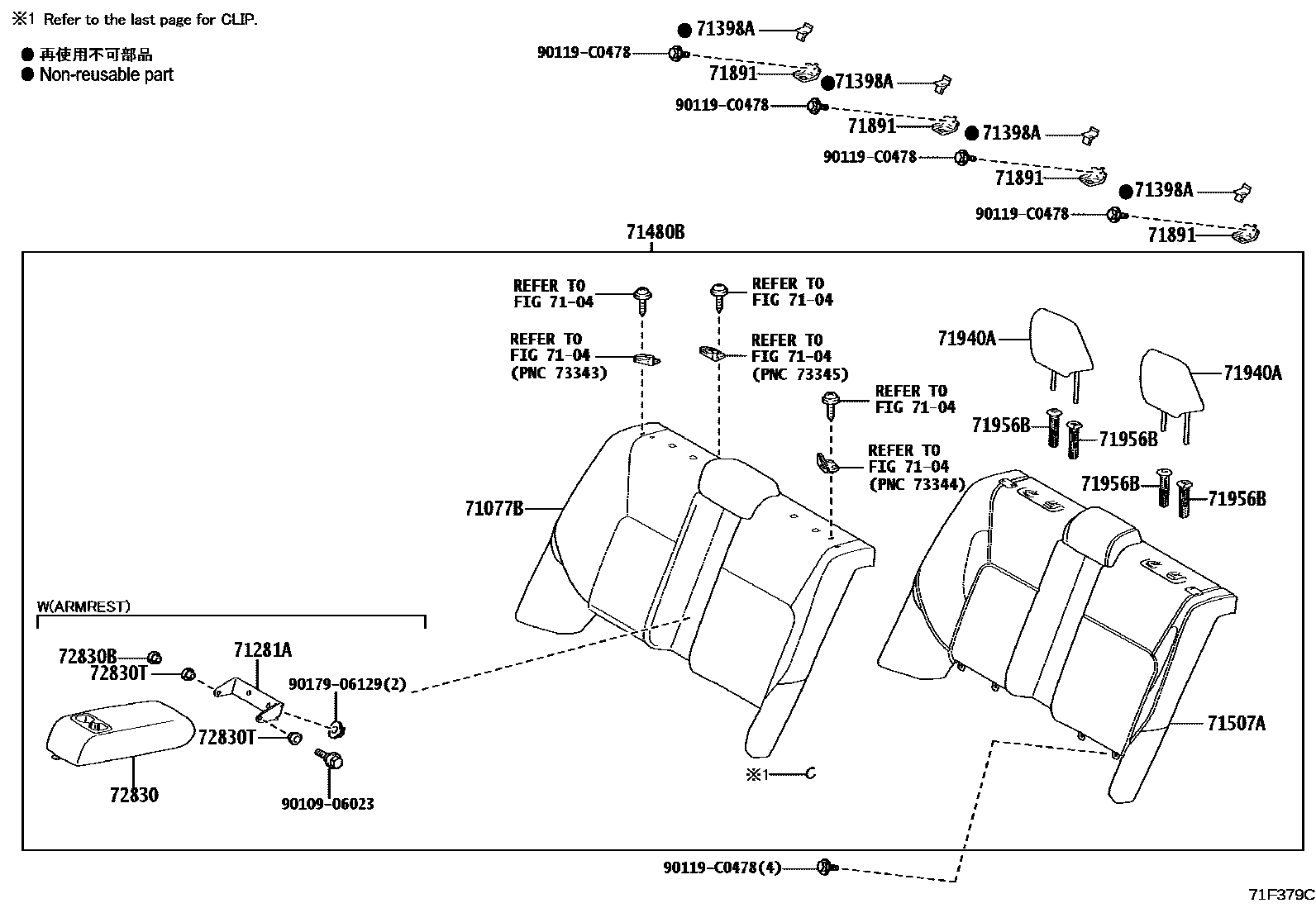

REAR SEAT & SEAT TRACK

0001 1SEAT BACK 0002 1SEAT CUSHION 0003 1CLIP

7104

71077BCOVER, REAR SEATBACK (FOR BENCH TYPE)

main71077-03110-B3iBEAM10..M,N202301-202401

LT.GRAY,TRIM1#

main71077-03110-B4iBEJG10..M,N202401

MD. GRAY,TRIM2#

main71077-03110-C3iBEAM10..M,N202301-202401

BLACK,TRIM2#

main71077-03110-E3iBEAM10..M,N202301-202401

SAND BROWN,TRIM4#

main71077-03110-E4iBEAM10..M,N202401

SAND BROWN,TRIM4#

main71077-03130-A0iBEAM10..M,N202401

WHITE,TRIM0#

main71077-03130-A0iBEAM10..J202401

ADVANCED PACKAGE,WHITE,TRIM0#

main71077-03130-B2iBEAM10..M,N202301-202401

LT. GRAY,TRIM1#

main71077-03130-B2iBEAM10..M,N202301-202401

ADVANCED PACKAGE,LT. GRAY,TRIM1#

main71077-03130-B3iBEAM10..M,N202401

MD. GRAY,TRIM2#

main71077-03130-B3iBEAM10..M,N202401

ADVANCED PACKAGE,MD. GRAY,TRIM2#

main71077-03130-C2iBEAM10..M,N202301-202401

BLACK,TRIM2#

main71077-03130-C2iBEAM10..M,N202301-202401

ADVANCED PACKAGE,BLACK,TRIM2#

main71077-03130-E2iBEAM10..J202301

SAND BROWN,TRIM4#

main71077-03130-E2iBEAM10..J202301

ADVANCED PACKAGE,SAND BROWN,TRIM4#

main71077-03190-A0iBEJG10..H,J202407

ADVANCED PACKAGE,WHITE/BLACK/MELLOW WHITE,TRIM0#

main71077-03190-A0iBEJG10..M,N202407

WHITE/BLACK/MELLOW WHITE,TRIM0#

main71077-03190-B0iBEJG10..H,J202407

ADVANCED PACKAGE,MD.GRAY/BLACK/MD.GRAY,TRIM2#

main71077-03190-B0iBEJG10..M,N202407

MD.GRAY/BLACK/MD.GRAY,TRIM2#

71281AHINGE, REAR SEAT CENTER ARMREST

main71281-03010iBEJG10..H,J202301

ADVANCED PACKAGE

main71281-03010iBEJG10..H,J202407

WHITE ADVANCED PACKAGE

main71281-03010iBEAM10..J202301

FLEET PACKAGE

71398AHOLDER, REAR SEATBACK

main71398-33010iBEJG10¥220202301

71480BBACK ASSY, REAR SEAT (FOR BENCH TYPE)

main71480-03070-B4iBEAM10..M,N202301-202401

LT.GRAY,TRIM1#

main71480-03070-C4iBEAM10..M,N202301-202401

BLACK,TRIM2#

main71480-03070-C5iBEAM10..M,N202401

BLACK,TRIM2#

main71480-03070-E4iBEAM10..M,N202301-202401

SAND BROWN,TRIM4#

main71480-03070-E5iBEAM10..M,N202401

SAND BROWN,TRIM4#

main71480-03080-A0iBEAM10..M,N202401

ADVANCED PACKAGE,WHITE,TRIM0#

main71480-03080-A0iBEAM10..J202401

WHITE,TRIM0#

main71480-03080-B3iBEAM10..M,N202301-202401

ADVANCED PACKAGE,LT.GRAY,TRIM1#

main71480-03080-B3iBEAM10..J202301-202401

LT.GRAY,TRIM1#

main71480-03080-C3iBEAM10..M,N202301-202401

ADVANCED PACKAGE,BLACK,TRIM2#

main71480-03080-C3iBEAM10..M,N202301-202401

BLACK,TRIM2#

main71480-03080-C4iBEAM10..M,N202401

BLACK,TRIM2#

main71480-03080-C4iBEAM10..J202401

ADVANCED PACKAGE,BLACK,TRIM2#

main71480-03080-E3iBEAM10..J202301-202401

ADVANCED PACKAGE,SAND BROWN,TRIM4#

main71480-03080-E3iBEAM10..J202301-202401

SAND BROWN,TRIM4#

main71480-03080-E4iBEAM10..J202401

ADVANCED PACKAGE,SAND BROWN,TRIM4#

main71480-03080-E4iBEAM10..M,N202401

SAND BROWN,TRIM4#

main71480-03150-A1iBEJG10..M,N202407

ADVANCED PACKAGE,WHITE/BLACK/MELLOW WHITE,TRIM0#

main71480-03150-A1iBEJG10..M,N202407

WHITE/BLACK/MELLOW WHITE,TRIM0#

main71480-03150-C1iBEJG10..M,N202407

MD.GRAY/BLACK/MD.GRAY,TRIM2#

main71480-03150-C1iBEJG10..H,J202407

ADVANCED PACKAGE,MD.GRAY/BLACK/MD.GRAY,TRIM2#

71507APAD SUB-ASSY, REAR SEATBACK

main71507-03010iBEJG10..H,J202407

WHITE ADVANCED PACKAGE

main71507-03010iBEJG10..M,N202301

ADVANCED PACKAGE

main71507-03010iBEAM10..J202301

FLEET PACKAGE

main71507-03020iBEJG10..M,N202301

71891BRACKET, REAR SEATBACK SET, NO.1

main71891-02110iBEJG10202301

71940AHEADREST ASSY, REAR SEAT

main71940-03030-B2iBEAM10..M,N202301-202401

LT.GRAY,TRIM1#

main71940-03030-B3iBEJG10..N202401

MD. GRAY,TRIM20

main71940-03030-B3iBEJG10..M202407

MD. GRAY,TRIM2#

main71940-03030-C2iBEAM10..M,N202301-202401

BLACK,TRIM2#

main71940-03030-C2iBEJG10..M202401

BLACK,TRIM20

main71940-03030-E2iBEAM10..M,N202301

SAND BROWN,TRIM4#

main71940-03040-A0iBEJG10..H,J202401

ADVANCED PACKAGE,WHITE,TRIM0#

main71940-03040-A0iBEJG10..M,N202401

WHITE,TRIM0#

main71940-03040-B1iBEAM10..M,N202301-202401

ADVANCED PACKAGE,LT.GRAY,TRIM1#

main71940-03040-B1iBEAM10..J202301-202401

LT.GRAY,TRIM1#

main71940-03040-B2iBEAM10..J202401

MD. GRAY,TRIM2#

main71940-03040-B2iBEJG10..H,J202401

ADVANCED PACKAGE,MD. GRAY,TRIM2#

main71940-03040-C1iBEAM10..M,N202301-202401

ADVANCED PACKAGE,BLACK,TRIM2#

main71940-03040-C1iBEAM10..J202301-202401

BLACK,TRIM2#

main71940-03040-E1iBEAM10..J202301

ADVANCED PACKAGE,SAND BROWN,TRIM4#

main71940-03040-E1iBEAM10..J202301

SAND BROWN,TRIM4#

71956BSUPPORT, REAR SEAT HEADREST

main71930-06070-C0iBEJG10202407

W(LOCK),BLACK,TRIM0#,2#

main71930-06070-C0iBEAM10202301

W(LOCK),BLACK,TRIM0#,1#,2#,4#

main71931-06060-C0iBEJG10202407

W/O(LOCK),BLACK,TRIM0#,2#

main71931-06060-C0iBEAM10202301

W/O(LOCK),BLACK,TRIM0#,1#,2#,4#

72830ARMREST ASSY, REAR SEAT, CENTER

main72830-03050-A0iBEAM10..M,N202401

ADVANCED PACKAGE,WHITE,TRIM0#

main72830-03050-A0iBEAM10..J202401

WHITE,TRIM0#

main72830-03050-B2iBEAM10..M,N202301-202401

LT. GRAY,TRIM1#

main72830-03050-B2iBEAM10..J202301-202401

ADVANCED PACKAGE,LT. GRAY,TRIM1#

main72830-03050-B3iBEAM10..M,N202401

ADVANCED PACKAGE,MD. GRAY,TRIM2#

main72830-03050-B3iBEAM10..J202401

MD. GRAY,TRIM2#

main72830-03050-C2iBEAM10..J202301-202401

BLACK,TRIM2#

main72830-03050-C2iBEAM10..J202301-202401

ADVANCED PACKAGE,BLACK,TRIM2#

main72830-03050-E2iBEAM10..J202301-202401

ADVANCED PACKAGE,SAND BROWN,TRIM4#

main72830-03050-E2iBEAM10..J202301-202401

SAND BROWN,TRIM4#

main72830-03050-E3iBEAM10..M,N202401

ADVANCED PACKAGE,SAND BROWN,TRIM4#

main72830-03050-E3iBEAM10..J202401

SAND BROWN,TRIM4#

main72830-03080-A1iBEJG10..H,J202407

ADVANCED PACKAGE,WHITE,TRIM0#

main72830-03080-A1iBEJG10..H,J202407

WHITE,TRIM0#

main72830-03080-B1iBEJG10..M,N202407

MD.GRAY,TRIM2#

main72830-03080-B1iBEJG10..M,N202407

ADVANCED PACKAGE,MD.GRAY,TRIM2#

72830BBUSH(FOR REAR SEAT CENTER ARMREST)

main90386-06011iBEAM10..M¥250202301

ADVANCED PACKAGE

main90386-06011iBEJG10..H,J¥250202407

WHITE ADVANCED PACKAGE

main90386-06011iBEAM10..J¥250202301

FLEET PACKAGE

72830TBUSH (FOR REAR SEAT CENTER ARMREST)

main90386-08077iBEJG10..H,J¥90202301

ADVANCED PACKAGE

main90386-08077iBEJG10..H,J¥90202407

WHITE ADVANCED PACKAGE

main90386-08077iBEAM10..J¥90202301

FLEET PACKAGE

9010906023

main90109-06023¥110

90119C0478

main90119-C0478

9017906129

main90179-06129¥90

15 parts on this diagram · 3 diagrams in section
