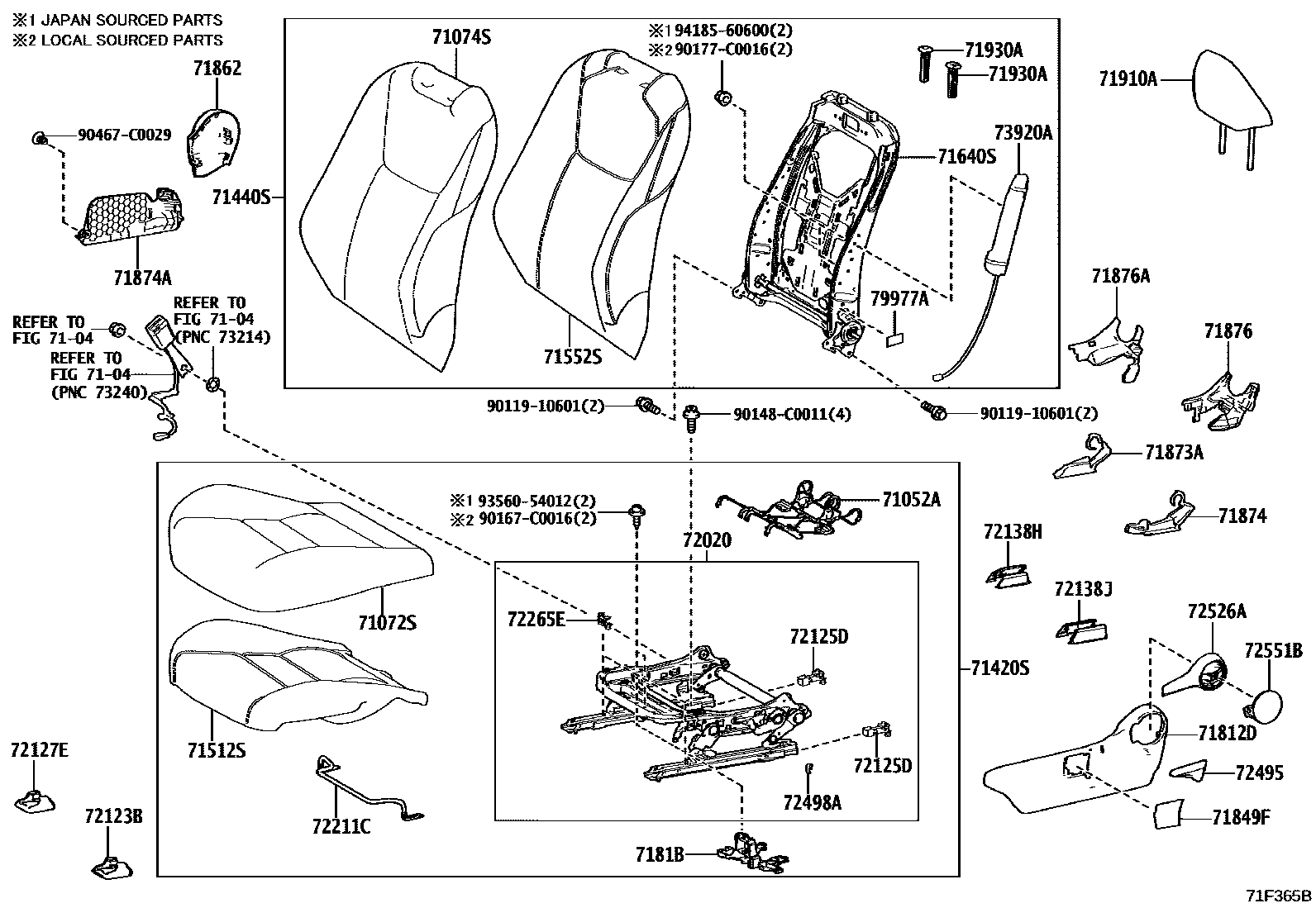

FRONT SEAT & SEAT TRACK

0001 1DRIVER SIDE(MANUAL SEAT) 0002 1DRIVER SIDE(POWER SEAT) 0003 1PASSENGER SIDE(MANUAL SEAT) 0004 1PASSENGER SIDE(POWER SEAT)

7104

71052ASPRING SUB-ASSY, FRONT SEAT CUSHION, LH

main71051-06040iBEJG10202301

71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71072-03130-B2iBEAM10..M,N202301-202401

LT.GRAY,TRIM1#

main71072-03130-B3iBEJG10..M,N202401

MD. GRAY,TRIM2#

main71072-03130-C3iBEAM10..M,N202301-202401

BLACK,TRIM2#

main71072-03130-E2iBEAM10..M,N202301-202401

SAND BROWN,TRIM4#

main71072-03130-E3iBEAM10..M,N202401

SAND BROWN,TRIM4#

main71072-03140-A0iBEAM10..J202401

WHITE,TRIM0#

main71072-03140-A0iBEAM10..M,N202401

ADVANCED PACKAGE,WHITE,TRIM0#

main71072-03140-B1iBEAM10..M,N202301-202401

ADVANCED PACKAGE,LT.GRAY,TRIM1#

main71072-03140-B1iBEAM10..J202301-202401

LT.GRAY,TRIM1#

main71072-03140-B2iBEAM10..J202401

ADVANCED PACKAGE,MD. GRAY,TRIM2#

main71072-03140-B2iBEAM10..J202401

MD. GRAY,TRIM2#

main71072-03140-C1iBEAM10..M,N202301-202401

BLACK,TRIM2#

main71072-03140-C1iBEAM10..M,N202301-202401

ADVANCED PACKAGE,BLACK,TRIM2#

main71072-03140-E1iBEAM10..M,N202301-202401

SAND BROWN,TRIM4#

main71072-03140-E1iBEAM10..M,N202301-202401

ADVANCED PACKAGE,SAND BROWN,TRIM4#

main71072-03140-E2iBEAM10..J202401

SAND BROWN,TRIM4#

main71072-03140-E2iBEAM10..J202401

ADVANCED PACKAGE,SAND BROWN,TRIM4#

main71072-03200-A1iBEJG10..M,N202407

WHITE/BLACK/MELLOW WHITE,TRIM0#

main71072-03200-A1iBEJG10..H,J202407

ADVANCED PACKAGE,WHITE/BLACK/MELLOW WHITE,TRIM0#

main71072-03200-B0iBEJG10..M,N202407

MD.GRAY/BLACK/MD.GRAY,TRIM2#

main71072-03200-B0iBEJG10..M,N202407

ADVANCED PACKAGE,MD.GRAY/BLACK/MD.GRAY,TRIM2#

71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71074-03080-B2iBEAM10..M,N202301-202401

LT.GRAY,TRIM1#

main71074-03080-B3iBEAM10..M,N202401

MD. GRAY,TRIM2#

main71074-03080-C2iBEAM10..M,N202301-202401

BLACK,TRIM2#

main71074-03080-E2iBEAM10..M,N202301-202401

SAND BROWN,TRIM4#

main71074-03080-E3iBEAM10..M,N202401

SAND BROWN,TRIM4#

main71074-03090-A1iBEAM10..M,N202401

ADVANCED PACKAGE,WHITE,TRIM0#

main71074-03090-A1iBEAM10..J202401

WHITE,TRIM0#

main71074-03090-B3iBEAM10..M,N202301-202401

ADVANCED PACKAGE,LT.GRAY,TRIM1#

main71074-03090-B3iBEAM10..J202301-202401

LT.GRAY,TRIM1#

main71074-03090-B4iBEAM10..J202401

ADVANCED PACKAGE,MD. GRAY,TRIM2#

main71074-03090-B4iBEAM10..M,N202401

MD. GRAY,TRIM2#

main71074-03090-C3iBEAM10..M,N202301-202401

BLACK,TRIM2#

main71074-03090-C3iBEAM10..M,N202301-202401

ADVANCED PACKAGE,BLACK,TRIM2#

main71074-03090-E3iBEAM10..M,N202301-202401

SAND BROWN,TRIM4#

main71074-03090-E3iBEAM10..M,N202301-202401

ADVANCED PACKAGE,SAND BROWN,TRIM4#

main71074-03090-E5iBEAM10..M,N202401

ADVANCED PACKAGE,SAND BROWN,TRIM4#

main71074-03090-E5iBEAM10..M,N202401

SAND BROWN,TRIM4#

main71074-03180-A0iBEJG10..H,J202407

ADVANCED PACKAGE,WHITE/BLACK/MELLOW WHITE,TRIM0#

main71074-03180-A0iBEJG10..M,N202407

WHITE/BLACK/MELLOW WHITE,TRIM0#

main71074-03180-B0iBEJG10..M,N202407

ADVANCED PACKAGE,MD.GRAY/BLACK/MD.GRAY,TRIM2#

main71074-03180-B0iBEJG10..H,J202407

MD.GRAY/BLACK/MD.GRAY,TRIM2#

71420SCUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)

main71420-03080-B2iBEAM10..M,N202301-202401

LT.GRAY,TRIM1#

main71420-03080-C3iBEAM10..M,N202301-202401

BLACK,TRIM2#

main71420-03080-C4iBEAM10..M,N202401

BLACK,TRIM2#

main71420-03080-E2iBEAM10..M,N202301-202401

SAND BROWN,TRIM4#

main71420-03080-E3iBEAM10..M,N202401

SAND BROWN,TRIM4#

main71420-03090-A0iBEAM10..M,N202401

WHITE,TRIM0#

main71420-03090-A0iBEAM10..J202401

ADVANCED PACKAGE,WHITE,TRIM0#

main71420-03090-B1iBEAM10..M,N202301-202401

LT.GRAY,TRIM1#

main71420-03090-B1iBEAM10..M,N202301-202401

ADVANCED PACKAGE,LT.GRAY,TRIM1#

main71420-03090-C1iBEAM10..J202301-202401

ADVANCED PACKAGE,BLACK,TRIM2#

main71420-03090-C1iBEAM10..J202301-202401

BLACK,TRIM2#

main71420-03090-C2iBEAM10..J202401

BLACK,TRIM2#

main71420-03090-C2iBEAM10..M,N202401

ADVANCED PACKAGE,BLACK,TRIM2#

main71420-03090-E1iBEAM10..J202301-202401

SAND BROWN,TRIM4#

main71420-03090-E1iBEAM10..J202301-202401

ADVANCED PACKAGE,SAND BROWN,TRIM4#

main71420-03090-E2iBEAM10..J202401

SAND BROWN,TRIM4#

main71420-03090-E2iBEAM10..M,N202401

ADVANCED PACKAGE,SAND BROWN,TRIM4#

main71420-03190-A1iBEJG10..M,N202407

ADVANCED PACKAGE,WHITE/BLACK/MELLOW WHITE,TRIM0#

main71420-03190-A1iBEJG10..M,N202407

WHITE/BLACK/MELLOW WHITE,TRIM0#

main71420-03190-C1iBEJG10..H,J202407

MD.GRAY/BLACK/MD.GRAY,TRIM2#

main71420-03190-C1iBEJG10..M,N202407

ADVANCED PACKAGE,MD.GRAY/BLACK/MD.GRAY,TRIM2#

71440SBACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

main71440-03070-B2iBEAM10..M,N202301-202401

LT.GRAY,TRIM1#

main71440-03070-C2iBEAM10..M,N202301-202401

BLACK,TRIM2#

main71440-03070-C3iBEAM10..M,N202401

BLACK,TRIM2#

main71440-03070-E2iBEAM10..M,N202301-202401

SAND BROWN,TRIM4#

main71440-03070-E3iBEAM10..M,N202401

SAND BROWN,TRIM4#

main71440-03080-A1iBEAM10..M,N202401

WHITE,TRIM0#

main71440-03080-A1iBEAM10..J202401

ADVANCED PACKAGE,WHITE,TRIM0#

main71440-03080-B3iBEAM10..M,N202301-202401

LT.GRAY,TRIM1#

main71440-03080-B3iBEAM10..M,N202301-202401

ADVANCED PACKAGE,LT.GRAY,TRIM1#

main71440-03080-C3iBEAM10..J202301-202401

ADVANCED PACKAGE,BLACK,TRIM2#

main71440-03080-C3iBEAM10..J202301-202401

BLACK,TRIM2#

main71440-03080-C4iBEAM10..J202401

BLACK,TRIM2#

main71440-03080-C4iBEAM10..M,N202401

ADVANCED PACKAGE,BLACK,TRIM2#

main71440-03080-E3iBEAM10..M,N202301-202401

SAND BROWN,TRIM4#

main71440-03080-E3iBEAM10..J202301-202401

ADVANCED PACKAGE,SAND BROWN,TRIM4#

main71440-03080-E5iBEAM10..J202401

SAND BROWN,TRIM4#

main71440-03080-E5iBEAM10..J202401

ADVANCED PACKAGE,SAND BROWN,TRIM4#

main71440-03180-A1iBEJG10..M,N202407

ADVANCED PACKAGE,WHITE/BLACK/MELLOW WHITE,TRIM0#

main71440-03180-A1iBEJG10..M,N202407

WHITE/BLACK/MELLOW WHITE,TRIM0#

main71440-03180-C1iBEJG10..M,N202407

ADVANCED PACKAGE,MD.GRAY/BLACK/MD.GRAY,TRIM2#

main71440-03180-C1iBEJG10..M,N202407

MD.GRAY/BLACK/MD.GRAY,TRIM2#

71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

main71512-03020iBEJG10202301

71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71552-03010iBEJG10202301

71640SSPRING ASSY, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

71812DSHIELD, FRONT SEAT CUSHION, LH

main71812-02A60-C0iBEJG10202407

BLACK,TRIM0#,2#

main71812-02A60-C0iBEAM10202301

BLACK,TRIM0#,1#,2#,4#

7181BHOLDER, FRONT SEAT CUSHION WIRE HARNESS, LH

main7181B-07020iBEJG10202301

71849FCAP, SEAT ADJUSTER COVER, LH(FOR LH SEAT)

71862SHIELD, FRONT SEAT CUSHION, INNER LH

main71862-F4050-C0iBEJG10202407

BLACK,TRIM0#,2#

main71862-F4050-C0iBEAM10202301

BLACK,TRIM0#,1#,2#,4#

main71862-F4050-C0iBEAM10202301

FLEET PACKAGE,BLACK,TRIM1#,2#,4#

71873ASHIELD, FRONT SEAT CUSHION, LOWER

71874SHIELD, FRONT SEAT CUSHION, LOWER LH

main71874-F4030-C0iBEJG10202407

BLACK,TRIM0#,2#

main71874-F4030-C0iBEAM10202301

BLACK,TRIM0#,1#,2#,4#

main71874-F4030-C0iBEAM10202301

FLEET PACKAGE,BLACK,TRIM1#,2#,4#

71874ASHIELD, FRONT SEAT CUSHION, LOWER LH

main71874-03040-C0iBEJG10202407

BLACK,TRIM0#,2#

main71874-03040-C0iBEAM10202301

BLACK,TRIM0#,1#,2#,4#

main71874-03040-C0iBEAM10202301

FLEET PACKAGE,BLACK,TRIM2#

71876COVER, RECLINING ADJUSTER INSIDE, LH

main71876-F4070-C0iBEJG10202407

BLACK,TRIM0#,2#

main71876-F4070-C0iBEAM10202301

BLACK,TRIM0#,1#,2#,4#

main71876-F4070-C0iBEAM10202301

FLEET PACKAGE,BLACK,TRIM1#,2#,4#

71876ACOVER, RECLINING ADJUSTER INSIDE, LH

main71876-F4080-C0iBEJG10202407

BLACK,TRIM0#,2#

main71876-F4080-C0iBEAM10202301

BLACK,TRIM0#,1#,2#,4#

main71876-F4080-C0iBEAM10202301

FLEET PACKAGE,BLACK,TRIM1#,2#,4#

71910AHEADREST ASSY, FRONT SEAT

main71910-03080-B1iBEAM10..M,N202301-202401

LT.GRAY,TRIM1#

main71910-03080-B2iBEJG10..M202407

MD. GRAY,TRIM2#

main71910-03080-B2iBEJG10..M202401

MD. GRAY,TRIM20

main71910-03080-C1iBEAM10..M,N202401

BLACK,TRIM20

main71910-03080-C1iBEAM10..M,N202301-202401

BLACK,TRIM2#

main71910-03080-E1iBEAM10..M,N202301

SAND BROWN,TRIM4#

main71910-03090-A0iBEJG10..M,N202401

ADVANCED PACKAGE,WHITE,TRIM0#

main71910-03090-A0iBEJG10..M,N202401

WHITE,TRIM0#

main71910-03090-B1iBEAM10..M,N202301-202401

ADVANCED PACKAGE,LT.GRAY,TRIM1#

main71910-03090-B1iBEAM10..J202301-202401

LT.GRAY,TRIM1#

main71910-03090-B2iBEJG10..H,J202401

MD. GRAY,TRIM2#

main71910-03090-B2iBEJG10..M,N202401

ADVANCED PACKAGE,MD. GRAY,TRIM2#

main71910-03090-C1iBEAM10..J202301-202401

ADVANCED PACKAGE,BLACK,TRIM2#

main71910-03090-C1iBEAM10..J202301-202401

BLACK,TRIM2#

main71910-03090-E1iBEAM10..J202301

ADVANCED PACKAGE,SAND BROWN,TRIM4#

main71910-03090-E1iBEAM10..J202301

SAND BROWN,TRIM4#

71930ASUPPORT ASSY, FRONT SEAT HEADREST

main71930-06070-C0iBEAM10202301

W(LOCK),BLACK,TRIM0#,1#,2#,4#

main71930-06070-C0iBEJG10202407

W(LOCK),BLACK,TRIM0#,2#

main71931-06060-C0iBEJG10202407

W/O(LOCK),BLACK,TRIM0#,2#

main71931-06060-C0iBEAM10202301

W/O(LOCK),BLACK,TRIM0#,1#,2#,4#

72020ADJUSTER ASSY, FRONT SEAT, LH

main72020-0A080iBEJG10202301

72123BCOVER, SEAT TRACK BRACKET, OUTER FRONT

main72123-F4030iBEJG10202301

72125DCOVER, SEAT TRACK, UPPER REAR NO.2

main72125-F4020iBEJG10202301

72127ECOVER, SEAT TRACK BRACKET, INNER FRONT

main72123-F4030iBEJG10202301

72138HCOVER, FRONT SEAT TRACK, LH REAR INNER

main72158-03020iBEJG10202301

72138JCOVER, FRONT SEAT TRACK, LH REAR OUTER

main72137-F4020iBEJG10202301

72211CHANDLE, SEAT TRACK ADJUSTING

main72211-06140iBEJG10..M202301

FLEET PACKAGE

main72211-06140iBEJG10..M,N202407

TAXI PACKAGE

72265COVER, SEAT TRACK UPPER RAIL, RH

main72265-07020iBEAM10..M,N202301

ADVANCED PACKAGE

main72265-07020iBEJG10..H,J202407

WHITE ADVANCED PACKAGE

main72265-F4010iBEJG10..M,N202301

72265ECOVER, SEAT TRACK UPPER RAIL, RH

main72265-07020iBEJG10202301

72495HANDLE, VERTICAL ADJUSTING, LH

main72495-F4020

72498ACOVER, VERTICAL ADJUSTER BRACKET, LH

72526AHANDLE, RECLINING ADJUSTER RELEASE, LH

72551BCOVER, RECLINING HINGE, RH

main72551-F4080-C0iBEJG10..M,N202407

FLEET PACKAGE,BLACK,TRIM0#,2#

main72551-F4080-C0iBEJG10..M,N202407

BLACK,TRIM0#,2#

main72551-F4080-C0iBEJG10..M,N202407

TAXI PACKAGE,BLACK,TRIM0#,2#

main72551-F4080-C0iBEAM10..M,N202301

BLACK,TRIM0#,1#,2#,4#

main72551-F4080-C0iBEAM10..M,N202301

FLEET PACKAGE,BLACK,TRIM0#,1#,2#,4#

73920AAIRBAG ASSY, FRONT SEAT, LH

main73920-02370iBEJG10202301

79977AFELT, SEATBACK

main79977-02130iBEJG10..M202407

TAXI PACKAGE

main79977-02130iBEAM10..M,N202301

FLEET PACKAGE

9011910601

main90119-10601¥90

90148C0011

main90148-C0011

90167C0016

main90167-C0016

90177C0016

main90177-C0016

90467C0029

main90467-C0029

9356054012

main93560-54012¥60

9418560600

main94185-60600¥70

42 parts on this diagram · 4 diagrams in section
