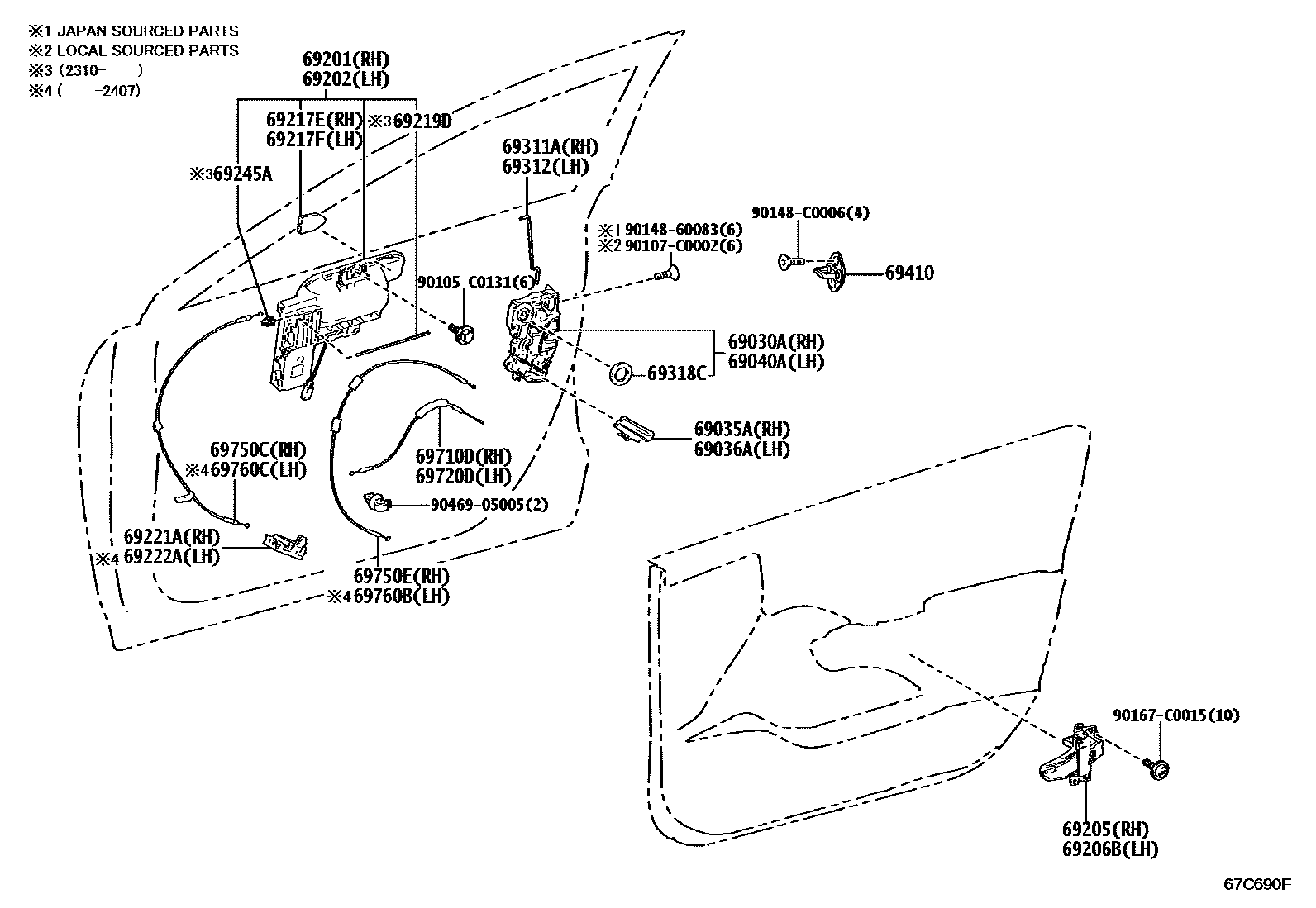

FRONT DOOR LOCK & HANDLE

69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH

main69030-03010iBEJG10202407

69035ACOVER SUB-ASSY, FRONT DOOR LOCK, RH

main69035-0R010iBEAM10202301

69036ACOVER SUB-ASSY, FRONT DOOR LOCK, LH

main69036-03030iBEAM10202407

main69036-0R010iBEAM10202301-202407

69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH

main69040-0R020iBEJG10202407

69201HANDLE SUB-ASSY, DOOR OUTSIDE, RH

main69201-03010-A0iBEAM10202301-202401

PLATINUM WHITE PEARL MC.,089 ,2PU

main69201-03010-B0iBEAM10202301-202401

METAL STREAM ME,1K0 ,2UY

main69201-03010-B1iBEAM10202301-202401

PRECIOUS METAL,1L5 ,2YV

main69201-03010-C0iBEAM10202301-202401

BLACK MC.,209

main69201-03010-D0iBEAM10202301-202401

RED M.M.,2NU ,3R3

main69201-03010-E0iBEAM10202301-202401

SILKY BROWN CS.,2YW ,4Y9

main69201-03011-A0iBEAM10202402-202406

PLATINUM WHITE PEARL MC.,089 ,2PU

main69201-03011-B0iBEAM10202402-202406

METAL STREAM ME,1K0 ,2UY

main69201-03011-B1iBEAM10202402-202406

PRECIOUS METAL,1L5 ,2YV

main69201-03011-C0iBEAM10202402-202406

BLACK MC.,209

main69201-03011-D0iBEAM10202402-202406

RED M.M.,2NU ,3R3

main69201-03011-E0iBEAM10202402-202406

SILKY BROWN CS.,2YW ,4Y9

main69201-03012-A0iBEAM10202407

PLATINUM WHITE PEARL MC.,089 ,2PU

main69201-03012-B0iBEAM10202407

METAL STREAM ME,1K0 ,2UY

main69201-03012-B1iBEAM10202407

PRECIOUS METAL,1L5 ,2YV

main69201-03012-C0iBEAM10202407

BLACK MC.,209

main69201-03012-D0iBEAM10202407

RED M.M.,2NU ,3R3

main69201-03012-D1iBEJG10202407

EMOTIONAL RED 2,2SZ ,3U5

main69201-03012-E0iBEAM10202407

SILKY BROWN CS.,2YW ,4Y9

main69201-03021-A0iBEJG10..M202407

TAXI PACKAGE,PLATINUM WHITE PEARL MC.,089

main69201-03021-B0iBEJG10..M202407

FLEET PACKAGE,METAL STREAM ME,1K0

main69201-03021-C0iBEJG10..M202407

FLEET PACKAGE,BLACK MC.,209

69202HANDLE SUB-ASSY, DOOR OUTSIDE, LH

main69202-03010-A0iBEAM10202301-202401

PLATINUM WHITE PEARL MC.,089 ,2PU

main69202-03010-B0iBEAM10202301-202401

METAL STREAM ME,1K0 ,2UY

main69202-03010-B1iBEAM10202301-202401

PRECIOUS METAL,1L5 ,2YV

main69202-03010-C0iBEAM10202301-202401

BLACK MC.,209

main69202-03010-D0iBEAM10202301-202401

RED M.M.,2NU ,3R3

main69202-03010-E0iBEAM10202301-202401

SILKY BROWN CS.,2YW ,4Y9

main69202-03011-A0iBEAM10202402-202407

PLATINUM WHITE PEARL MC.,089 ,2PU

main69202-03011-B0iBEAM10202402-202407

METAL STREAM ME,1K0 ,2UY

main69202-03011-B1iBEAM10202402-202407

PRECIOUS METAL,1L5 ,2YV

main69202-03011-C0iBEAM10202402-202407

BLACK MC.,209

main69202-03011-D0iBEAM10202402-202407

RED M.M.,2NU ,3R3

main69202-03011-E0iBEAM10202402-202407

SILKY BROWN CS.,2YW ,4Y9

main69202-03013-A0iBEAM10202407

PLATINUM WHITE PEARL MC.,089 ,2PU

main69202-03013-B0iBEAM10202407

METAL STREAM ME,1K0 ,2UY

main69202-03013-B1iBEAM10202407

PRECIOUS METAL,1L5 ,2YV

main69202-03013-C0iBEAM10202407

BLACK MC.,209

main69202-03013-D0iBEAM10202407

RED M.M.,2NU ,3R3

main69202-03013-D1iBEJG10202407

EMOTIONAL RED 2,2SZ ,3U5

main69202-03013-E0iBEAM10202407

SILKY BROWN CS.,2YW ,4Y9

main69202-03021-A0iBEJG10..M202407

TAXI PACKAGE,PLATINUM WHITE PEARL MC.,089

main69202-03021-B0iBEJG10..M202407

FLEET PACKAGE,METAL STREAM ME,1K0

main69202-03021-C0iBEJG10..M202407

FLEET PACKAGE,BLACK MC.,209

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-03050iBEAM10202301-202311

main69205-03051iBEAM10202311

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-03040iBEAM10202301-202311

main69206-03041iBEAM10202311

69217ECOVER, FRONT DOOR OUTSIDE HANDLE, RH

main69217-03010-A0iBEAM10202301-202401

PLATINUM WHITE PEARL MC.,089 ,2PU

main69217-03010-B0iBEAM10202301-202401

METAL STREAM ME,1K0 ,2UY

main69217-03010-B1iBEAM10202301-202401

PRECIOUS METAL,1L5 ,2YV

main69217-03010-C0iBEAM10202301-202401

BLACK MC.,209

main69217-03010-D0iBEAM10202301-202401

RED M.M.,2NU ,3R3

main69217-03010-E0iBEAM10202301-202401

SILKY BROWN CS.,2YW ,4Y9

main69217-03011-A0iBEJG10202407

PLATINUM WHITE PEARL MC.,089 ,2PU

main69217-03011-B0iBEJG10202407

METAL STREAM ME,1K0 ,2UY

main69217-03011-B1iBEJG10202407

PRECIOUS METAL,1L5 ,2YV

main69217-03011-C0iBEAM10202402

BLACK MC.,209

main69217-03011-D0iBEAM10202402

RED M.M.,2NU ,3R3

main69217-03011-D1iBEJG10202407

EMOTIONAL RED 2,2SZ ,3U5

main69217-03011-E0iBEAM10202402

SILKY BROWN CS.,2YW ,4Y9

main69217-03020-A0iBEJG10..M202407

TAXI PACKAGE,PLATINUM WHITE PEARL MC.,089

main69217-03020-B0iBEJG10..M202407

FLEET PACKAGE,METAL STREAM ME,1K0

main69217-03020-C0iBEJG10..M202407

FLEET PACKAGE,BLACK MC.,209

69217FCOVER, FRONT DOOR OUTSIDE HANDLE, LH

main69218-03010-A0iBEAM10202301-202401

PLATINUM WHITE PEARL MC.,089 ,2PU

main69218-03010-B0iBEAM10202301-202401

METAL STREAM ME,1K0 ,2UY

main69218-03010-B1iBEAM10202301-202401

PRECIOUS METAL,1L5 ,2YV

main69218-03010-C0iBEAM10202301-202401

BLACK MC.,209

main69218-03010-D0iBEAM10202301-202401

RED M.M.,2NU ,3R3

main69218-03010-E0iBEAM10202301-202401

SILKY BROWN CS.,2YW ,4Y9

main69218-03011-A0iBEJG10202407

PLATINUM WHITE PEARL MC.,089 ,2PU

main69218-03011-B0iBEAM10202402

METAL STREAM ME,1K0 ,2UY

main69218-03011-B1iBEAM10202402

PRECIOUS METAL,1L5 ,2YV

main69218-03011-C0iBEAM10202402

BLACK MC.,209

main69218-03011-D0iBEAM10202402

RED M.M.,2NU ,3R3

main69218-03011-D1iBEJG10202407

EMOTIONAL RED 2,2SZ ,3U5

main69218-03011-E0iBEAM10202402

SILKY BROWN CS.,2YW ,4Y9

main69218-03020-A0iBEJG10..M202407

TAXI PACKAGE,PLATINUM WHITE PEARL MC.,089

main69218-03020-B0iBEJG10..M202407

FLEET PACKAGE,METAL STREAM ME,1K0

main69218-03020-C0iBEJG10..M202407

FLEET PACKAGE,BLACK MC.,209

69219DPIN, DOOR OUTSIDE HANDLE CONNECTING LINK

main69219-03010×2iBEJG10202407

69221ACASE, FRONT DOOR OUTSIDE HANDLE, RH

main69221-03010iBEJG10202407

69222ACASE, FRONT DOOR OUTSIDE HANDLE, LH

main69222-03010iBEAM10202301-202407

69245AHOOK, DOOR OUTSIDE HANDLE, NO.1

main69245-03010×2iBEJG10202407

69311AROD, FRONT DOOR LOCK OPEN, RH

main69311-03020iBEJG10202407

69312ROD, FRONT DOOR LOCK OPEN, LH

main69312-03020iBEJG10202407

69318CSEAL, DOOR LOCK WIRING HARNESS

main69318-51010×2iBEJG10202407

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-0D020×2iBEJG10202407

69710DCABLE, FRONT DOOR LOCK REMOTE CONTROL, RH(FOR OPEN LEVER)

main69710-03020iBEAM10202301-202311

main69710-03021iBEJG10202407

69720DCABLE, FRONT DOOR LOCK REMOTE CONTROL, LH(FOR OPEN LEVER)

main69710-03020iBEAM10202301-202311

main69710-03021iBEJG10202407

69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH

main69750-03040iBEJG10202407

69750ECABLE, FRONT DOOR INSIDE LOCKING, RH(FOR LOCK / UNLOCK KNOB)

main69750-03020iBEAM10202301

69760BCABLE, FRONT DOOR INSIDE LOCKING, LH(FOR LOCK / UNLOCK KNOB)

main69750-03020iBEAM10202301-202407

69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH

main69760-03010iBEAM10202301-202407

90105C0131

main90105-C0131

90107C0002

main90107-C0002

9014860083

main90148-60083

90148C0006

main90148-C0006

90167C0015

main90167-C0015

9046905005

main90469-05005

30 parts on this diagram · 1 diagram in section
