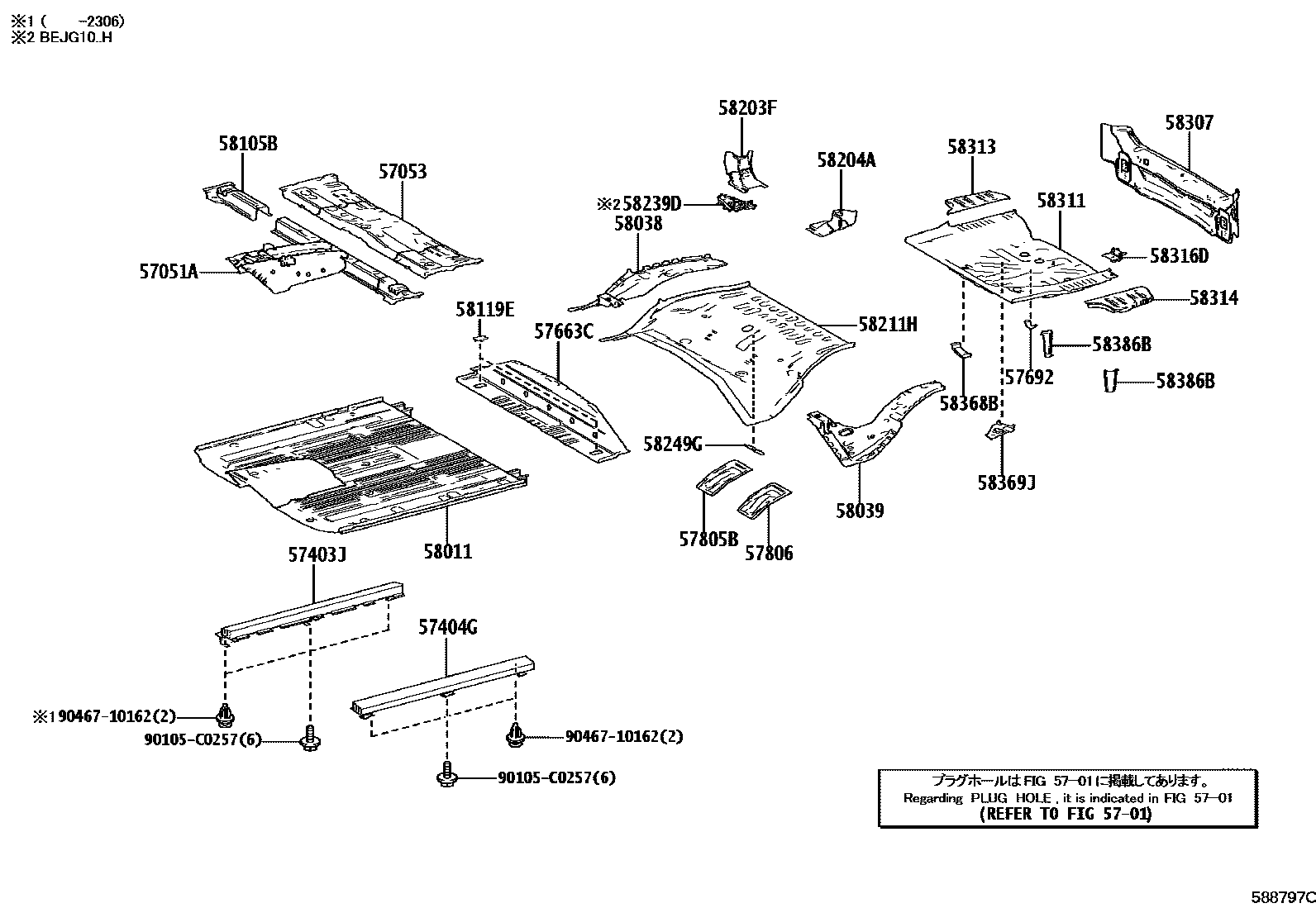

FLOOR PAN & LOWER BACK PANEL
5701
57403JREINFORCE SUB-ASSY, FLOOR SIDE, INNER RH
57404GREINFORCE SUB-ASSY, FLOOR SIDE, INNER LH
57663CMEMBER, REAR FLOOR CROSS, CENTER
57692BRACKET, FUEL TANK MOUNTING, REAR CENTER
58038REINFORCEMENT SUB-ASSY, REAR FLOOR PAN, RH
58039REINFORCEMENT SUB-ASSY, REAR FLOOR PAN, LH
58105BPANEL SUB-ASSY, FRONT FLOOR REAR UPPER SUB
58119ECOVER, FRONT FLOOR SIDE, FRONT
58204AREINFORCEMENT SUB-ASSY, CENTER FLOOR PANEL, LH
58239DBRACKET, CABLE CLAMP
58249GBRACKET, CABLE CLAMP, NO.2
58307PANEL SUB-ASSY, BODY LOWER BACK
58313PANEL, REAR FLOOR SIDE, RH
58314PANEL, REAR FLOOR SIDE, LH
58316DEXTENSION, REAR FLOOR PAN, LH
58368BBRACKET, FUEL TUBE, NO.2
58369JBRACKET, REAR FLOOR BRACE
58386BBRACKET, REAR BUMPER COVER, NO.2
90105C0257
main90105-C0257
9046710162
main90467-10162
29 parts on this diagram · 1 diagram in section
