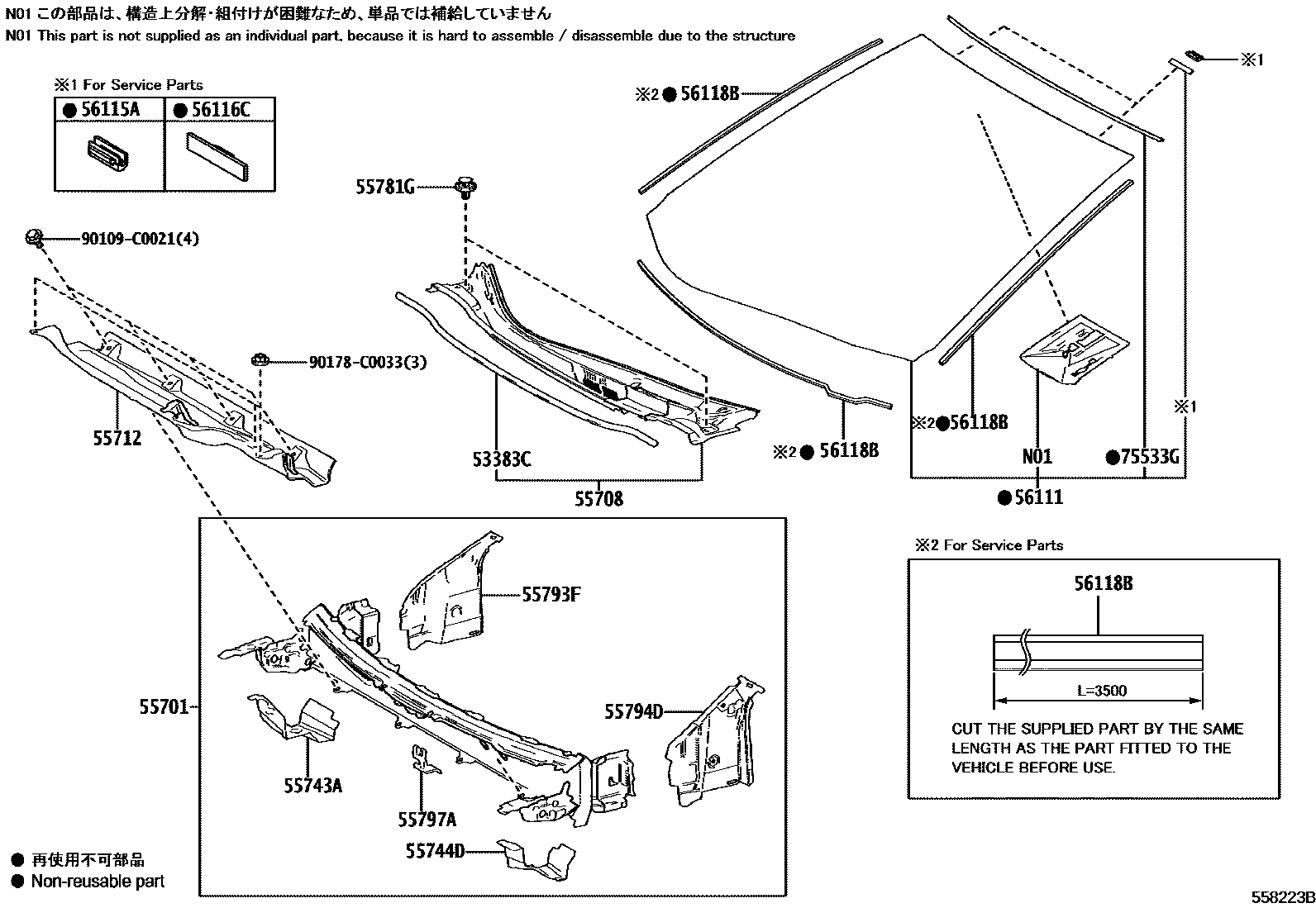

COWL PANEL & WINDSHIELD GLASS

53383CSEAL, HOOD TO COWL TOP

main53383-03020iBEJG10202301

55701PANEL SUB-ASSY, COWL

main55701-03020iBEAM10202301-202306

sub55701-03021

main55701-03021iBEAM10202307

55708LOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-03010iBEJG10202301

55712PANEL, COWL TOP OUTSIDE, FRONT

main55704-03010iBEAM10202301-202404

sub55704-03011

main55704-03011iBEAM10202405-202406

sub55704-03012

main55704-03012iBEAM10202407

55743AEXTENSION, COWL TO COWL SIDE, RH

main55743-03010iBEAM10202301

55744DEXTENSION, COWL TO COWL SIDE, LH

main55744-03010iBEAM10202301

55781GCLIP, COWL TOP VENTILATOR LOUVER

main90467-C0043iBEJG10202301

55793FCOVER, COWL REINFORCEMENT, UPPER NO.2 RH

main55793-03010iBEAM10202301-202306

sub55793-03011

main55793-03011iBEJG10202307

55794DCOVER, COWL REINFORCEMENT, UPPER NO.2 LH

main55794-03010iBEAM10202301

55797ASEAL, COWL WATER EXTRACT

main55797-03010iBEJG10202301

56111GLASS, WINDSHIELD

main56101-03030iBEAM10..M,N202301

main56101-03040iBEAM10..J202301

main56101-03070iBEJG10..M,N202407

main56101-03080iBEJG10..J202407

main56101-03090iBEJG10..H202407

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30100iBEJG10202301

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050iBEJG10202301

56118BDAM, WINDOW GLASS ADHESIVE, NO.2

main56117-64010iBEJG10202301

*D,L=1401 OR 869

75533GMOULDING, WINDSHIELD, OUTSIDE

main75531-03020iBEJG10202301

90109C0021

main90109-C0021

90178C0033

main90178-C0033

17 parts on this diagram · 1 diagram in section
