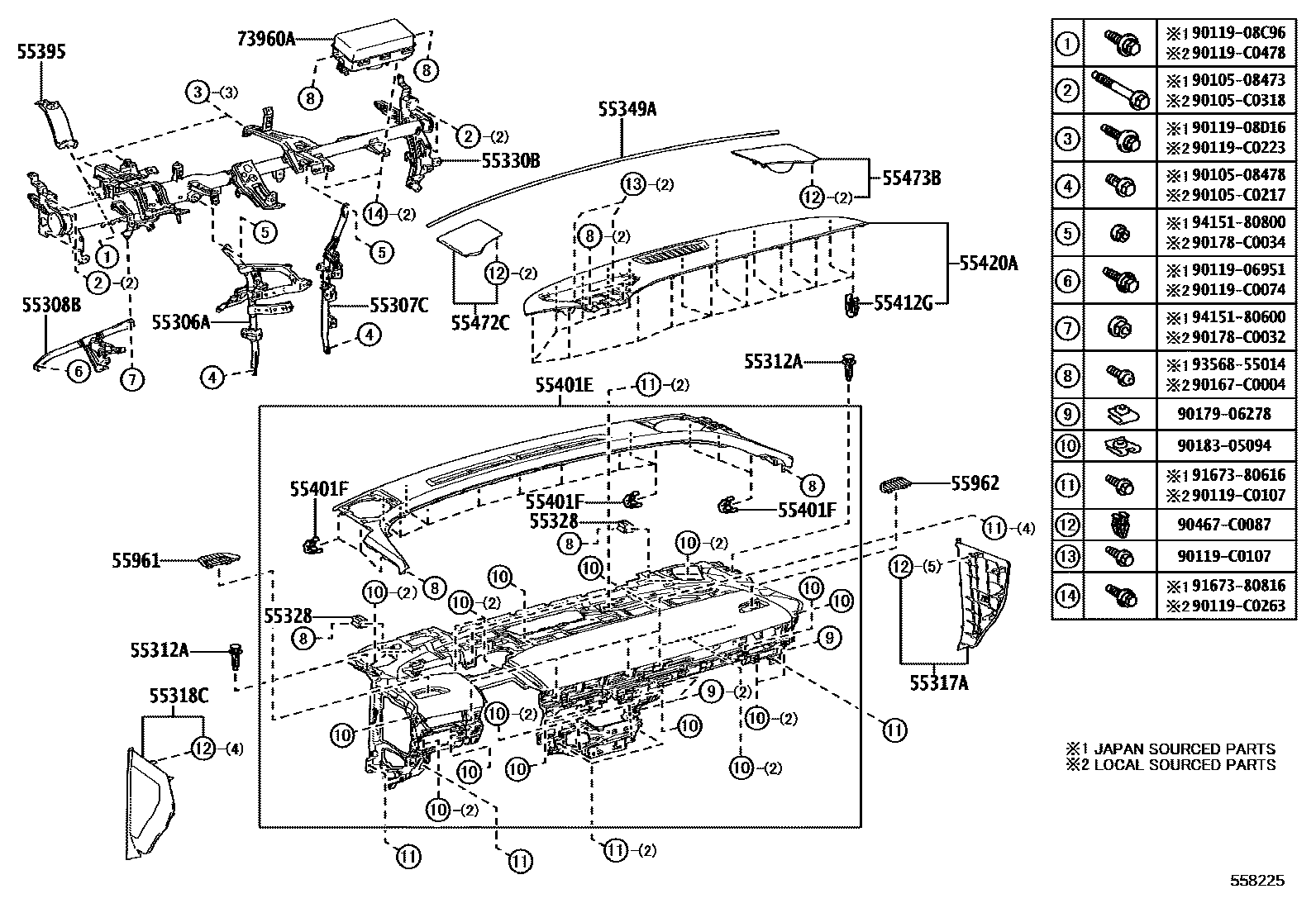

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1DRIVER SIDE 0003 1CENTER 0004 1PASSENGER SIDE

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-03020iBEAM10202301

main55306-03040iBEJG10..H202407

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-03020iBEAM10202301

main55307-03050iBEJG10..H202407

55308BBRACE SUB-ASSY, INSTRUMENT PANEL TO COWL, NO.3

main55308-03020iBEJG10202301-202411

sub55308-03021

main55308-03021iBEJG10202412

55312ACLIP, INSTRUMENT PANEL

main52161-02040iBEJG10202301

(L)

main52161-16010iBEAM10202301

(J)

sub52161-0K040

55317APANEL, INSTRUMENT SIDE, RH

main55318-03010-C0iBEJG10202407

BLACK,TRIM0#,2#

main55318-03010-C0iBEAM10202301

BLACK,TRIM0#,1#,2#,4#

55318CPANEL, INSTRUMENT SIDE, LH

main55317-03010-C0iBEJG10202407

BLACK,TRIM0#,2#

main55317-03010-C0iBEAM10202301

BLACK,TRIM0#,1#,2#,4#

55328PIN, INSTRUMENT PANEL, NO.1

main55328-0E100iBEJG10202301

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-03020iBEAM10202301

main55330-03050iBEJG10..H202407

55349ACUSHION, INSTRUMENT PANEL

main55349-03020iBEJG10202301

55395BRACKET, INSTRUMENT PANEL TO PEDAL

main55395-03010iBEJG10202301

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55400-03010-C0iBEJG10202407

BLACK,TRIM0#,2#

main55400-03010-C0iBEAM10202301

BLACK,TRIM0#,1#,2#,4#

55401FCLIP(FOR SAFETY PAD)

main90467-C0087iBEAM10202301

55412GCLIP(FOR INSTRUMENT CENTER CLUSTER FINISH PANEL)

main90467-C0087iBEJG10202301

55420APANEL ASSY, INSTRUMENT CLUSTER FINISH, CENTER

main55420-03020-C0iBEAM10202301

BLACK,TRIM0#,1#,2#,4#

main55420-03020-C0iBEJG10202407

BLACK,TRIM0#,2#

55472CPANEL, INSTRUMENT PANEL SPEAKER, NO.1

main55472-03020-C0iBEJG10202407

BLACK,TRIM0#,2#

main55472-03020-C0iBEAM10202301

BLACK,TRIM0#,1#,2#,4#

55473BPANEL, INSTRUMENT PANEL SPEAKER, NO.2

main55473-03020-C0iBEJG10202407

BLACK,TRIM0#,2#

main55473-03020-C0iBEAM10202301

BLACK,TRIM0#,1#,2#,4#

55961NOZZLE, SIDE DEFROSTER, NO.1

main55961-03020-C0iBEJG10202407

BLACK,TRIM0#,2#

main55961-03020-C0iBEAM10202301

BLACK,TRIM0#,1#,2#,4#

55962NOZZLE, SIDE DEFROSTER, NO.2

main55962-03020-C0iBEJG10202407

BLACK,TRIM0#,2#

main55962-03020-C0iBEAM10202301

BLACK,TRIM0#,1#,2#,4#

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-03010iBEJG10202301

9010508473

main90105-08473

9010508478

main90105-08478

90105C0217

main90105-C0217

90105C0318

main90105-C0318

9011906951

main90119-06951

9011908C96

main90119-08C96

9011908D16

main90119-08D16

90119C0074

main90119-C0074

90119C0107

main90119-C0107

90119C0223

main90119-C0223

90119C0263

main90119-C0263

90119C0478

main90119-C0478

90167C0004

main90167-C0004

90178C0032

main90178-C0032

90178C0034

main90178-C0034

9017906278

main90179-06278

9018305094

main90183-05094

90467C0087

main90467-C0087

9167380616

main91673-80616

9167380816

main91673-80816

9356855014

main93568-55014

9415180600

main94151-80600

9415180800

main94151-80800

42 parts on this diagram · 4 diagrams in section
