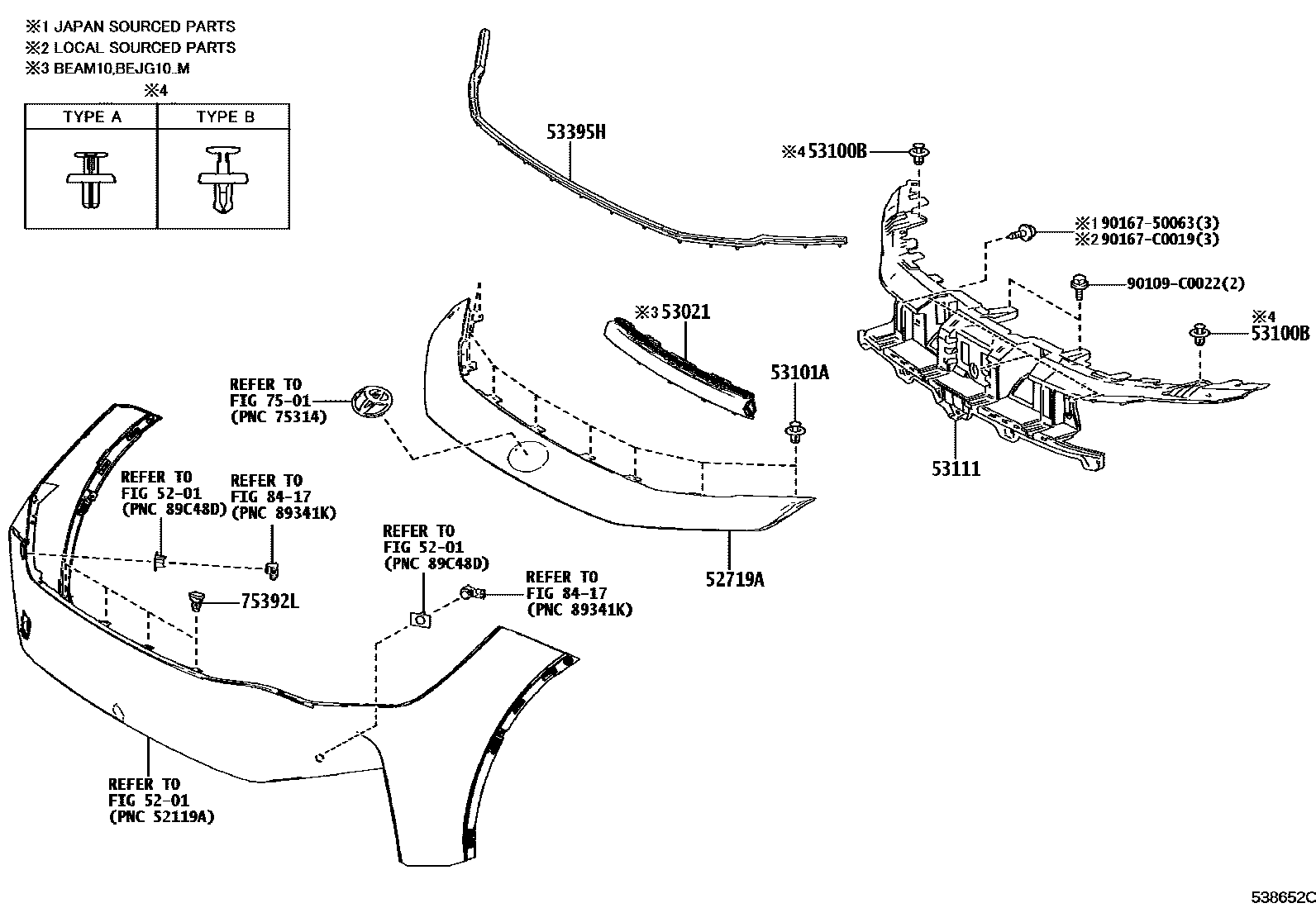

RADIATOR GRILLE

5201

52719ACOVER, FRONT BUMPER MOULDING

main53181-03900iBEJG10202407

53021GARNISH, RADIATOR GRILLE, LOWER

main8121A-03010iBEAM10..M202301

53100BCLIP, RADIATOR GRILLE

main90467-07215×2iBEJG10202407

TAXI PACKAGE

main90467-C0043×2iBEJG10202407

TYPE B:REFER ILLUST.

53101ACLIP, RADIATOR GRILLE

main90467-C0017-C0×8iBEAM10202301

BLACK

53111GRILLE, RADIATOR

main53111-03020iBEAM10202301-202310

NO PAINT REQ.

sub82711-3F400

main53111-03021iBEAM10202310

NO PAINT REQ.

53395HSEAL, HOOD TO RADIATOR GRILLE

main53395-03010iBEJG10202407

7501

75392LRETAINER, OUTSIDE MOULDING

main75392-0R030×4iBEJG10202407

8417

90109C0022

main90109-C0022

9016750063

main90167-50063

90167C0019

main90167-C0019

13 parts on this diagram · 1 diagram in section
