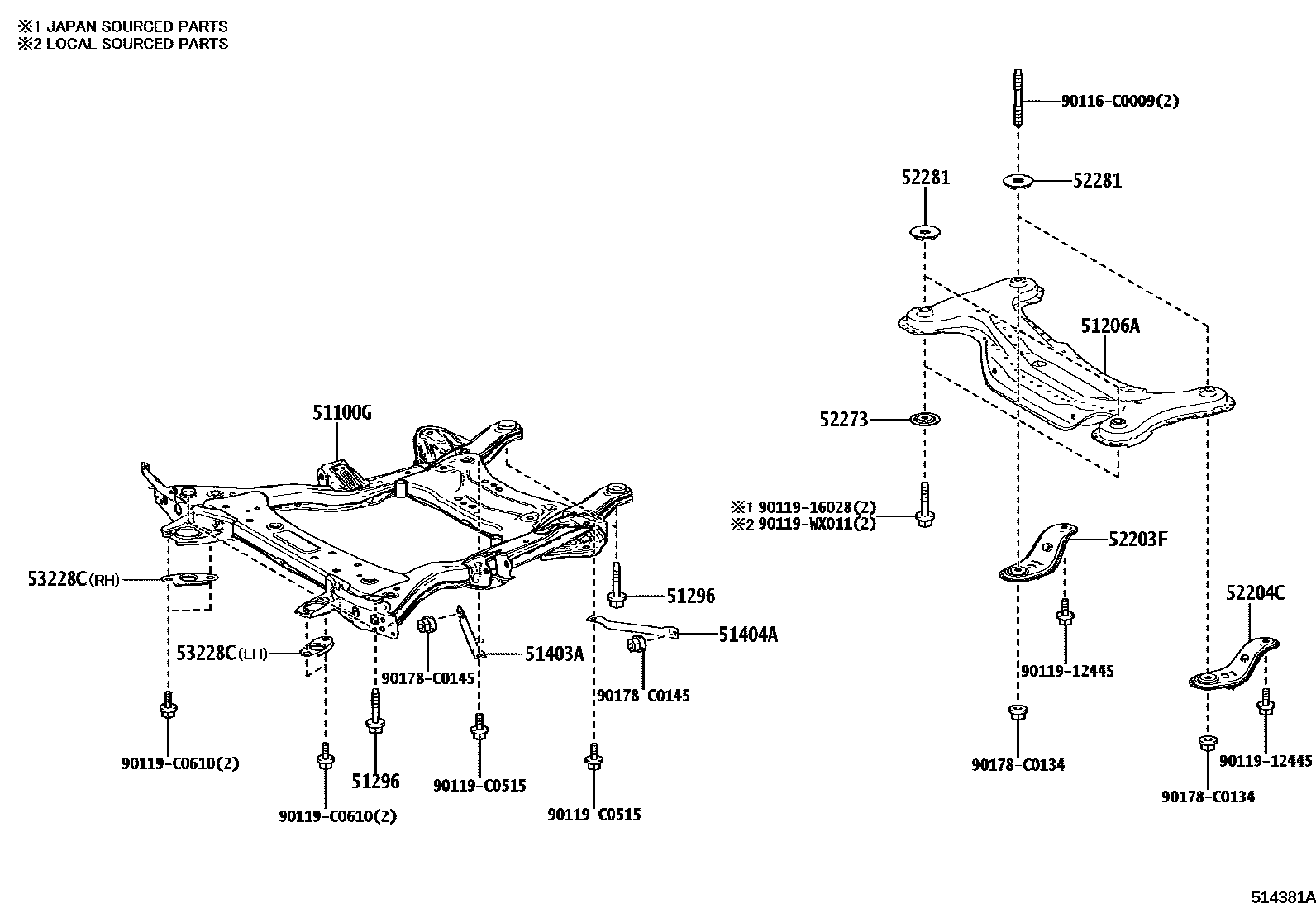

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1SUSPENSION MEMBER 0002 1UNDER COVER 0003 1UNDER COVER

51100GFRAME ASSY, FRONT

main51100-03010iBEJG10202407

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-03010iBEJG10202407

51296BOLT, FRONT SUSPENSION MEMBER MOUNTING

main90119-16024×4iBEJG10202407

(J)

main90119-C0630×4iBEAM10202301

(L)

51403ABRACE SUB-ASSY, FRONT SUSPENSION MEMBER, RH

main51403-03010iBEJG10202407

51404ABRACE SUB-ASSY, FRONT SUSPENSION MEMBER, LH

main51404-03010iBEAM10202301

52203FSTOPPER SUB-ASSY, REAR SUSPENSION MEMBER, LOWER RH

main52203-03010iBEAM10202301

52204CSTOPPER SUB-ASSY, REAR SUSPENSION MEMBER, LOWER LH

main52204-03010iBEJG10202407

52273STOPPER, REAR SUSPENSION MEMBER, LOWER

main52273-03010×2iBEJG10202407

52281CUSHION, DIFFERENTIAL SUPPORT MEMBER

main52281-03010×4iBEAM10202301

53228CBRACKET, RADIATOR MOUNTING, LOWER NO.1

main53228-03010iBEJG10202407

RH

main53229-03010iBEAM10202301

LH

90116C0009

main90116-C0009

9011912445

main90119-12445

9011916028

main90119-16028

90119C0515

main90119-C0515

90119C0610

main90119-C0610

90119WX011

main90119-WX011

90178C0134

main90178-C0134

90178C0145

main90178-C0145

18 parts on this diagram · 3 diagrams in section
