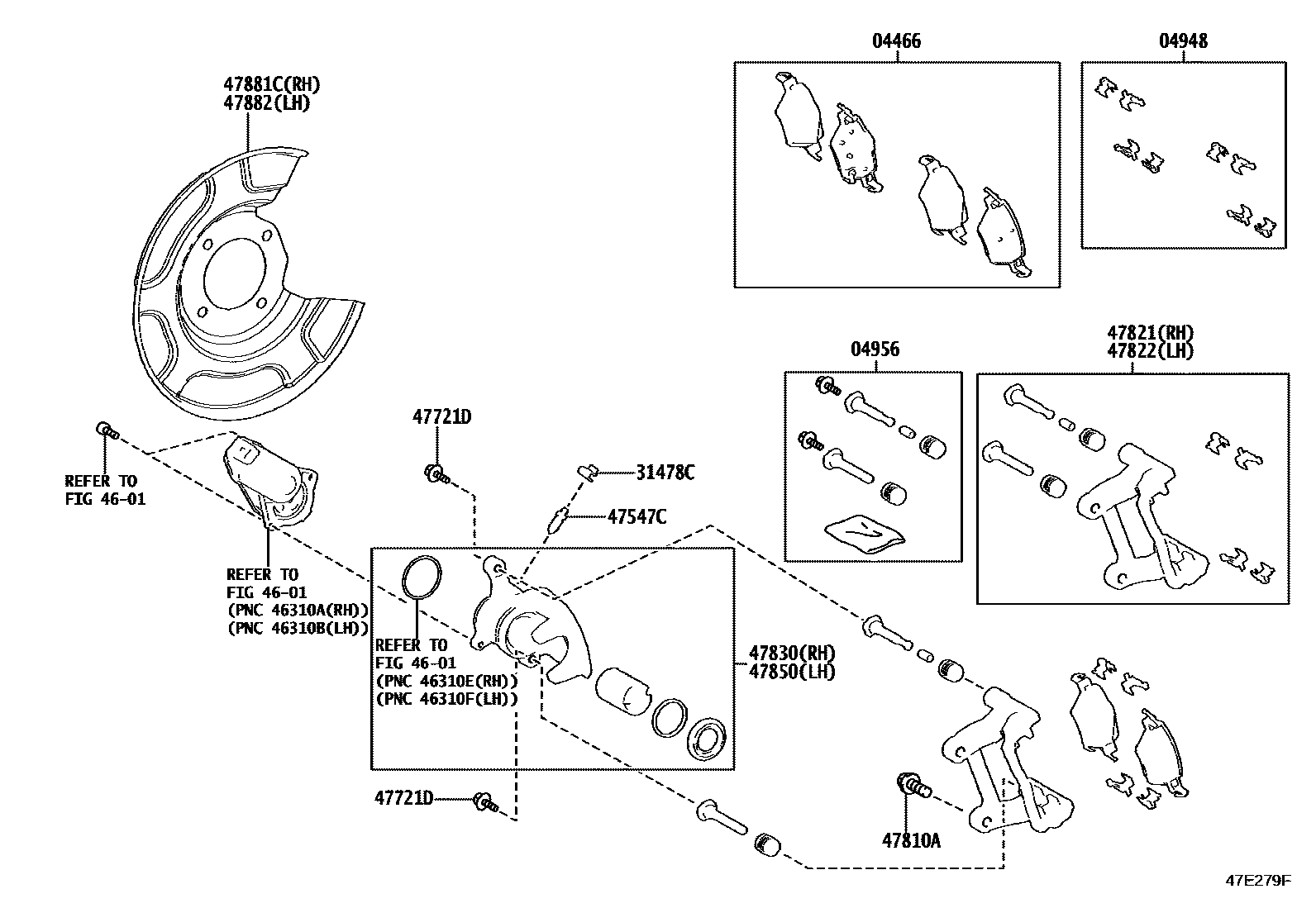

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-02510iBEJG10202301

MARK GA 8135

04948FITTING KIT, DISC BRAKE, REAR

main04947-02200iBEJG10202301

04956SLIDE PIN KIT, REAR DISC BRAKE CYLINDER

main04956-03030iBEJG10202301

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-03030iBEJG10202301

4601

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-03030iBEJG10202301

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main90069-31432iBEJG10202301

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90105-12175iBEJG10202301

47821MOUNTING, REAR DISC BRAKE CYLINDER, RH

main47821-03030iBEJG10202301

47822MOUNTING, REAR DISC BRAKE CYLINDER, LH

main47822-03030iBEJG10202301

47830CYLINDER ASSY, DISC BRAKE, REAR RH

main47830-03030iBEJG10202301

47850CYLINDER ASSY, DISC BRAKE, REAR LH

main47850-03030iBEJG10202301

47881CCOVER, DISC BRAKE DUST, REAR RH

main47881-03010iBEJG10202301

47882COVER, DISC BRAKE DUST, REAR LH

main47882-03010iBEJG10202301

14 parts on this diagram · 1 diagram in section
