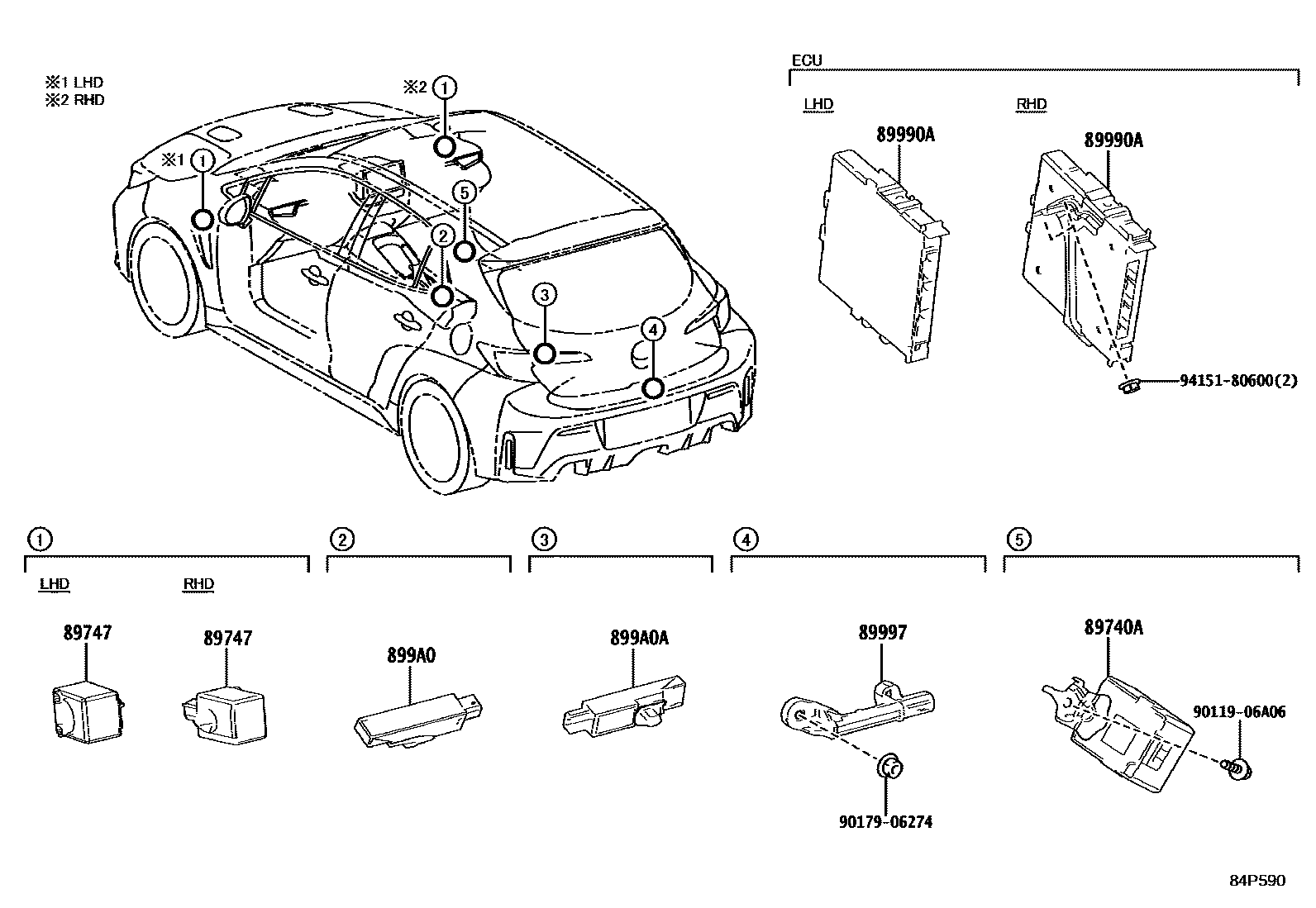

WIRELESS DOOR LOCK

89740ARECEIVER ASSY, SMART DOOR CONTROL

main89740-12410iGZEA14..ARL,BZ202409

main89740-12430iGZEA14..GEN,MA,TH202409

89747BUZZER, WIRELESS DOOR LOCK

main89747-30040iGZEA14..02S202210-202304

89990ACOMPUTER ASSY, SMART KEY

main899H0-12420iGZEA14..LHD..6F202409

main899H0-12430iGZEA14..RHD..6F202409-202410

main899H0-12431iGZEA14..RHD..6F202410

main899H0-12890iGZEA14..8FC..GEN202409

main899H0-12A00iGZEA14..RHD..8FC202409

89997ANTENNA, ELECTRICAL KEY

main89997-30100iGZEA14202409

899A0ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1

main899A0-12080iGZEA14202409

899A0AANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2

main899A0-12130iGZEA14202409

9011906A06

main90119-06A06

9017906274

main90179-06274

9415180600

main94151-80600

9 parts on this diagram · 1 diagram in section
