WIRING & CLAMP

0001 1ENGINE ROOM 1/2 0002 1ENGINE ROOM 2/2 0003 1ENGINE ROOM 1/2 0004 1ENGINE ROOM 2/2 0005 1ENGINE 1/2 0006 1ENGINE 2/2 0007 1INSTRUMENT PANEL 0008 1INSTRUMENT PANEL 0009 1DOOR 0010 1FLOOR & ROOF 0011 1CLAMP & BRACKET 0012 1CONNECTOR 1/3 0013 1CONNECTOR 2/3 0014 1CONNECTOR 3/3

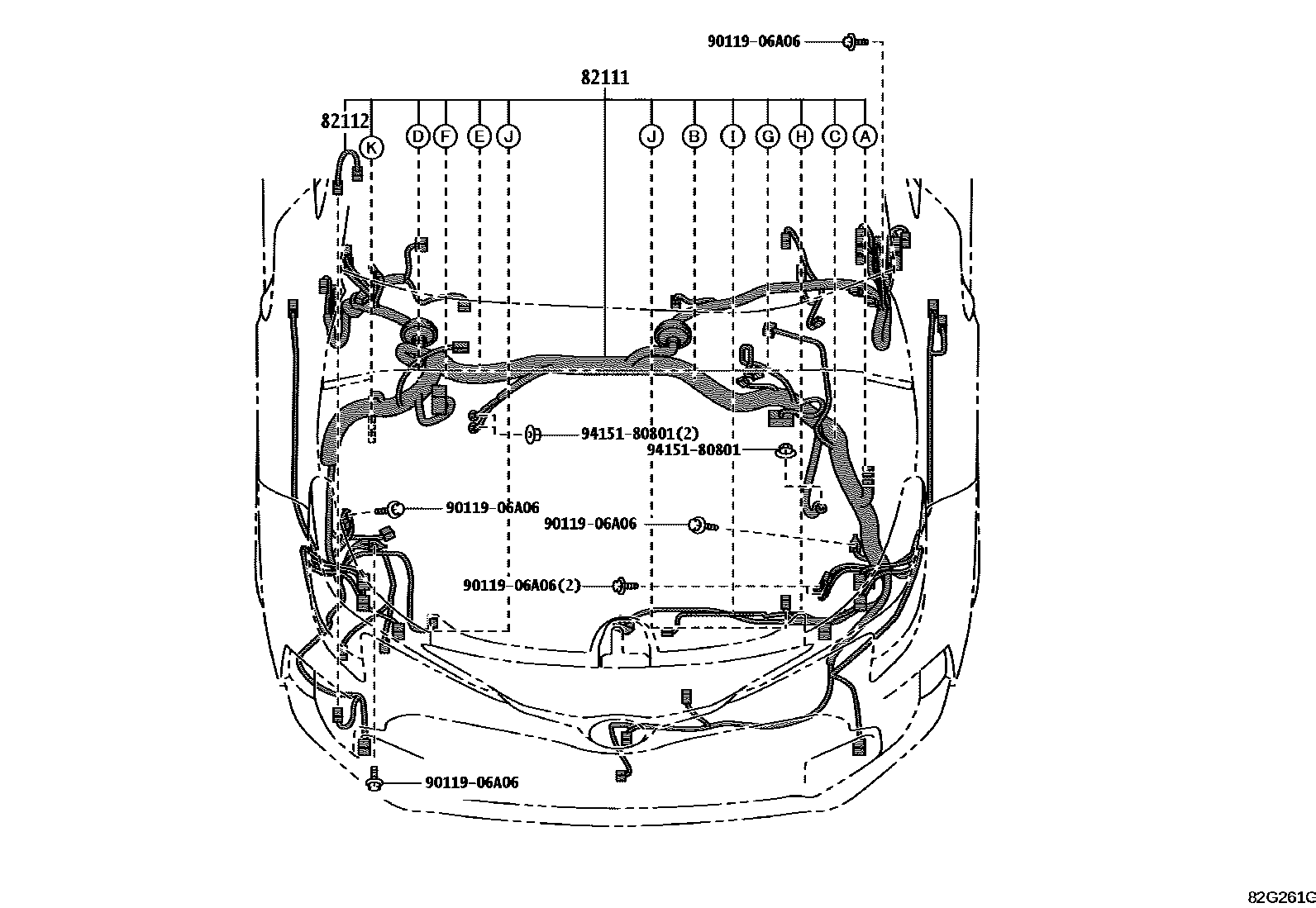

82111WIRE, ENGINE ROOM MAIN

main82111-1HP90iGZEA14..GEN202210-202211

main82111-1HP91iGZEA14..GEN202211-202308

main82111-1HP92iGZEA14..GEN202308-202409

main82111-1HQ00iGZEA14..RHD..05S202210-202409

main82111-1L760iGZEA14..BZ202303-202409

main82111-1LB30iGZEA14..02S202303-202304

main82111-1LC00iGZEA14..8FC..GEN202409

main82111-1LC40iGZEA14..6F..GEN202409

main82111-1LC60iGZEA14..BZ202409

main82111-1LC70iGZEA14..RHD..8FC202409

main82111-1LC90iGZEA14..RHD..6F202409

82112WIRE, ENGINE ROOM, NO.2

main82112-12240iGZEA14..GEN202211-202409

9011906A06

main90119-06A06

9415180801

main94151-80801

4 parts on this diagram · 14 diagrams in section
