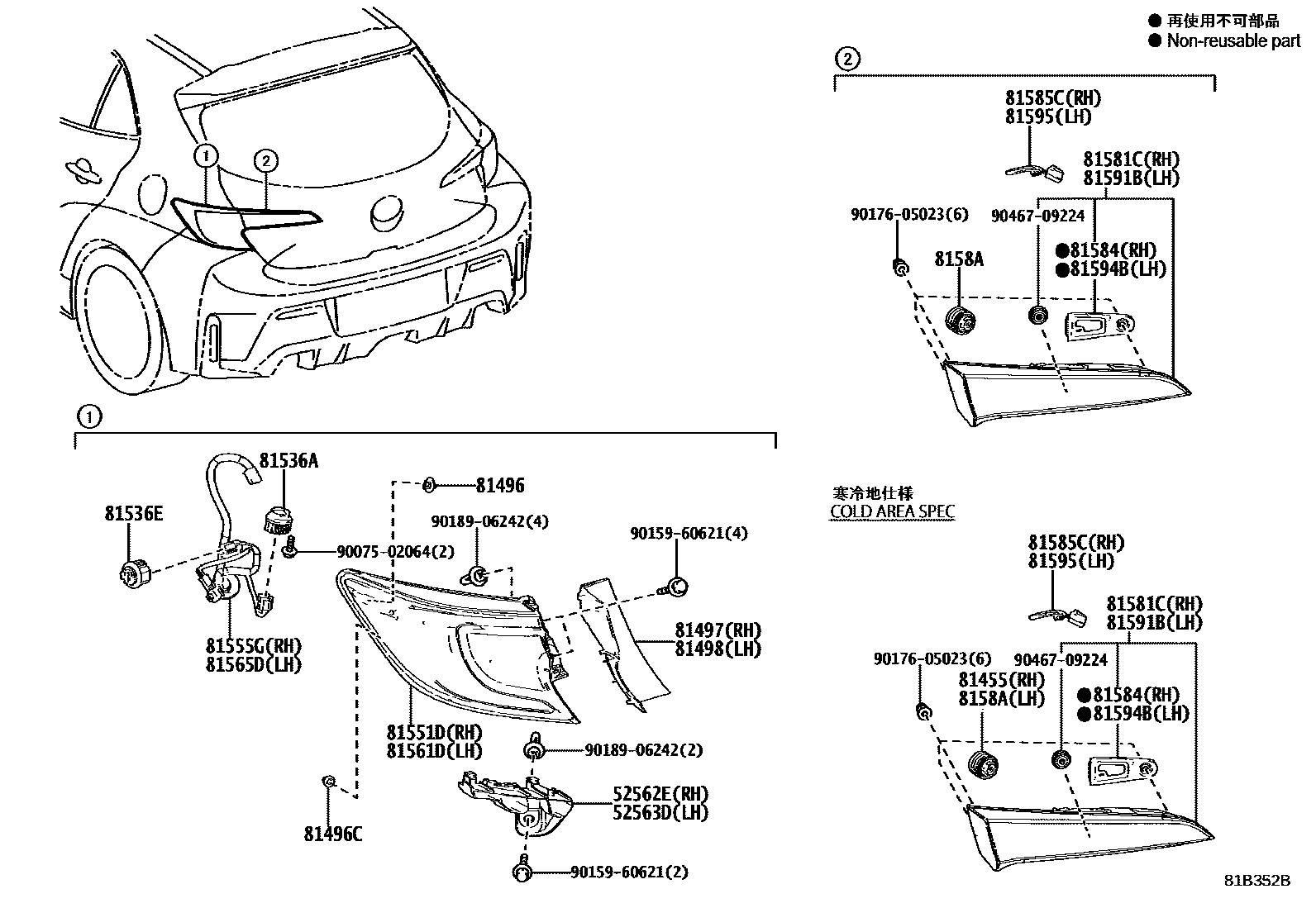

REAR COMBINATION LAMP

52562ERETAINER, REAR BUMPER, UPPER RH

main52562-12240iGZEA14202409

52563DRETAINER, REAR BUMPER, UPPER LH

main52563-12240iGZEA14202409

81455LED, REAR FOG LAMP

main8158A-0D610iGZEA14..RHD202409

81496GUIDE, REAR COMBINATION LAMP

main81496-50010×2iGZEA14202409

81496CGUIDE, REAR COMBINATION LAMP, NO.2

main81496-52020×2iGZEA14202409

81497COVER, REAR COMBINATION LAMP, RH

main81497-12020iGZEA14202409

81498COVER, REAR COMBINATION LAMP, LH

main81498-12020iGZEA14202409

81536ALED, REAR COMBINATION LAMP

main81536-12D20×2iGZEA14..ARL,BZ,MA,TH202409

main81536-12D30×2iGZEA14..GEN202409

81536ELED, STOP LAMP

main81965-70010×2iGZEA14202409

81551DLENS & BODY, REAR COMBINATION LAMP, RH

main81551-12E40iGZEA14..02S202210-202304

main81551-12E50iGZEA14..GEN202409

81555GCORD, REAR COMBINATION LAMP, RH

main81555-12D20iGZEA14..05S..(ARL,BZ,MA,TH)202210-202409

main81555-12D30iGZEA14..GEN202409

81561DLENS & BODY, REAR COMBINATION LAMP, LH

main81561-12E40iGZEA14..05S..(ARL,BZ,MA,TH)202210-202409

main81561-12E50iGZEA14..GEN202409

81565DCORD, REAR COMBINATION LAMP, LH

main81565-12D20iGZEA14..05S..(ARL,BZ,MA,TH)202210-202409

main81565-12D30iGZEA14..GEN202409

81581CLENS AND BODY, REAR LAMP, RH

main81581-12440iGZEA14..LHD202210-202409

main81581-12450iGZEA14..RHD..05S202210-202409

81584PACKING, REAR LAMP RH

main81582-12260iGZEA14..05S202210-202409

81585CSOCKET & WIRE, REAR LAMP, RH

main81585-12260iGZEA14..LHD202210-202409

main81585-12270iGZEA14..RHD..05S202210-202409

8158ALED, REAR LAMP

main8158A-12260iGZEA14..RHD202409

81591BLENS AND BODY, REAR LAMP, LH

main81591-12440iGZEA14202409

81594BPACKING, REAR LAMP LH

main81582-12260iGZEA14202409

81595SOCKET & WIRE, REAR LAMP, LH

main81585-12260iGZEA14202409

9007502064

main90075-02064

9015960621

main90159-60621

9017605023

main90176-05023

9018906242

main90189-06242

9046709224

main90467-09224

25 parts on this diagram · 1 diagram in section
