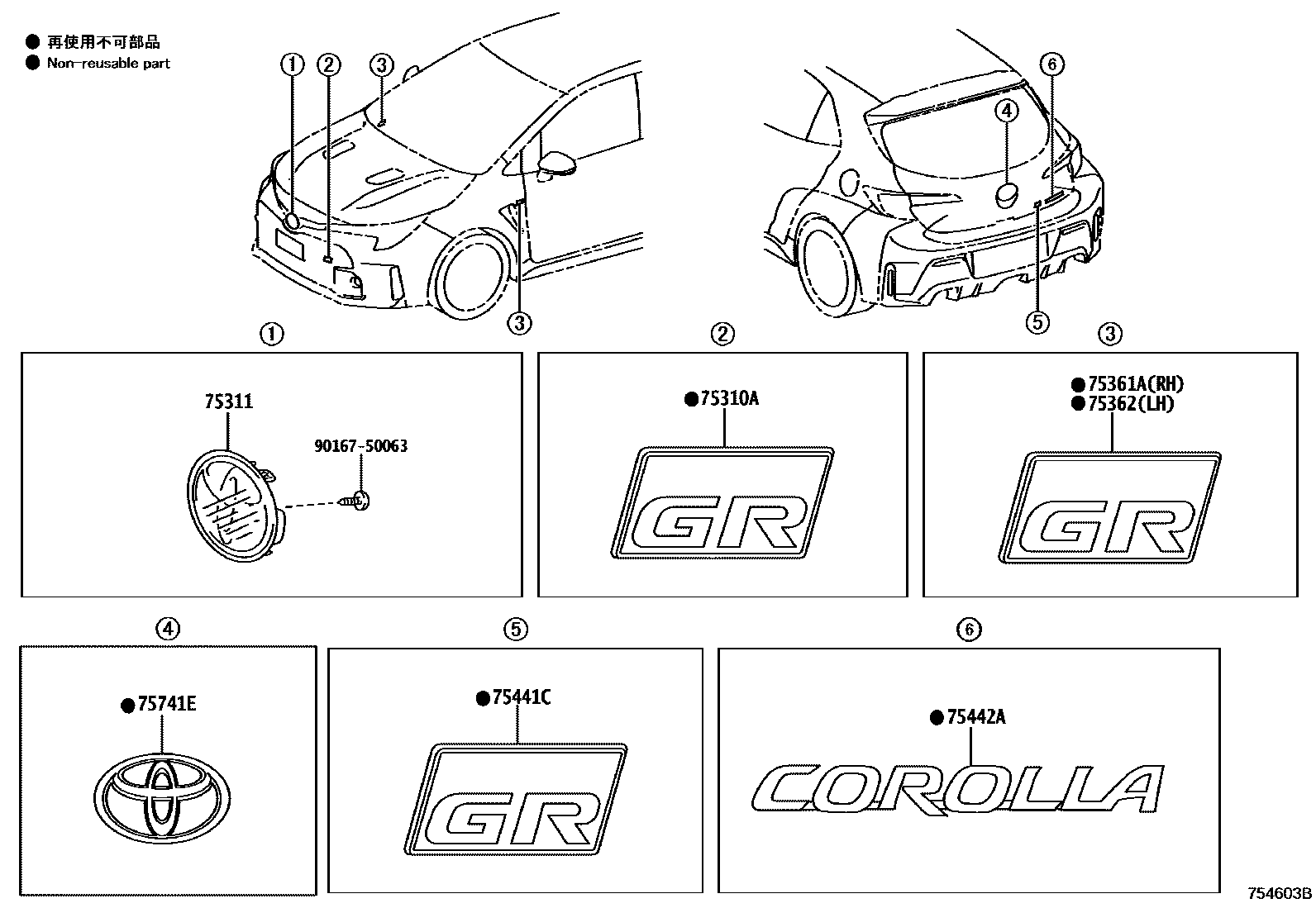

EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

75310AEMBLEM ASSY, RADIATOR GRILLE

main75310-52090iGZEA14202409

main75310-52090iGZEA14..02S;GZEA14..BZ,GEN,MA,TH202210-202409

RADIATOR LOWER GRILLE-BLACK PAINT

main75310-52090iGZEA14..02S;GZEA14..BZ,GEN,MA,TH202210-202409

RADIATOR LOWER GRILLE-BLACK PAINT&CLEARANCE & BACK SONAR-WITH

main75310-52090iGZEA14..02S;GZEA14..BZ,GEN,MA,TH202210-202409

CLEARANCE & BACK SONAR-WITH

main75310-52090iGZEA14..ARL202309-202409

COOL AIR INTAKE-WITH&RADIATOR LOWER GRILLE-BLACK PAINT

main75310-52090iGZEA14..ARL202309-202409

COOL AIR INTAKE-WITH&RADIATOR LOWER GRILLE-BLACK PAINT&CLEARANCE & BACK SONAR-WITH

main75310-52090iGZEA14..ARL202309-202409

COOL AIR INTAKE-WITH&CLEARANCE & BACK SONAR-WITH

75311EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)

main90975-02124iGZEA14202210-202409

75361APLATE, FRONT FENDER NAME, NO.1

main75361-12140iGZEA14202210-202409

GR

75362PLATE, FRONT FENDER NAME, NO.2

main75362-12240iGZEA14202210-202409

GR

75441CPLATE, BACK DOOR NAME

main75441-12B40iGZEA14202210-202409

GR

75442APLATE, BACK DOOR NAME, NO.2

main75442-12C60iGZEA14202210-202409

COROLLA

75741EEMBLEM, SYMBOL

main90975-02148iGZEA14202210-202409

9016750063

main90167-50063

8 parts on this diagram · 1 diagram in section
