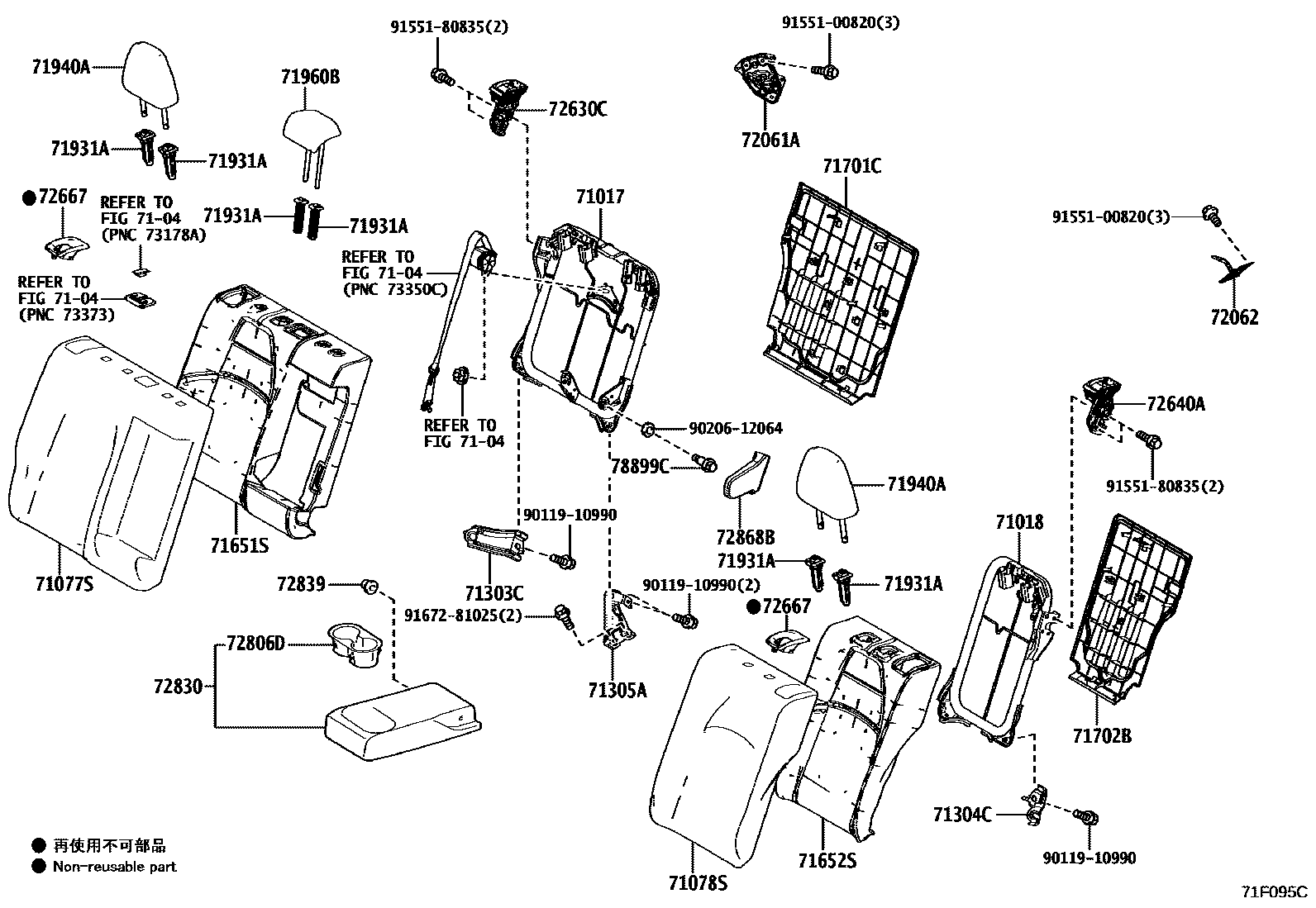

REAR SEAT & SEAT TRACK

0001 1SEAT BACK 0002 1SEAT CUSHION

71017FRAME SUB-ASSY, REAR SEATBACK, RH

main71017-12C20iGZEA14..05S202210-202409

71018FRAME SUB-ASSY, REAR SEATBACK, LH

main71018-12540iGZEA14202210-202409

7104

71077SCOVER, REAR SEATBACK, RH (FOR SEPARATE TYPE)

main71077-1AA20-23iGZEA14..BZ,GEN,MA,TH202210-202309

HIGH GRADE PACKAGE&SEAT COVER MATERIAL-SUEDE,BLACK/GRAY,TRIM2#

main71077-1AA20-23iGZEA14..BZ,GEN,MA,TH202409

BLACK/GRAY,TRIM2#

main71077-1AA20-23iGZEA14..BZ,GEN,MA,TH202309-202409

HIGH GRADE PACKAGE&SEAT COVER MATERIAL-SUEDE,BLACK/GRAY,TRIM20

main71077-1AA20-24iGZEA14..BZ,GEN,MA,TH202409

BLACK/RED,TRIM3#

main71077-1AA20-24iGZEA14..BZ,GEN,MA,TH202210-202409

HIGH GRADE PACKAGE&SEAT COVER MATERIAL-SUEDE,BLACK/RED,TRIM3#

main71077-1AA20-25iGZEA14..BZ,GEN,MA,TH202309-202409

HIGH GRADE PACKAGE&SEAT COVER MATERIAL-SUEDE,BLACK/BLUE NO.121,TRIM21

main71077-1AA50-C4iGZEA14..05S..ARL202210-202409

BLACK/GRAY,TRIM2#

main71077-1AA60-22iGZEA14..05S..ARL202210-202309

SEAT COVER MATERIAL-SUEDE,BLACK/GRAY,TRIM2#

main71077-1AA60-22iGZEA14..ARL202409

BLACK/GRAY,TRIM2#

main71077-1AA60-22iGZEA14..ARL202309-202409

SEAT COVER MATERIAL-SUEDE,BLACK/GRAY,TRIM20

main71077-1AA60-23iGZEA14..ARL202409

BLACK/RED,TRIM3#

main71077-1AA60-23iGZEA14..05S..ARL202210-202409

SEAT COVER MATERIAL-SUEDE,BLACK/RED,TRIM3#

main71077-1AA60-24iGZEA14..ARL202309-202409

SEAT COVER MATERIAL-SUEDE,BLACK/BLUE NO.121,TRIM21

main71077-1AF80-C1iGZEA14..BZ,GEN,MA,TH202210-202409

BLACK/GRAY,TRIM2#

71078SCOVER, REAR SEATBACK, LH(FOR SEPARATE TYPE)

main71078-12T60-C7iGZEA14..05S202210-202409

BLACK/GRAY,TRIM2#

main71078-12T70-21iGZEA14..ARL202309-202409

SEAT COVER MATERIAL-SUEDE,BLACK/GRAY,TRIM20

main71078-12T70-21iGZEA14202409

BLACK/GRAY,TRIM2#

main71078-12T70-21iGZEA14..BZ,GEN,MA,TH202210-202309

HIGH GRADE PACKAGE&SEAT COVER MATERIAL-SUEDE,BLACK/GRAY,TRIM2#

main71078-12T70-21iGZEA14..BZ,GEN,MA,TH202210-202309

SEAT COVER MATERIAL-SUEDE,BLACK/GRAY,TRIM2#

main71078-12T70-21iGZEA14..BZ,GEN,MA,TH202309-202409

HIGH GRADE PACKAGE&SEAT COVER MATERIAL-SUEDE,BLACK/GRAY,TRIM20

main71078-12T70-22iGZEA14..05S..ARL202210-202409

SEAT COVER MATERIAL-SUEDE,BLACK/RED,TRIM3#

main71078-12T70-22iGZEA14202409

BLACK/RED,TRIM3#

main71078-12T70-22iGZEA14..BZ,GEN,MA,TH202210-202409

HIGH GRADE PACKAGE&SEAT COVER MATERIAL-SUEDE,BLACK/RED,TRIM3#

main71078-12T70-23iGZEA14..ARL202309-202409

HIGH GRADE PACKAGE&SEAT COVER MATERIAL-SUEDE,BLACK/BLUE NO.121,TRIM21

main71078-12T70-23iGZEA14..BZ,GEN,MA,TH202309-202409

SEAT COVER MATERIAL-SUEDE,BLACK/BLUE NO.121,TRIM21

71303CHINGE SUB-ASSY, REAR SEATBACK, RH

main71303-12230iGZEA14202210-202409

71304CHINGE SUB-ASSY, REAR SEATBACK, LH

main71304-12100iGZEA14202210-202409

71305AHINGE SUB-ASSY, REAR SEATBACK, CENTER

main71305-47040iGZEA14202210-202409

71651SPAD, REAR SEATBACK, RH(FOR SEPARATE TYPE)

main71651-12B90iGZEA14..05S202210-202409

71652SPAD, REAR SEATBACK, LH(FOR SEPARATE TYPE)

main71652-12A20iGZEA14..05S202210-202409

71701CBOARD SUB-ASSY, REAR SEATBACK, RH

main71701-12010iGZEA14202210-202409

71702BBOARD SUB-ASSY, REAR SEATBACK, LH

main71702-12010iGZEA14202210-202409

71931ASUPPORT, REAR SEAT HEADREST

main71930-47050-C5iGZEA14202210-202409

W(LOCK),BLACK,TRIM2#,3#

main71931-47030-C4iGZEA14..05S202210-202409

W/O(LOCK),BLACK,TRIM2#,3#

71940AHEADREST ASSY, REAR SEAT

main71940-12G80-C5iGZEA14..05S202210-202409

BLACK/GRAY,TRIM2#

main71940-12G90-C7iGZEA14..05S..ARL202210-202409

HIGH GRADE PACKAGE&SEAT COVER MATERIAL-SUEDE,BLACK/RED,TRIM3#

main71940-12G90-C7iGZEA14..05S..ARL202210-202409

SEAT COVER MATERIAL-SUEDE,BLACK/RED,TRIM3#

main71940-12G90-C7iGZEA14202409

BLACK/RED,TRIM3#

main71940-12G90-C8iGZEA14..ARL202309-202409

SEAT COVER MATERIAL-SUEDE,BLACK/GRAY,TRIM20

main71940-12G90-C8iGZEA14202409

BLACK/GRAY,TRIM2#

main71940-12G90-C8iGZEA14..BZ,GEN,MA,TH202210-202309

HIGH GRADE PACKAGE&SEAT COVER MATERIAL-SUEDE,BLACK/GRAY,TRIM2#

main71940-12G90-C8iGZEA14..BZ,GEN,MA,TH202210-202309

SEAT COVER MATERIAL-SUEDE,BLACK/GRAY,TRIM2#

main71940-12G90-C8iGZEA14..BZ,GEN,MA,TH202309-202409

HIGH GRADE PACKAGE&SEAT COVER MATERIAL-SUEDE,BLACK/GRAY,TRIM20

main71940-12G90-C9iGZEA14..ARL202309-202409

SEAT COVER MATERIAL-SUEDE,BLACK/BLUE NO.121,TRIM21

main71940-12G90-C9iGZEA14..BZ,GEN,MA,TH202309-202409

HIGH GRADE PACKAGE&SEAT COVER MATERIAL-SUEDE,BLACK/BLUE NO.121,TRIM21

71960BHEADREST ASSY, REAR SEAT, CENTER

main71960-12C60-C4iGZEA14..05S202210-202409

BLACK,TRIM2#

main71960-12C70-C3iGZEA14202409

BLACK,TRIM2#,3#

main71960-12C70-C3iGZEA14..BZ,GEN,MA,TH202210-202409

HIGH GRADE PACKAGE&SEAT COVER MATERIAL-SUEDE,BLACK,TRIM2#,3#

main71960-12C70-C3iGZEA14..BZ,GEN,MA,TH202210-202409

SEAT COVER MATERIAL-SUEDE,BLACK,TRIM2#,3#

72061ABASE SUB-ASSY, REAR SEATBACK LOCK, RH

main72061-12020iGZEA14202210-202409

72062BASE SUB-ASSY, REAR SEATBACK LOCK, LH

main72062-12020iGZEA14202210-202409

72630CLOCK ASSY, REAR SEATBACK, RH

main72630-47050-C2iGZEA14202210-202409

BLACK,TRIM2#,3#

sub72630-47050

72640ALOCK ASSY, REAR SEATBACK, LH

main72640-47050-C2iGZEA14202210-202409

BLACK,TRIM2#,3#

sub72640-47050

72667BEZEL, REAR SEATBACK LOCK, UPPER

main72667-47010-C1iGZEA14202210-202409

BLACK,TRIM2#,3#

72806DHOLDER SUB-ASSY, REAR SEAT CENTER ARMREST CUP

main72806-47010-C1iGZEA14..05S202210-202409

BLACK,TRIM2#

main72806-47010-C1iGZEA14202409

BLACK,TRIM2#,3#

72830ARMREST ASSY, REAR SEAT, CENTER

main72830-12C50-C3iGZEA14..05S202210-202409

BLACK,TRIM2#

main72830-12C60-C2iGZEA14202409

BLACK,TRIM2#,3#

main72830-12C60-C2iGZEA14..BZ,GEN,MA,TH202210-202409

HIGH GRADE PACKAGE&SEAT COVER MATERIAL-SUEDE,BLACK,TRIM2#,3#

main72830-12C60-C2iGZEA14..BZ,GEN,MA,TH202210-202409

SEAT COVER MATERIAL-SUEDE,BLACK,TRIM2#,3#

72839SHIM, REAR SEAT ARMREST HINGE

main72839-22010iGZEA14..05S202210-202409

72868BCOVER, CENTER ARMREST HINGE

main72868-12080-C0iGZEA14202409

BLACK,TRIM2#,3#

main72868-12080-C0iGZEA14..05S202210-202409

BLACK,TRIM2#

78899CBOLT, REAR SUB SEAT

main78899-60070iGZEA14202210-202409

9011910990

main90119-10990

9020612064

main90206-12064

9155100820

main91551-00820

9155180835

main91551-80835

9167281025

main91672-81025

30 parts on this diagram · 2 diagrams in section
