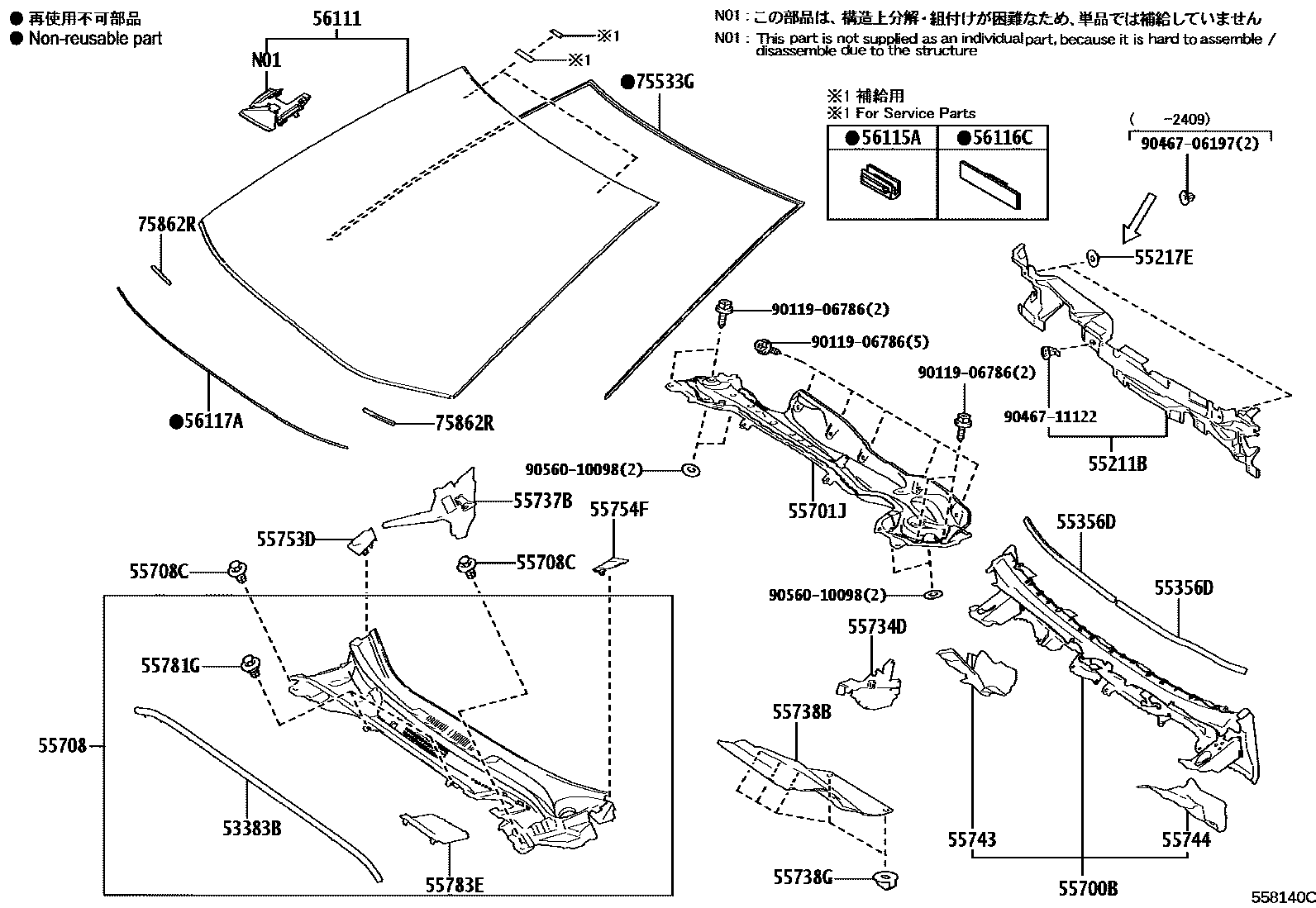

COWL PANEL & WINDSHIELD GLASS
53383BSEAL, HOOD TO COWL TOP
55211BSILENCER, FRONT PANEL
55217ERETAINER, DASH PANEL SILENCER
55356DCUSHION, INSTRUMENT PANEL, NO.2
55701JPANEL SUB-ASSY, COWL TOP, OUTER
55708LOUVER SUB-ASSY, COWL TOP VENTILATOR
55708CCLIP, COWL TOP VENTILATOR LOUVER
55734DPLATE, WATER GUARD
55737BSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1
55738BPROTECTOR, FRONT PANEL COVER, NO.1
55738GCLIP, FRONT PANEL COVER PROTECTOR
BLACK
55743PANEL, COWL TOP OUTSIDE CORNER, RH
55744PANEL, COWL TOP OUTSIDE CORNER, LH
55753DSHIELD, COWL WATER EXTRACT, RH
55754FSHIELD, COWL WATER EXTRACT, LH
55781GCLIP, COWL TOP VENTILATOR LOUVER
55783ELOUVER, COWL TOP VENTILATOR, CENTER
56111GLASS, WINDSHIELD
HEAD UP DISPLAY-WITH
HEAD UP DISPLAY-WITH
56115ASTOPPER, WINDSHIELD GLASS, NO.1
CFRP ROOF-WITH
56116CSTOPPER, WINDSHIELD GLASS, NO.2
CFRP ROOF-WITH
56117ADAM, WINDOW GLASS ADHESIVE
*D,L=1298 OR 725
*D,L=1298 OR 725,HEAD UP DISPLAY-WITH
75533GMOULDING, WINDSHIELD, OUTSIDE
CFRP ROOF-WITH
75862RPROTECTOR, ROCKER PANEL MOULDING, NO.2
9011906786
main90119-06786
9046706197
main90467-06197
9046711122
main90467-11122
9056010098
main90560-10098
28 parts on this diagram · 2 diagrams in section
