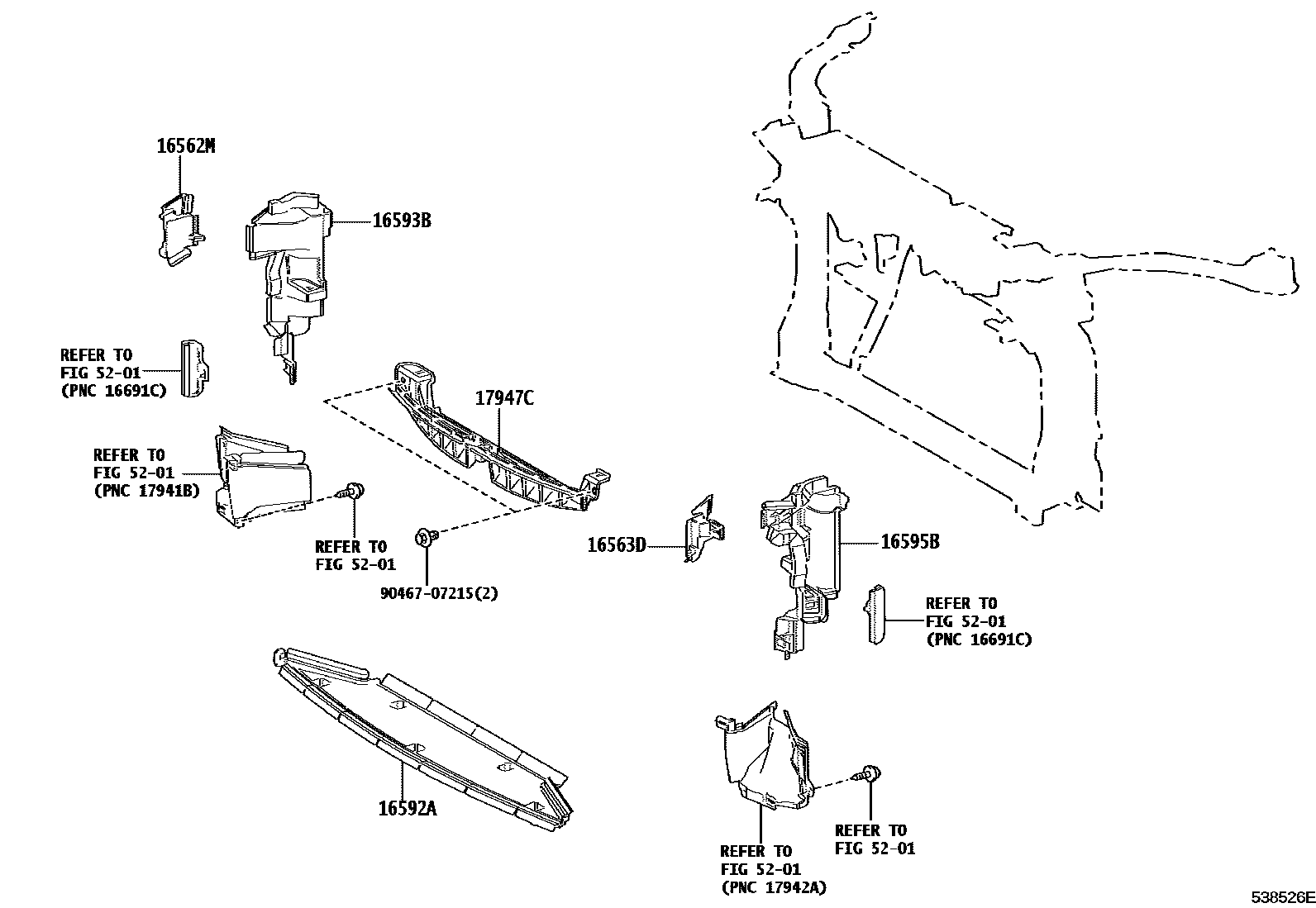

FRONT FENDER APRON & DASH PANEL

0001 1AIRGUIDE & RADIATOR SUPPORT C0002 1RADIATOR SUPPORT & FENDER APR0003 1DASH PANEL 0004 1DASH PANEL

16562MSEAL, RADIATOR TO SUPPORT, NO.2

main16562-18030iG16EGTS..GZEA14..02S202210-202304

main16562-18060iG16EGTS..GZEA14202409

16563DSEAL, RADIATOR TO SUPPORT, NO.3

main16563-18010iG16EGTS..GZEA14..02S202210-202304

main16563-18030iG16EGTS..GZEA14202409

16592AGUIDE, RADIATOR AIR, NO.3

main16592-18030iG16EGTS..GZEA14..05S202210-202409

main16592-18040iG16EGTS..GZEA14202409

16593BGUIDE, RADIATOR AIR, NO.1 RH

main16593-18030iG16EGTS..GZEA14202409

16595BGUIDE, RADIATOR AIR, NO.1 LH

main16595-18030iG16EGTS..GZEA14202409

17947CPLATE, INTERCOOLER

main17947-18010iG16EGTS..GZEA14202409

5201

9046707215

main90467-07215

8 parts on this diagram · 4 diagrams in section
