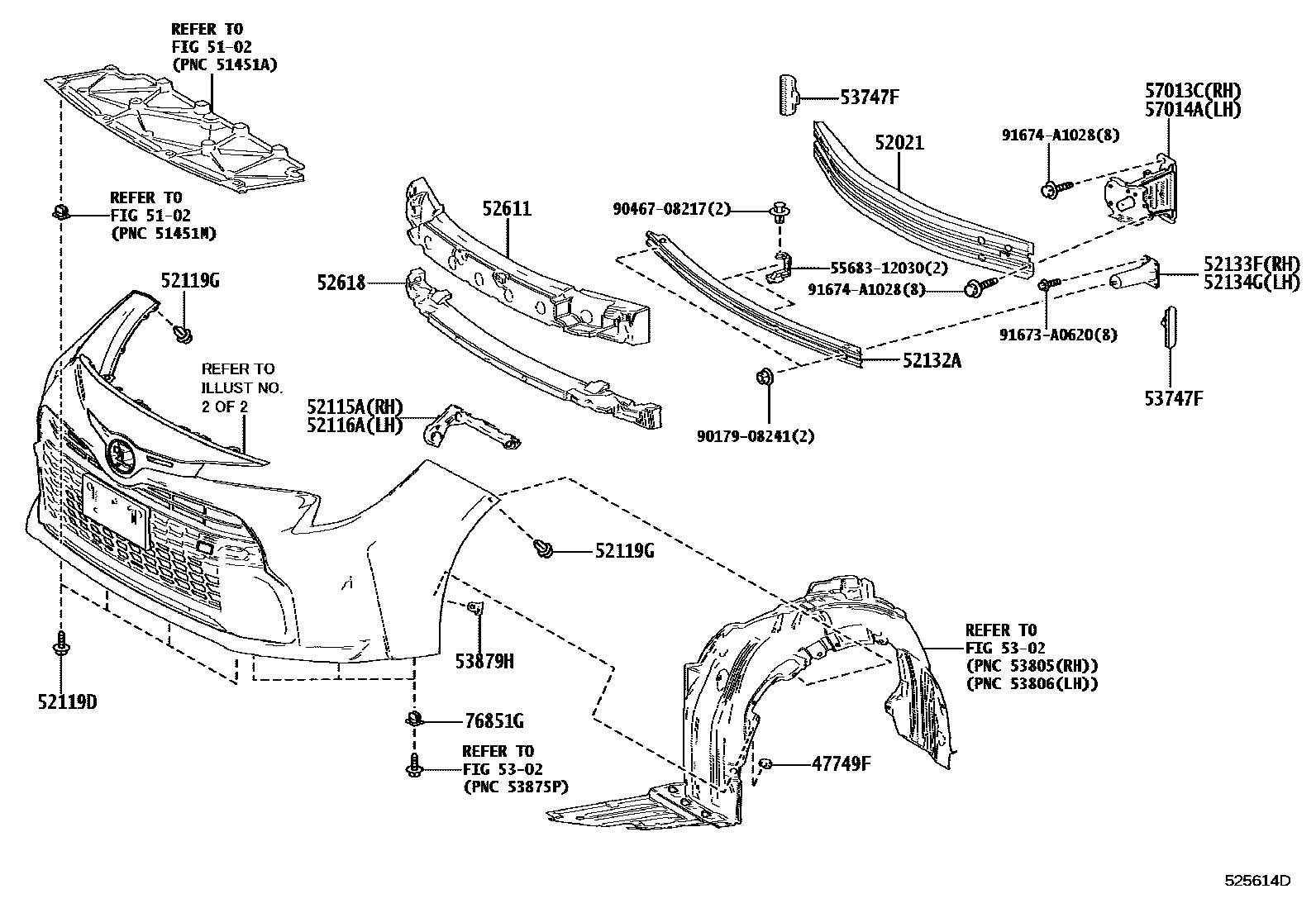

FRONT BUMPER & BUMPER STAY

0001 1 0002 1 0003 1 0004 1

47749FCLIP, PIN HOLD

main47749-30090iGZEA14202210-202409

5102

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-12400iGZEA14202210-202409

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-12500iGZEA14202210-202409

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52116-12480iGZEA14202210-202409

52119DSCREW, NO.1

main90159-60477iGZEA14202210-202409

52119GCLIP, NO.1

main90467-05170iGZEA14202210-202409

52132AREINFORCEMENT, FRONT BUMPER, NO.2

main52132-12160iGZEA14202210-202409

52133FBRACKET, FRONT BUMPER, RH

main52133-12190iGZEA14202210-202409

52134GBRACKET, FRONT BUMPER, LH

main52133-12190iGZEA14202210-202409

52611ABSORBER, FRONT BUMPER ENERGY

main52611-12390iGZEA14202210-202409

52618ABSORBER, FRONT BUMPER, LOWER

main52618-12080iGZEA14..02S202210-202409

main52618-12140iGZEA14202409

5302

53747FPLATE, AIR SEALED

main16691-37020iGZEA14202210-202409

53879HRETAINER, FRONT FENDER LINER

main53879-30090iGZEA14202210-202409

57013CBRACKET SUB-ASSY, FRONT SIDE MEMBER, RH

main57013-12080iGZEA14202210-202409

57014ABRACKET SUB-ASSY, FRONT SIDE MEMBER, LH

main57014-12080iGZEA14202210-202409

76851GGROMMET, SCREW, NO.1

main90189-06237iGZEA14202210-202409

5568312030SUPPORT, INSTRUMENT REGISTER, NO.3

main55683-12030

9017908241

main90179-08241

9046708217

main90467-08217

91673A0620

main91673-A0620

91674A1028

main91674-A1028

23 parts on this diagram · 4 diagrams in section
