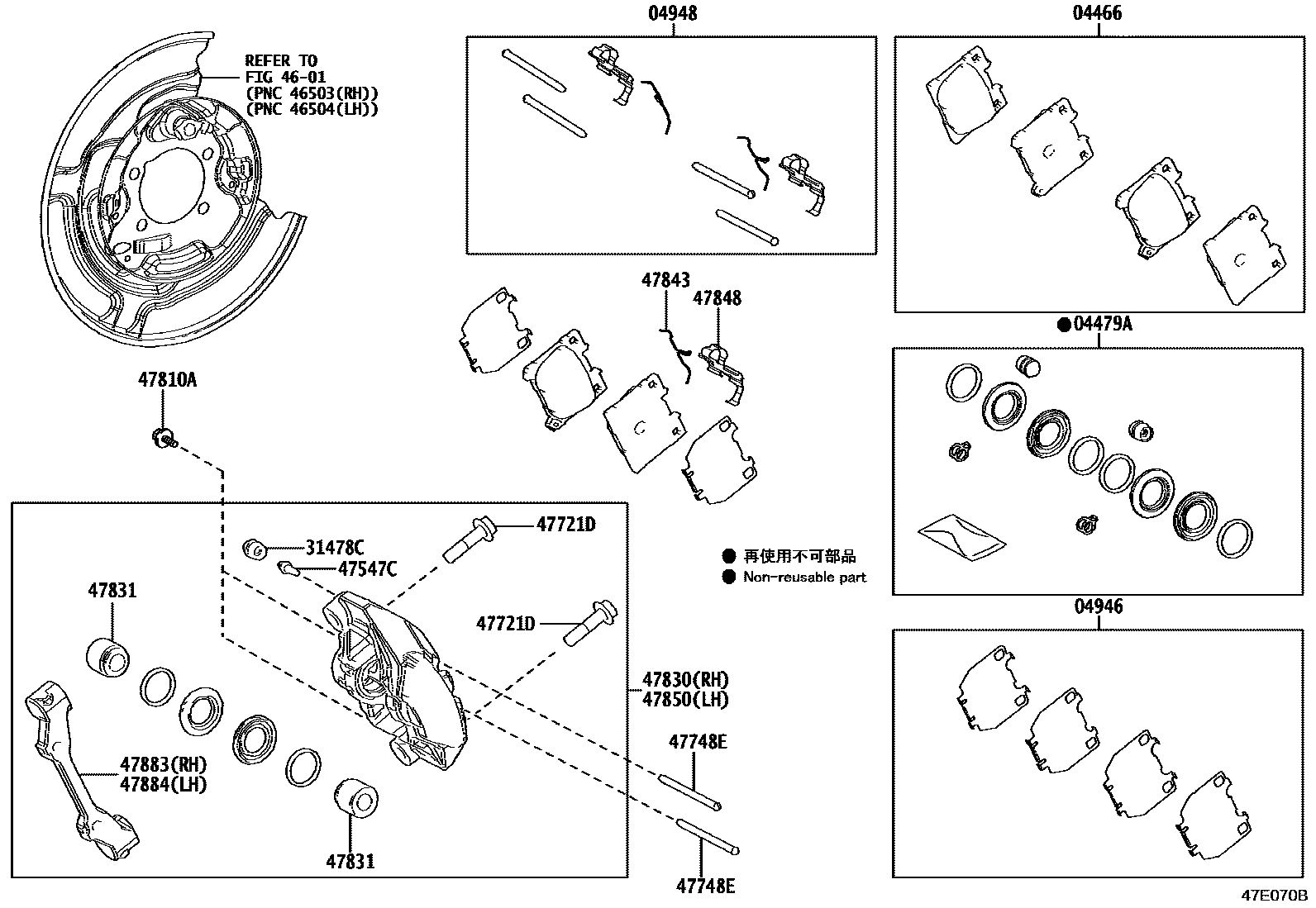

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-52200iGZEA14202210-202409

MARK AK NS380H

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-52280iGZEA14202210-202409

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-52120iGZEA14202210-202409

04948FITTING KIT, DISC BRAKE, REAR

main04948-52050iGZEA14202210-202409

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-50020iGZEA14202210-202409

4601

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-35020iGZEA14202210-202409

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main90015-AA604iGZEA14202210-202409

*12-1.25PX48.1-23.6

47748EPIN, W/HOLE(FOR REAR DISC BRAKE)

main47735-52310iGZEA14202210-202409

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90105-12174iGZEA14202210-202409

47830CYLINDER ASSY, DISC BRAKE, REAR RH

main47830-52250iGZEA14202210-202409

main47830-52250iGZEA14..BZ202303-202409

FRONT WHEEL BRAKE-18INCHES DISC(RED PAINTED)

main47830-52270iGZEA14..BZ202303-202409

47831PISTON, REAR DISC BRAKE

main47731-18030iGZEA14202210-202409

47843CLIP, REAR DISC BRAKE PIN HOLD

main47843-52250iGZEA14202210-202409

47848SPRING, ANTI-RATTLE, NO.1(FOR REAR DISC BRAKE)

main47848-52250iGZEA14202210-202409

47850CYLINDER ASSY, DISC BRAKE, REAR LH

main47850-52250iGZEA14202210-202409

main47850-52250iGZEA14..BZ202303-202409

FRONT WHEEL BRAKE-18INCHES DISC(RED PAINTED)

main47850-52270iGZEA14..BZ202303-202409

47883BRACKET, CALIPER SUPPORT, REAR RH

main47883-52040iGZEA14202210-202409

47884BRACKET, CALIPER SUPPORT, REAR LH

main47883-52040iGZEA14202210-202409

17 parts on this diagram · 1 diagram in section
