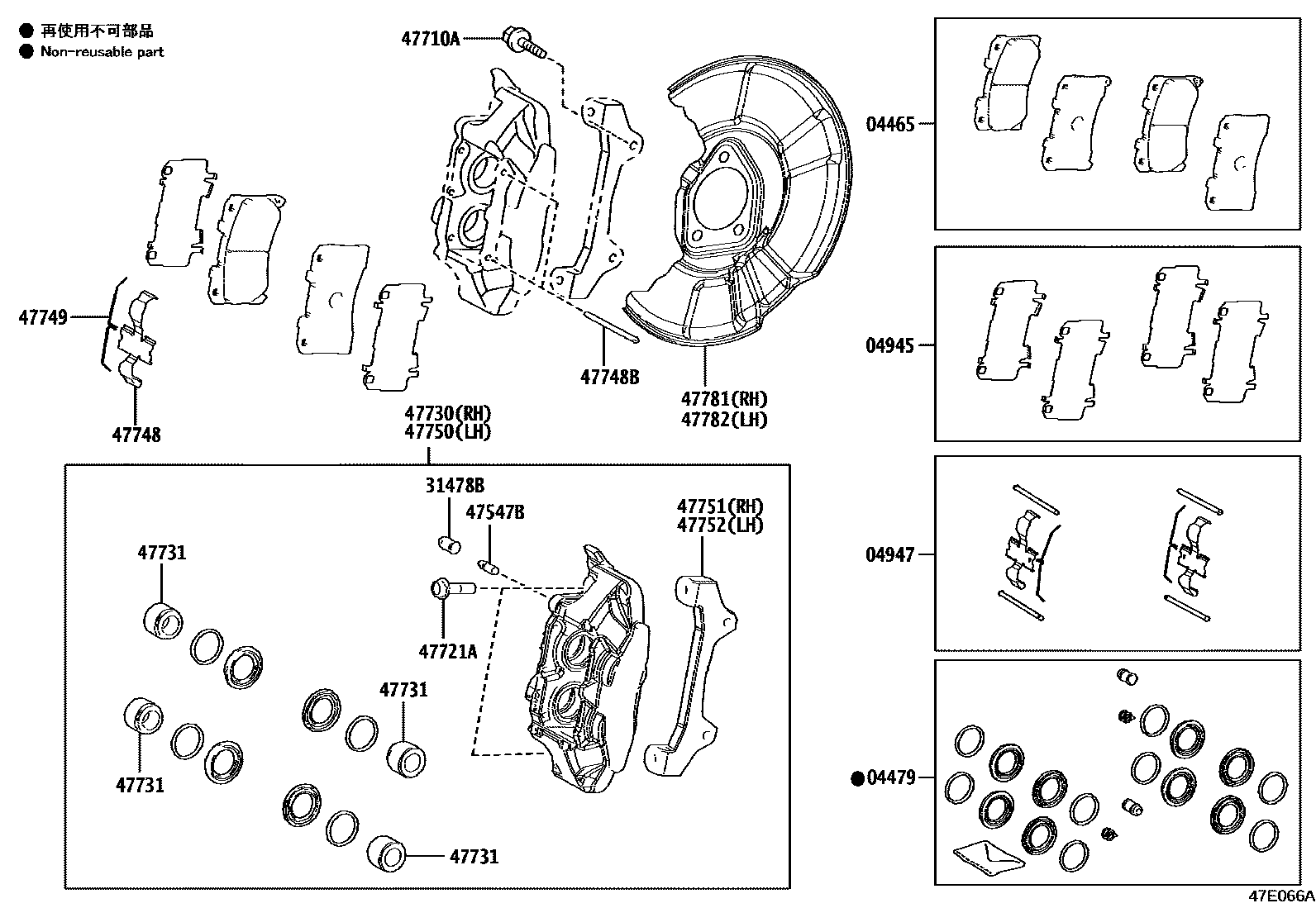

FRONT DISC BRAKE CALIPER & DUST COVER

04465PAD KIT, DISC BRAKE, FRONT

main04465-52370iGZEA14202409

MARK AK NS380H

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-52270iGZEA14202409

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-52210iGZEA14202409

04947FITTING KIT, DISC BRAKE, FRONT

main04947-52080iGZEA14202409

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-14010×2iGZEA14202409

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-50010×2iGZEA14202409

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12208×4iGZEA14202409

*12-1.25PX29.5-23

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90015-AA604×4iGZEA14202409

*12-1.25PX48.1-23.6

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-52350supersedes 47730-52370iGZEA14202409

47731PISTON, FRONT DISC BRAKE

main47731-52350×8iGZEA14202409

47748SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE)

main47748-52350×2iGZEA14202409

47748BPIN, W/HOLE(FOR FRONT DISC BRAKE ANTI-RATTLE)

main47735-60300×4iGZEA14202409

47749CLIP, PIN HOLD

main90468-12015×2iGZEA14202409

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-52400supersedes 47750-52420iGZEA14202409

47751BRACKET, CALIPER SUPPORT, RH

main47751-52010iGZEA14202409

47752BRACKET, CALIPER SUPPORT, LH

main47751-52010iGZEA14202409

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-52060iGZEA14202409

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-52060iGZEA14202409

18 parts on this diagram · 1 diagram in section
