TRANSMISSION GEAR (MTM)
33037BRING SET, SYNCHRONIZER, NO.1
33038ERING SET, SYNCHRONIZER, NO.2
33047RING SET, SYNCHRONIZER, NO.4
33134BCOVER, OUTPUT SHAFT(MTM)
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
NO.3:REFER ILLUST.
33311ABEARING (FOR INPUT SHAFT FRONT)
33311EBEARING, RADIAL BALL (FOR INPUT SHAFT REAR)
33311FSPACER (FOR INPUT SHAFT)
33311PRING, SHAFT SNAP (FOR INPUT SHAFT REAR BEARING)
33311TRING, SHAFT SNAP (FOR INPUT SHAFT)
T=1.80,MARK A
T=1.85,MARK B
T=1.90,MARK C
T=1.95,MARK D
T=2.00,MARK E
T=2.40,MARK F
T=2.45,MARK G
T=2.50,MARK H
T=2.05,MARK 0
T=2.10,MARK 1
T=2.15,MARK 2
T=2.20,MARK 3
T=2.25,MARK 4
T=2.30,MARK 5
T=2.35,MARK 6
33311YRING, SHAFT SNAP (FOR INPUT SHAFT REAR BEARING)
T=1.5
33321ABEARING (FOR OUTPUT SHAFT REAR)
33321CRING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING)
T=1.85,MARK B
T=1.90,MARK C
T=1.95,MARK D
T=2.00,MARK E
T=2.05,MARK 0
T=2.10,MARK 1
T=2.15,MARK 2
33321HSHIM (FOR OUTPUT SHAFT REAR BEARING)
T=1.80,MARK A,NO.1:REFER ILLUST.
T=1.85,MARK B,NO.1:REFER ILLUST.
T=1.90,MARK C,NO.1:REFER ILLUST.
T=1.95,MARK D,NO.1:REFER ILLUST.
T=2.00,MARK E,NO.1:REFER ILLUST.
T=2.05,MARK F,NO.1:REFER ILLUST.
T=2.10,MARK G,NO.1:REFER ILLUST.
T=2.15,MARK H,NO.1:REFER ILLUST.
T=2.20,MARK J,NO.1:REFER ILLUST.
T=2.25,MARK K,NO.1:REFER ILLUST.
T=2.30,MARK L,NO.1:REFER ILLUST.
T=2.35 MARK M,NO.1:REFER ILLUST.
T=2.40,MARK N,NO.1:REFER ILLUST.
T=2.45,MARK P,NO.1:REFER ILLUST.
T=2.50,MARK Q,NO.1:REFER ILLUST.
T=2.55,MARK R,NO.1:REFER ILLUST.
T=2.60,MARK S,NO.1:REFER ILLUST.
T=2.65,MARK T,NO.1:REFER ILLUST.
T=1.67,MARK A,NO.2:REFER ILLUST.
T=1.72,MARK B,NO.2:REFER ILLUST.
T=1.77,MARK C,NO.2:REFER ILLUST.
T=1.82,MARK D,NO.2:REFER ILLUST.
T=1.87,MARK E,NO.2:REFER ILLUST.
T=1.92,MARK F,NO.2:REFER ILLUST.
T=1.97,MARK G,NO.2:REFER ILLUST.
T=2.02 MARK H,NO.2:REFER ILLUST.
T=2.07,MARK J,NO.2:REFER ILLUST.
T=2.12,MARK K,NO.2:REFER ILLUST.
T=2.17,MARK L,NO.2:REFER ILLUST.
T=2.22,MARK M,NO.2:REFER ILLUST.
T=2.27,MARK N,NO.2:REFER ILLUST.
T=2.32,MARK P,NO.2:REFER ILLUST.
T=2.37,MARK Q,NO.2:REFER ILLUST.
T=2.42,MARK R,NO.2:REFER ILLUST.
T=2.47,MARK S,NO.2:REFER ILLUST.
T=2.52,MARK T,NO.2:REFER ILLUST.
33321NBEARING (FOR OUTPUT SHAFT FRONT)
33322SHAFT, OUTPUT, NO.2
33322ABEARING (FOR OUTPUT SHAFT NO.2 REAR)
33322BBEARING (FOR OUTPUT SHAFT NO.2 FRONT)
33322CRING, SNAP (FOR OUTPUT SHAFT NO.2 BEARING)
T=1.85,MARK B
T=1.90,MARK C
T=1.95,MARK D
T=2.00,MARK E
T=2.05,MARK 0
T=2.10,MARK 1
T=2.15,MARK 2
33322DCOLLAR (FOR OUTPUT SHAFT)
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
33326PLATE, BEARING LOCK
33326ABOLT (FOR BEARING LOCK PLATE)
33327SLEEVE, TRANSMISSION HUB, NO.4
33331GEAR, REVERSE
33331ABEARING (FOR REVERSE GEAR)
33332GEAR, 2ND
33332BBEARING, NEEDLE ROLLER (FOR 2ND GEAR)
33333GEAR, 3RD
33333ABEARING, NEEDLE ROLLER (FOR 3RD GEAR)
33334GEAR, 4TH
33334ABEARING, NEEDLE ROLLER (FOR 4TH GEAR)
33334BSPACER (FOR 4TH GEAR BEARING)
33335CBEARING, NEEDLE ROLLER(FOR 1ST GEAR)
33336ABEARING, NEEDLE ROLLER (FOR 5TH GEAR)
33336BSPACER (FOR 5TH GEAR BEARING)
33337GEAR SUB-ASSY, 6TH
33337ABEARING, NEEDLE ROLLER (FOR 6TH GEAR)
33352BHUB, TRANSMISSION CLUTCH, NO.4
33352CRING, SHAFT SNAP
T=2.25,MARK A
T=2.30,MARK B
T=2.35,MARK C
T=2.40,MARK D
T=2.45,MARK E
T=2.50,MARK F
T=2.55,MARK G
T=2.60,MARK H
33356ARACE, 2ND GEAR BEARING INNER
33356BBALL, 2ND GEAR BEARING INNER RACE LOCK
33356CRING, SNAP (FOR 2ND GEAR BEARING INNER RACE)
T=2.25,MARK A
T=2.30,MARK B
T=2.35,MARK C
T=2.40,MARK D
T=2.45,MARK E
T=2.50,MARK F
T=2.55,MARK G
T=2.60,MARK H
33361HUB, TRANSMISSION CLUTCH, NO.1
33361BRING, SHAFT SNAP (FOR CLUTCH HUB NO.1)
T=2.25,MARK 1
T=2.30,MARK 2
T=2.35,MARK 3
T=2.40,MARK 4
T=2.45,MARK 5
T=2.50,MARK 6
33362HUB, TRANSMISSION CLUTCH, NO.2
33362ARING, SHAFT SNAP (FOR CLUTCH HUB NO.2 SETTING)
T=2.25,MARK 1
T=2.30,MARK 2
T=2.35,MARK 3
T=2.40,MARK 4
T=2.45,MARK 5
T=2.50,MARK 6
33363SLEEVE, TRANSMISSION HUB, NO.1
33364SLEEVE, TRANSMISSION HUB, NO.2
33365KEY, SYNCHROMESH SHIFTING, NO.1
33365CBALL(FOR SYNCHROMESH SHIFTING KEY)
33368JRING, SYNCHRONIZER (FOR 5TH GEAR)
33369BRING, SYNCHRONIZER, NO.4
33371SPRING, SYNCHROMESH SHIFTING KEY, NO.1
33392SPRING, SYNCHROMESH SHIFTING KEY, NO.3
33393HUB, TRANSMISSION CLUTCH, NO.3
33394KEY, SYNCHROMESH SHIFTING, NO.3
33395SLEEVE, TRANSMISSION HUB, NO.3
33402GEAR SUB-ASSY, REVERSE IDLER
33422BGEAR, 4TH DRIVEN
33423AGEAR, 3RD DRIVEN
33428CGEAR, 5TH DRIVEN
33429BGEAR, 6TH DRIVEN
33451SHAFT, REVERSE IDLER GEAR
33451HBOLT (FOR REVERSE IDLER GEAR SHAFT)
33451JGASKET (FOR REVERSE IDLER GEAR SHAFT)
33461ABEARING, REVERSE IDLER GEAR
33462WASHER, REVERSE IDLER THRUST

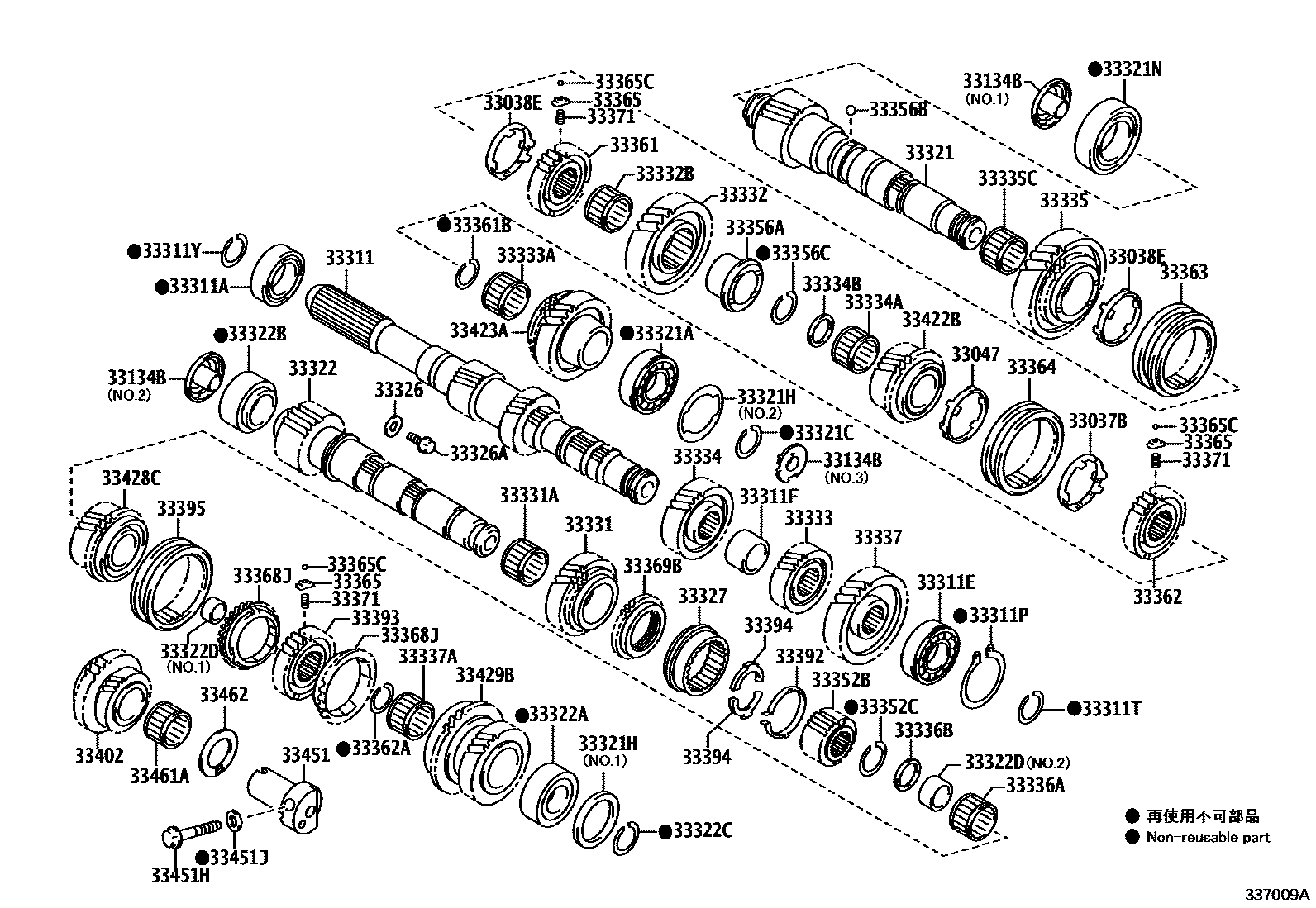

69 parts on this diagram · 1 diagram in section
