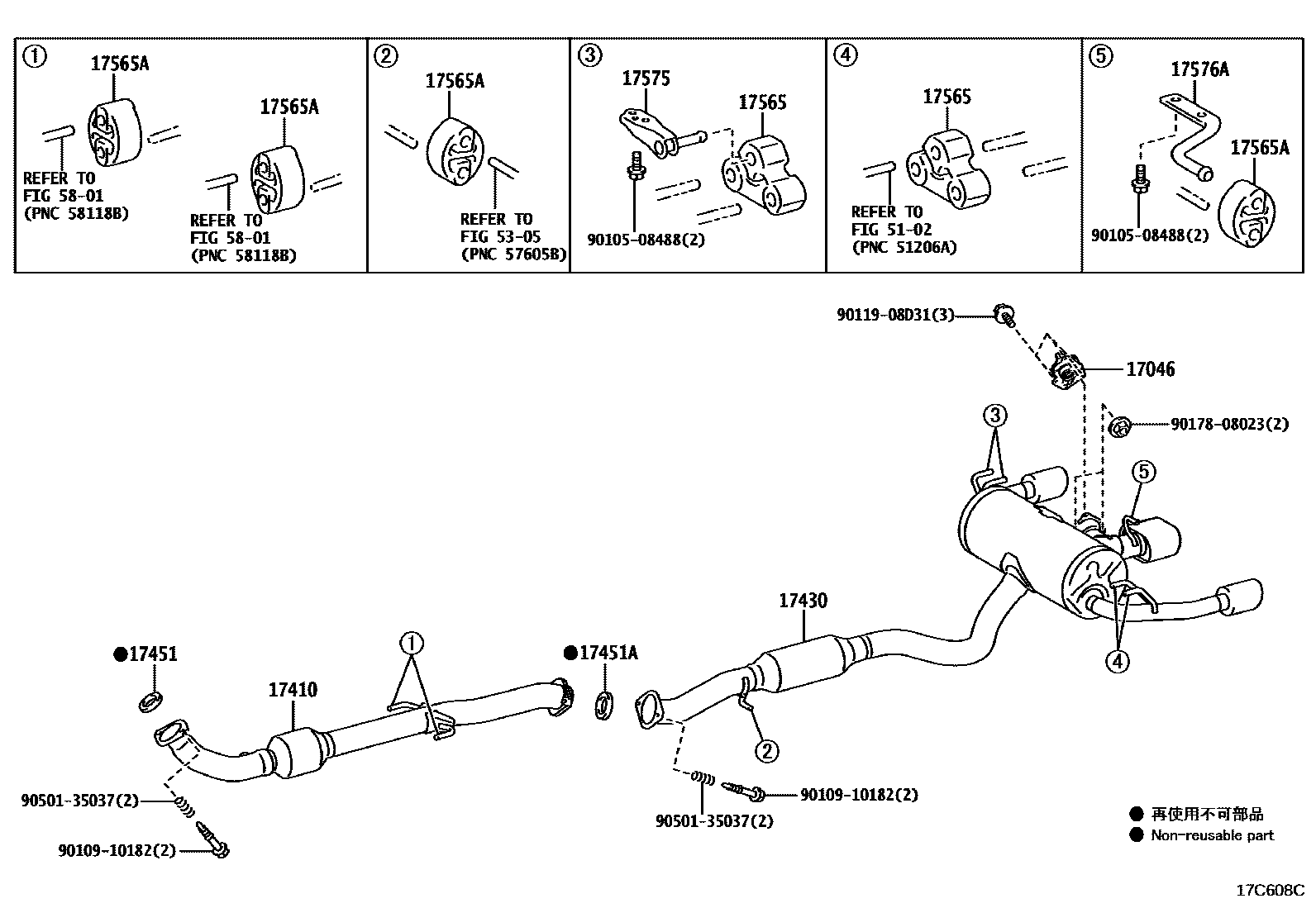

EXHAUST PIPE

17046ACTUATOR SUB-ASSY, EXHAUST PIPE GAS CONTROL

main17046-38020iG16EGTS..GZEA14202210-202409

17410PIPE ASSY, EXHAUST, FRONT

main17410-18081iG16EGTS..GZEA14..02S202210-202409

main17410-18150iG16EGTS..GZEA14202409

17430PIPE ASSY, EXHAUST, TAIL

main17405-18090iG16EGTS..GZEA14202210-202409

sub17405-18140

main17405-18140iG16EGTS..GZEA14202409

17451GASKET, EXHAUST PIPE

main17451-28040iG16EGTS..GZEA14..02S202210-202311

sub17451-28041

main17451-28041iG16EGTS..GZEA14202311-202409

main17451-52050iG16EGTS..GZEA14202409

17451AGASKET, EXHAUST PIPE, NO.2

main17451-52050iG16EGTS..GZEA14..05S202210-202409

17565SUPPORT, EXHAUST PIPE, NO.5

main17566-25010iG16EGTS..GZEA14202210-202409

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-28010iG16EGTS..GZEA14202210-202409

17575BRACKET, EXHAUST PIPE SUPPORT, NO.5

main17575-37030iG16EGTS..GZEA14202210-202409

17576ABRACKET, EXHAUST PIPE SUPPORT, NO.6

main17576-18030iG16EGTS..GZEA14202210-202409

5102

5305

5801

9010508488

main90105-08488

9010910182

main90109-10182

9011908D31

main90119-08D31

9017808023

main90178-08023

9050135037

main90501-35037

17 parts on this diagram · 1 diagram in section
