MANIFOLD

0001 1INTAKE MANIFOLD 0002 1TURBOCHARGER

1104

12218SEPARATOR, VENTILATION FLANGE, NO.1

main12218-18010iG16EGTS..GZEA14..02S202210-202409

12632ABRACKET, ENGINE COVER, NO.2

main12632-18010iG16EGTS..GZEA14202210-202409

1708

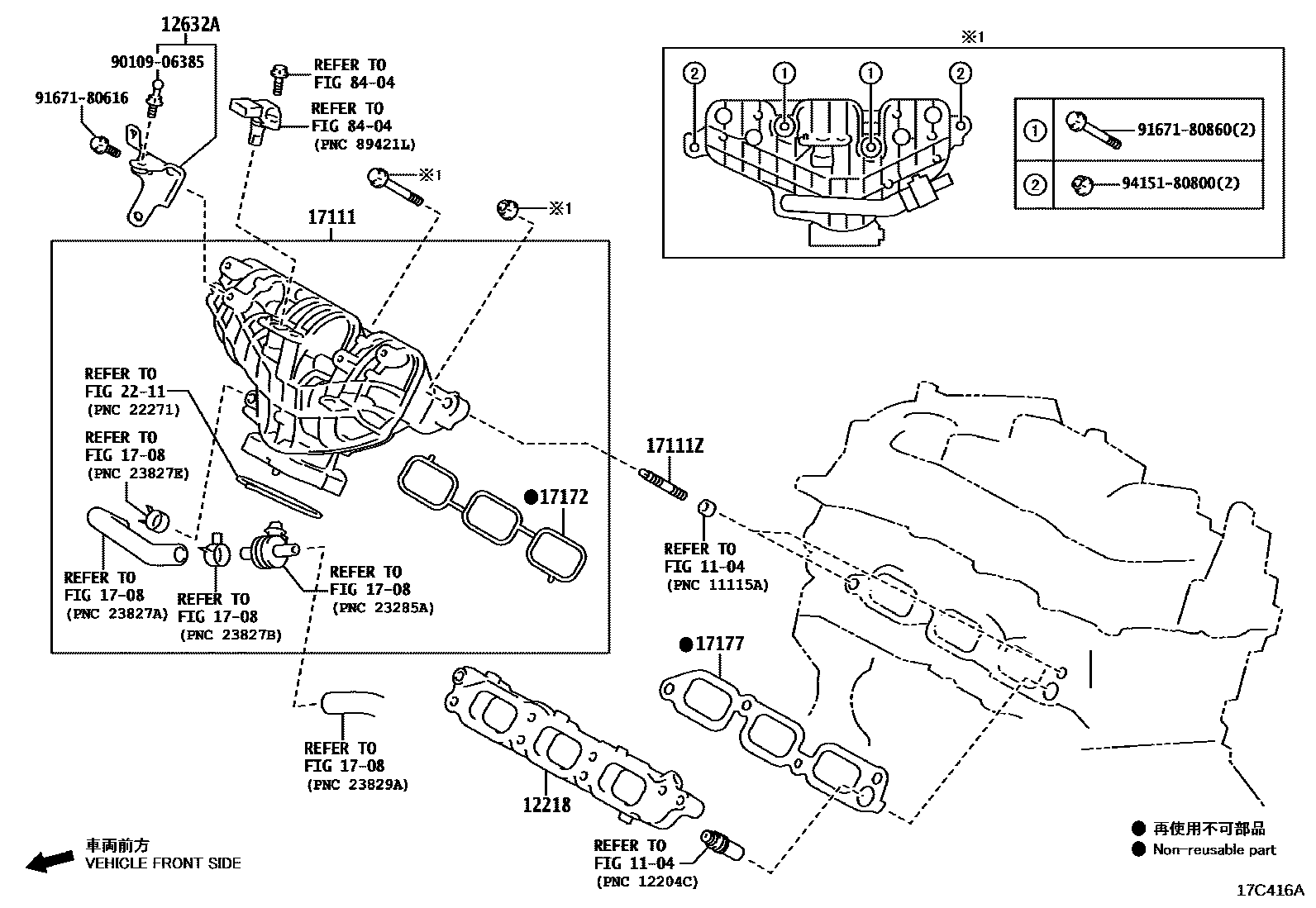

17111MANIFOLD, INTAKE

main17120-18010iG16EGTS..GZEA14202210-202409

17111ZBOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)

main90126-08056iG16EGTS..GZEA14202210-202409

17172GASKET, MANIFOLD TO CYLINDER HEAD

main17171-18010iG16EGTS..GZEA14202210-202409

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17177-18010iG16EGTS..GZEA14202210-202409

2211

8404

9010906385

main90109-06385

9167180616

main91671-80616

9167180860

main91671-80860

9415180800

main94151-80800

14 parts on this diagram · 2 diagrams in section
