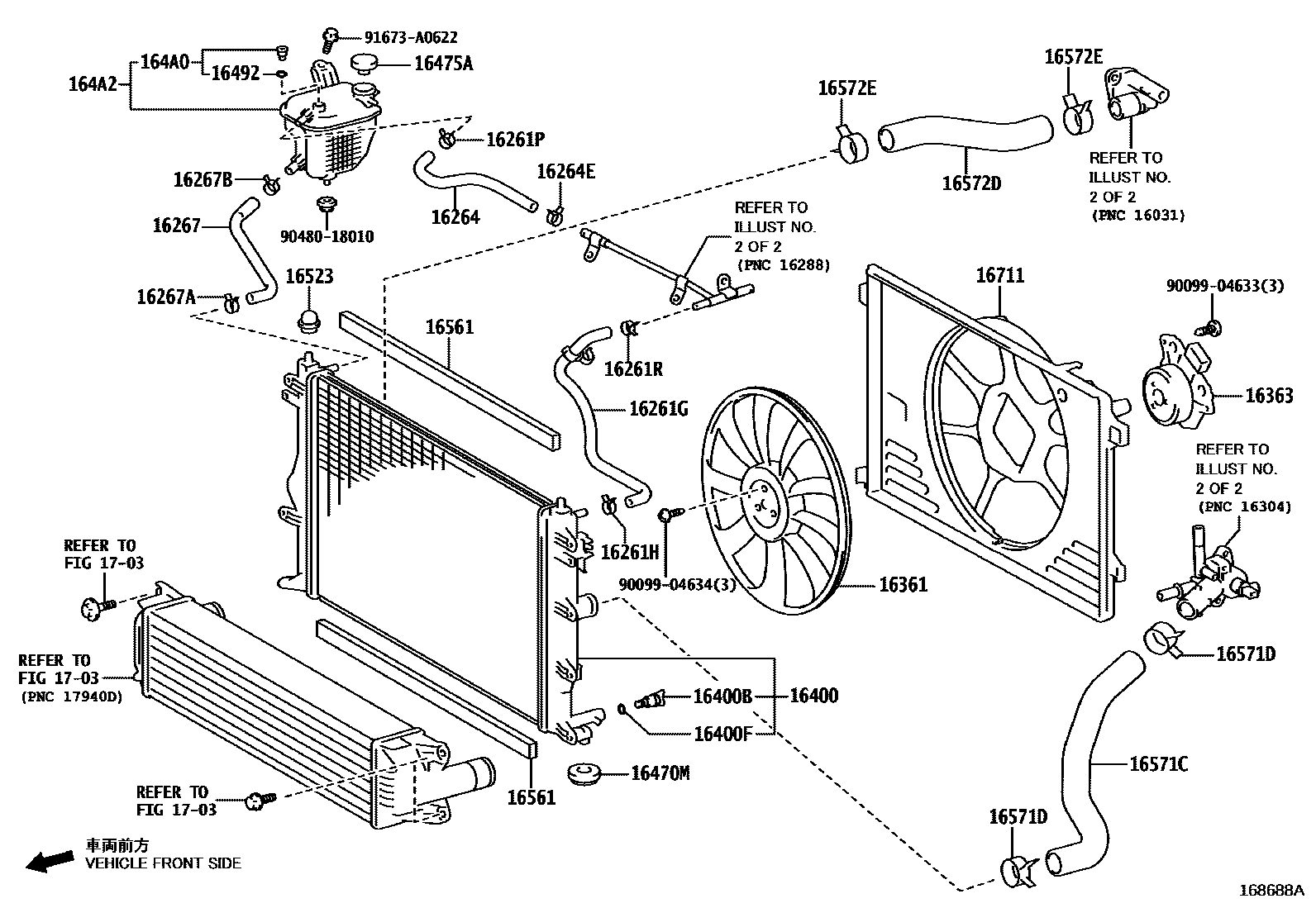

RADIATOR & WATER OUTLET
16261HOSE, WATER BY-PASS
16261GHOSE, WATER BY-PASS, NO.1
16261HCLIP(FOR WATER BY-PASS HOSE NO.1)
16261PCLIP(FOR WATER BY-PASS HOSE NO.2)
16261RCLAMP OR CLIP(FOR WATER BY-PASS HOSE)
16264HOSE, WATER BY-PASS, NO.2
16264ECLIP(FOR WATER BY-PASS HOSE NO.2)
16267HOSE, WATER BY-PASS, NO.3
16267ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)
16267BCLIP(FOR WATER BY-PASS HOSE)
16363MOTOR, COOLING FAN
16400RADIATOR ASSY
16400BPLUG, RADIATOR DRAIN COCK
16400FPACKING(FOR RADIATOR DRAIN COCK)
16470MGROMMET
16475ACAP, RESERVE TANK
16492RING, O(FOR RADIATOR RESERVE TANK COCK)
164A0COCK ASSY, RESERVE TANK
164A2TANK, RESERVE SEALED W/O CAP
16523CUSHION, SUB-RADIATOR SUPPORT
16561SEAL, RADIATOR TO SUPPORT, NO.1
16571CHOSE, RADIATOR, NO.1
SUB RADIATOR-WITH,NO.1:REFER ILLUST.
SUB RADIATOR-WITH,NO.2:REFER ILLUST.
16571DCLIP, RADIATOR HOSE, NO.1
16572DHOSE, RADIATOR, NO.2
SUB RADIATOR-WITH,NO.1:REFER ILLUST.
SUB RADIATOR-WITH,NO.2:REFER ILLUST.
16572ECLIP, RADIATOR HOSE, NO.2
16711SHROUD, FAN
1703
9009904633
main90099-04633
9009904634
main90099-04634
9048018010
main90480-18010
91673A0622
main91673-A0622
32 parts on this diagram · 5 diagrams in section
