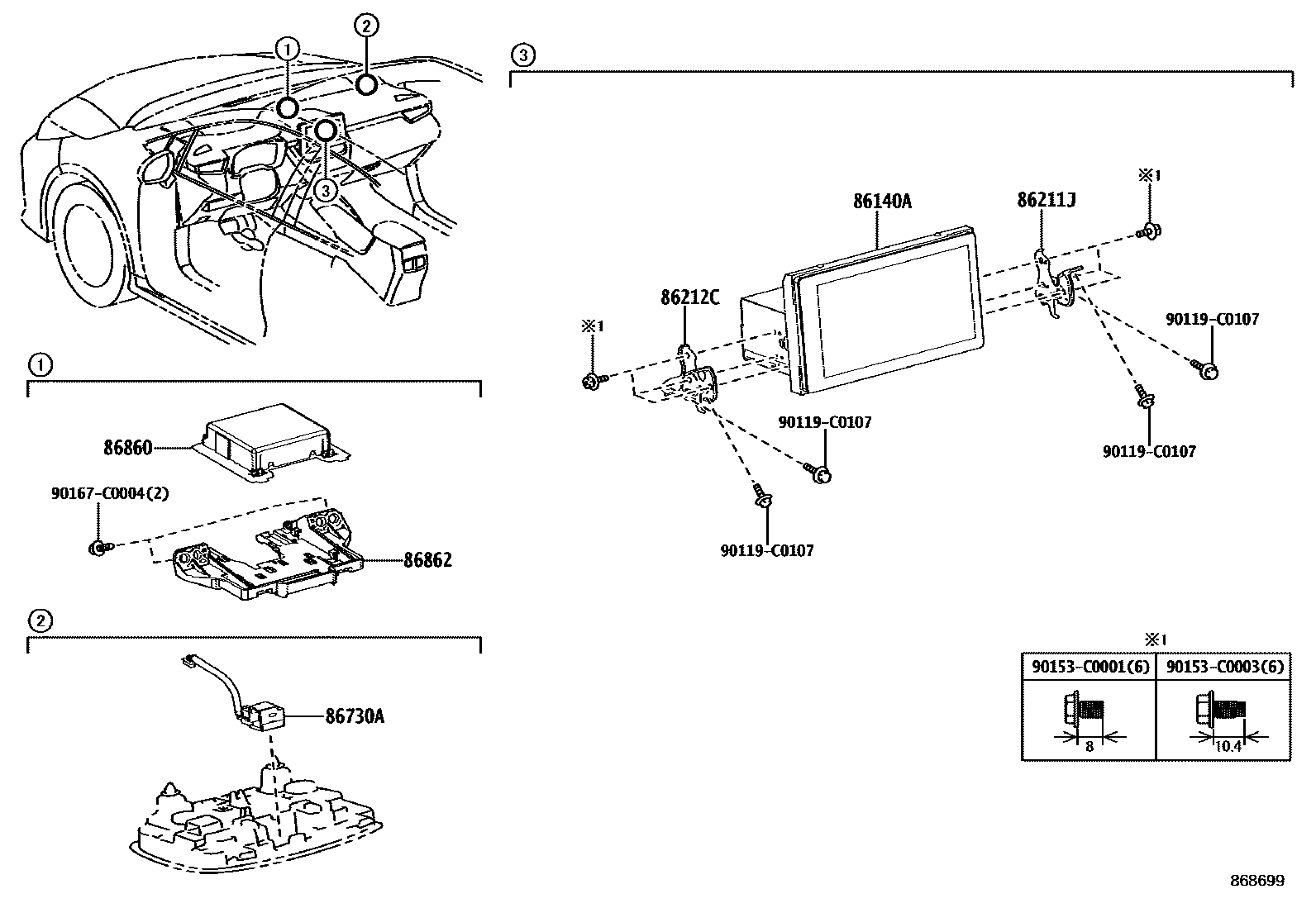

NAVIGATION & FRONT MONITOR DISPLAY

0001 1 0002 1

86140ARECEIVER ASSY, RADIO & DISPLAY

main86100-02290iMZEA12..G202107-202202

DENSO TEN

main86100-02291iMZEA12..G202202-202208

DENSO TEN

main86100-02610iMZEA12..G202208-202210

DENSO TEN

sub86100-02612

main86100-02612iMZEA12..G202210-202304

DENSO TEN

main86100-02752iMZEA12,MZEH16..G202304

DESAY

main86140-02B10iMZEA12,MZEH16..N202407

HANGSHENG

main86140-02G00iMZEA12..N202107-202208

DESAY

main86140-02L90iMZEA12..N202208-202304

DESAY

main86140-02N42iMZEA12,MZEH16..N202304-202407

HANGSHENG

86211JBRACKET, RADIO RECEIVER, NO.1

main86211-02620iMZEA12202107-202304

main86211-02760iMZEA12,MZEH16202304-202309

sub86211-02770

main86211-02770iMZEA12,MZEH16202310

86212CBRACKET, RADIO RECEIVER, NO.2

main86212-02470iMZEA12,MZEH16202304-202309

sub86212-02750

main86212-02620iMZEA12202107-202304

main86212-02750iMZEA12,MZEH16202310

86730AMICROPHONE ASSY, TELEPHONE

main86730-02090iMZEA12202107-202208

main86730-0A020iMZEA12..N202208-202304

86860ANTENNA ASSY, NAVIGATION

main86880-02040iMZEA12202107-202304

main86880-02100iMZEA12,MZEH16202304

86862BRACKET, NAVIGATION ANTENNA

main86862-02020iMZEA12202107-202304

main86862-42010iMZEA12,MZEH16¥940202304

90119C0107

main90119-C0107

90153C0001

main90153-C0001

90153C0003

main90153-C0003

90167C0004

main90167-C0004

10 parts on this diagram · 2 diagrams in section
