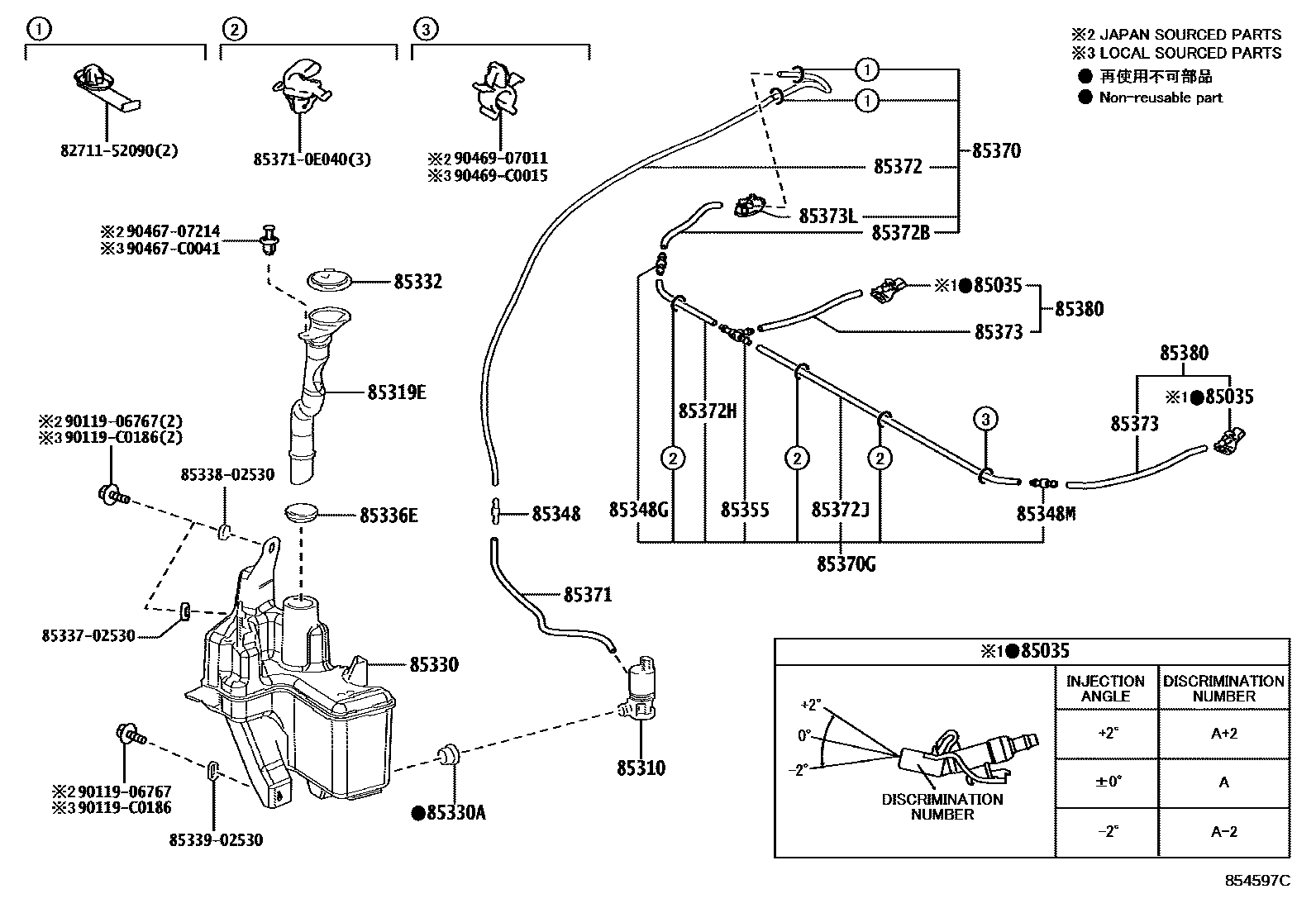

WINDSHIELD WASHER
85035NOZZLE SUB-ASSY, WASHER
ANGLE 0
ANGLE +2
ANGLE -2
85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85319EINLET WASHER
85330JAR ASSY, WINDSHIELD WASHER
85330ABUSH, WINDSHIELD WASHER JAR
85332CAP, WINDSHIELD WASHER JAR
85336EPACKING, WINDSHIELD WASHER INLET HOSE
85348JOINT, WINDSHIELD WASHER HOSE, NO.1
85348GJOINT, WINDSHIELD WASHER HOSE, NO.2
85348MJOINT, WINDSHIELD WASHER HOSE, NO.3
85355VALVE, WINDSHIELD WASHER HOSE
85370HOSE ASSY, WINDSHIELD WASHER
85370GHOSE ASSY, WINDSHIELD WASHER, NO.2
85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
L=303
85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
L=1050
85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
L=280
85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3
L=174
85372JHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4
L=347
85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
L=248,ANGLE 0
L=248,ANGLE +2
L=248,ANGLE -2
85373LGROMMET, WASHER
85380NOZZLE & HOSE ASSY, FR WASHER
ANGLE 0
ANGLE +2
ANGLE -2
8271152090WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-52090
8533702530CASE, LEVEL WARNING SWITCH
main85337-02530
8533802530HOSE, BREATHER
main85338-02530
8533902530CAP SUB-ASSY, RESERVE TANK
main85339-02530
853710E040HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
main85371-0E040
9011906767
main90119-06767
90119C0186
main90119-C0186
9046707214
main90467-07214
90467C0041
main90467-C0041
9046907011
main90469-07011
90469C0015
main90469-C0015
32 parts on this diagram · 1 diagram in section
