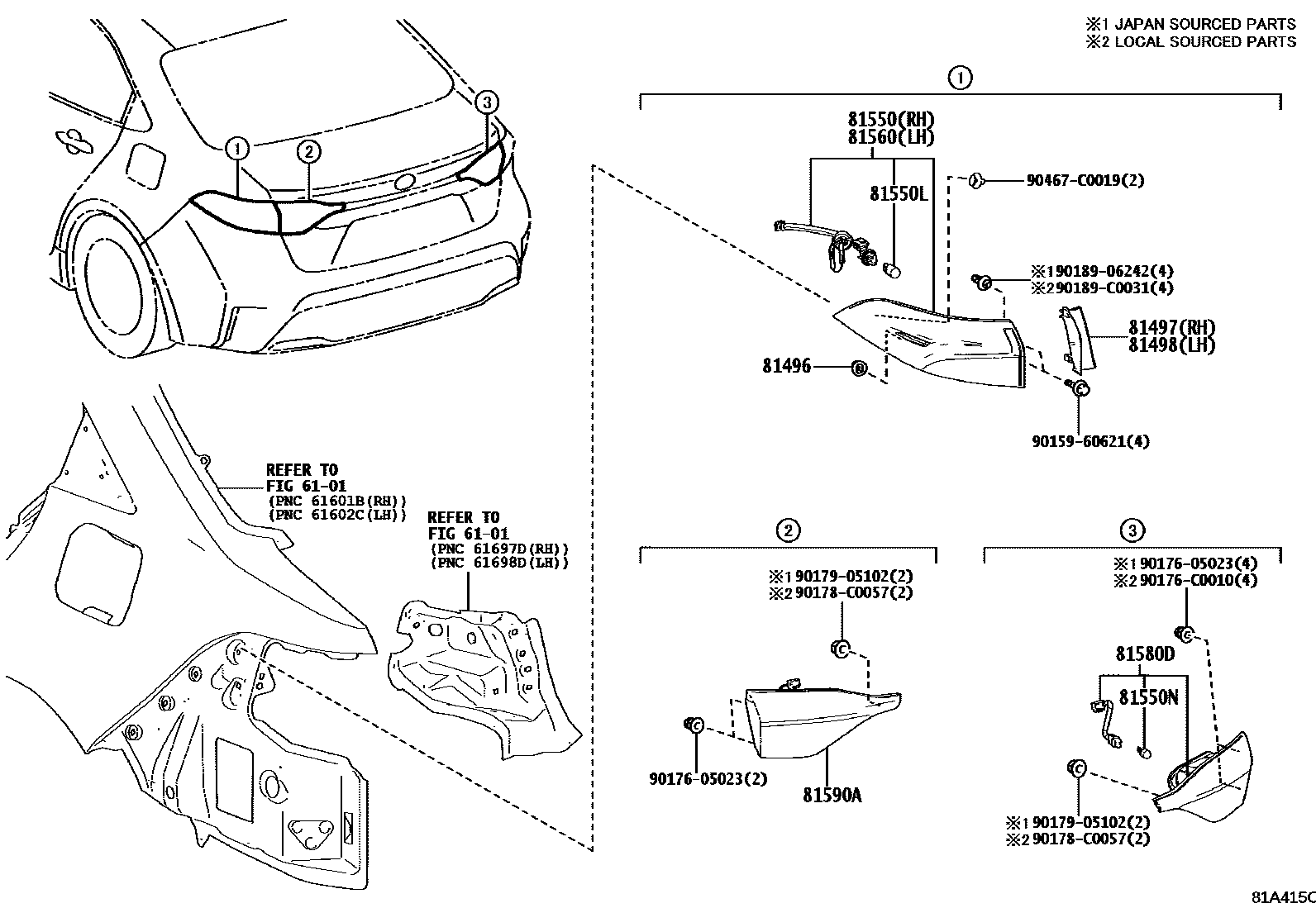

REAR COMBINATION LAMP

6101

81496GUIDE, REAR COMBINATION LAMP

main81496-0D030iMZEA12202107-202304

81497COVER, REAR COMBINATION LAMP, RH

main81497-02100iMZEA12202107-202304

81498COVER, REAR COMBINATION LAMP, LH

main81498-02100iMZEA12202107-202304

81550LAMP ASSY, REAR COMBINATION, RH

main81550-02C00iMZEA12202107-202304

81550LBULB, REAR TURN SIGNAL LAMP

main90981-CB004iMZEA12202107-202304

12V 21W

81550NBULB, BACK UP LAMP

main90981-CB002iMZEA12202107-202304

12V 21W

81560LAMP ASSY, REAR COMBINATION, LH

main81560-02C70iMZEA12202107-202304

81580DLAMP ASSY, REAR, RH

main81580-02580iMZEA12202107-202304

81590ALAMP ASSY, REAR, LH

main81590-02700iMZEA12202107-202111

main81590-02701iMZEA12202112-202304

9015960621

main90159-60621

9017605023

main90176-05023

90176C0010

main90176-C0010

90178C0057

main90178-C0057

9017905102

main90179-05102

9018906242

main90189-06242

90189C0031

main90189-C0031

90467C0019

main90467-C0019

18 parts on this diagram · 1 diagram in section
