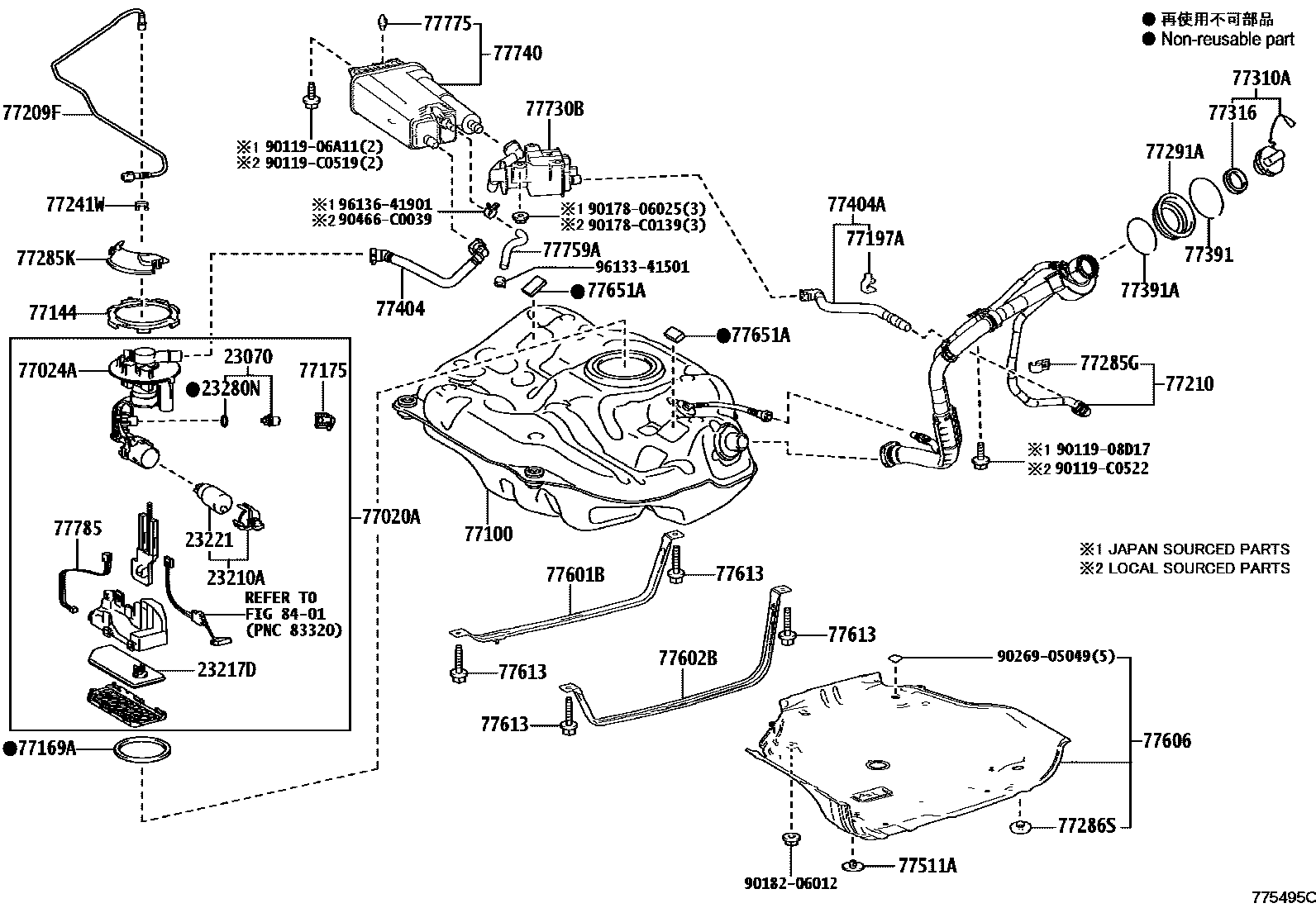

FUEL TANK & TUBE

0001 1FUEL TANK 0002 1FUEL TANK 0003 1FUEL TUBE 0004 1FUEL TUBE 0005 1FUEL LID OPENER 0006 1FUEL LID OPENER

23070VALVE ASSY, FUEL MAIN

main23070-24010iM20..MZEA12,MZEH16202107-202304

23210APUMP ASSY, FUEL W/MOTOR & BRACKET

main23210-F2040iM20..MZEA12202107-202304

23217DFILTER, FUEL PUMP

main23217-24020iM20..MZEA12,MZEH16202304

23221PUMP, FUEL

main23221-24010iM20..MZEA12202107-202304

23280NRING, O(FOR FUEL PRESSURE REGULATOR), NO.2

main90301-15024iM20..MZEA12202107-202304

main90301-C0073iM20..MZEH16202307

77020ATUBE ASSY, FUEL SUCTION W/PUMP & GAGE

main77020-F4090iMZEA12202107-202304

main77020-F4110iMZEH16202307

77024APLATE SUB-ASSY, FUEL SUCTION

main77024-F4080iMZEA12202107-202304

main77024-F4110iMZEH16202307

77100TANK ASSY, FUEL

main77001-02C60iMZEH16202307

main77001-F4080iMZEA12202107-202304

77144RETAINER, FUEL PUMP GAUGE

main77144-30030iMZEA12202107-202304

77169AGASKET, FUEL SUCTION TUBE SET

main77169-02130iMZEA12202304

(L)

main77169-0K030iMZEA12202107-202303

(L)

main77169-47030iMZEA12202107-202303

(J)

main77169-47030iMZEH16202307

77175SUPPORT, FUEL SUCTION, NO.2

main77175-F4020iMZEA12202107-202304

77197ACLAMP, EVAPORATION VENT TUBE, NO.2

main77197-06100iMZEA12,MZEH16202107-202304

77209FTUBE SUB-ASSY, FUEL TANK MAIN

main77209-02370iMZEH16202307

main77209-F4090iMZEA12202107-202304

77210PIPE ASSY, FUEL TANK FILLER

main77210-02851iMZEA12202107-202304

77241WCLIP, TUBE JOINT

main77241-02020iMZEA12202109-202311

main77241-33011iMZEH16202107-202108

77285GCLAMP, FUEL TUBE, NO.1

main77285-06580iMZEA12,MZEH16202107-202304

77285KCLAMP, FUEL TUBE, NO.1

main77285-02230iMZEA12202205-202304

(L)

main77285-10060iMZEA12202205-202304

(J)

main77285-10060iMZEA12202107-202205

main77285-30350iMZEH16202307

77286SCUSHION, FUEL TANK PROTECTOR

main77286-12110iMZEA12202204-202304

(J)

main77286-12110iMZEH16202107-202204

main77286-F4040iMZEA12202204-202304

(L)

77291ASHIELD, FUEL TANK FILLER PIPE

main77291-02331iMZEA12202107-202304

77310ACAP ASSY, FUEL TANK

main77300-06110iMZEH16202307

main77300-0R010iMZEA12202107-202304

77316GASKET, FUEL TANK CAP

main77316-0F020iMZEA12202107-202304

main77316-75020iMZEH16202307

77391RING, FUEL INLET BOX

main77391-0R080iMZEA12202107-202304

77391ARING, FUEL INLET BOX

main77391-02170iMZEA12,MZEH16202107-202304

77404HOSE SUB-ASSY, FUEL TANK VENT

main77404-02410iMZEH16202307

main77404-F4080iMZEA12202107-202304

77404AHOSE SUB-ASSY, FUEL TANK VENT

main77404-02280iMZEH16202307

main77404-F4110iMZEA12202107-202304

77511ABRACKET, FUEL TANK

main77512-06040iMZEA12,MZEH16202107-202304

(L)

main77512-35140iMZEA12,MZEH16202107-202304

(J)

77601BBAND SUB-ASSY, FUEL TANK, NO.1 RH

main77601-F4050iMZEA12202107-202304

77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH

main77602-F4050iMZEA12202107-202304

77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1

main77606-F4060iMZEA12202107-202304

77613BOLT, FUEL TANK BAND SET

main90119-10995iMZEA12202107-202304

(J)

main90119-C0526iMZEA12202107-202304

(L)

77651ACUSHION, FUEL TANK, NO.1

main77651-F4030iMZEA12202107-202304

77730BCANISTER ASSY, CHARCOAL W/OUTLET HOSE

main77730-02040iMZEA12202107-202304

77740CANISTER ASSY, CHARCOAL

main77740-02240iMZEH16202307

main77740-F4030iMZEA12202107-202304

77759AHOSE, CHARCOAL CANISTER

main77759-12120iMZEH16202307

main77759-F4030iMZEA12202107-202304

77775GUIDE, CHARCOAL CANISTER OUTLET

main77775-33010iMZEA12202107-202304

77785HARNESS, FUEL PUMP

main77785-06190iMZEA12,MZEH16202309

(L)

main77785-76010iMZEA12202107-202309

main77785-76010iMZEA12,MZEH16202309

(J)

8401

9011906A11

main90119-06A11

9011908D17

main90119-08D17

90119C0519

main90119-C0519

90119C0522

main90119-C0522

9017806025

main90178-06025

90178C0139

main90178-C0139

9018206012

main90182-06012

9026905049

main90269-05049

90466C0039

main90466-C0039

9613341501

main96133-41501

9613641901

main96136-41901

48 parts on this diagram · 6 diagrams in section
