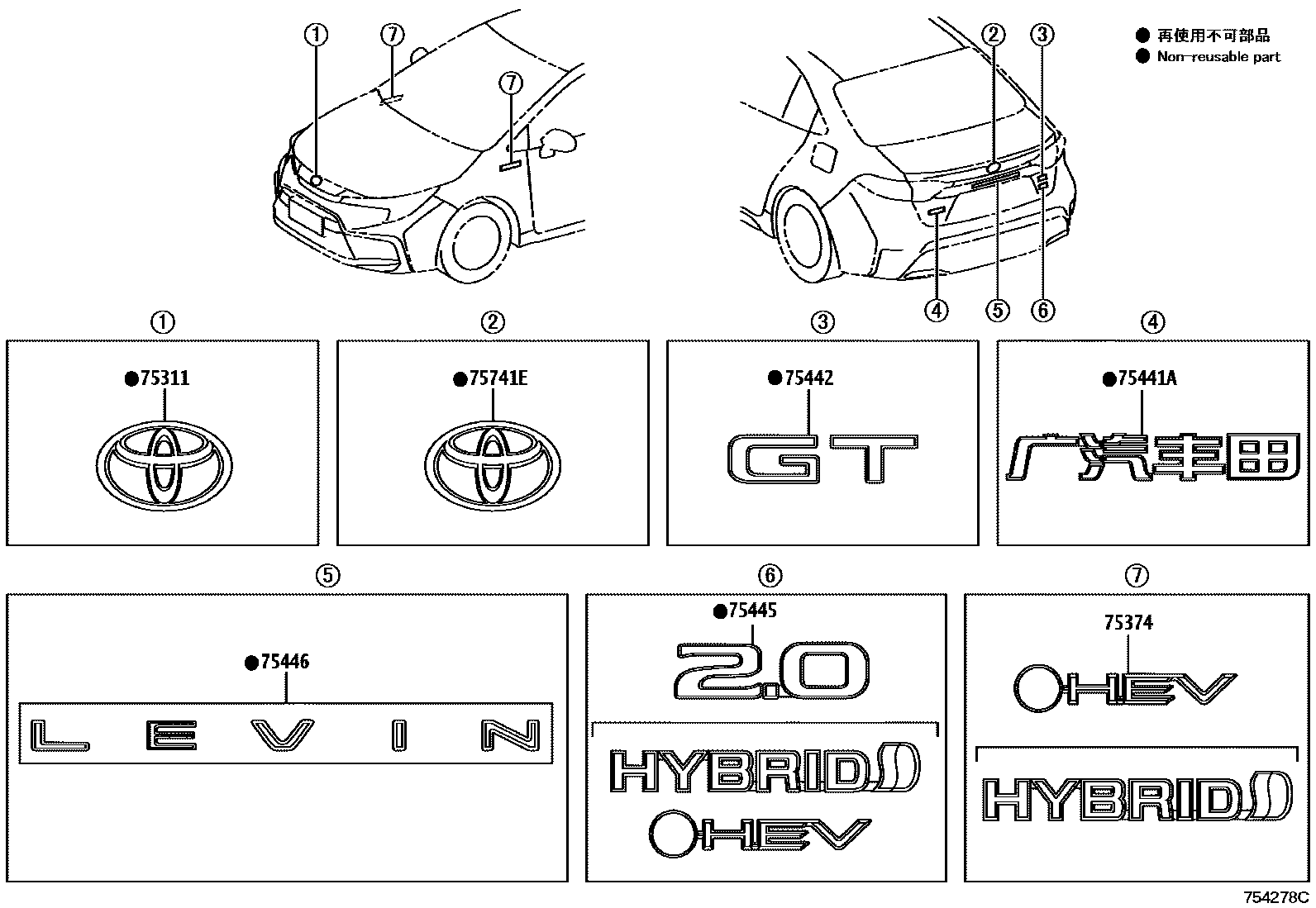

EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

75311EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)

main75403-02070iMZEH16202307-202407

main90975-C2002iMZEA12202107-202304

75374EMBLEM, SIDE PANEL

main75374-02170iMZEH16202307-202407

RH

main75374-02180iMZEH16202307-202407

LH

main75440-0E040iMZEH16202407

RH & LH

75441APLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.1

main75441-02410iMZEA12202107-202304

main75441-02510iMZEA12,MZEH16202304

75442PLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.2

main75442-02650iMZEA12,MZEH16202107-202304

GT

75445PLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.5

main75440-0E090iMZEH16202407

HEV

main75443-02380iMZEH16202307-202407

HYBRID

main75445-02150iMZEA12202107-202304

2.0

75446PLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.6

main75446-02080iMZEA12,MZEH16202107-202304

LEVIN

75741EEMBLEM, SYMBOL

main75403-02070iMZEH16202307-202407

main90975-C2002iMZEA12202107-202304

7 parts on this diagram · 1 diagram in section
