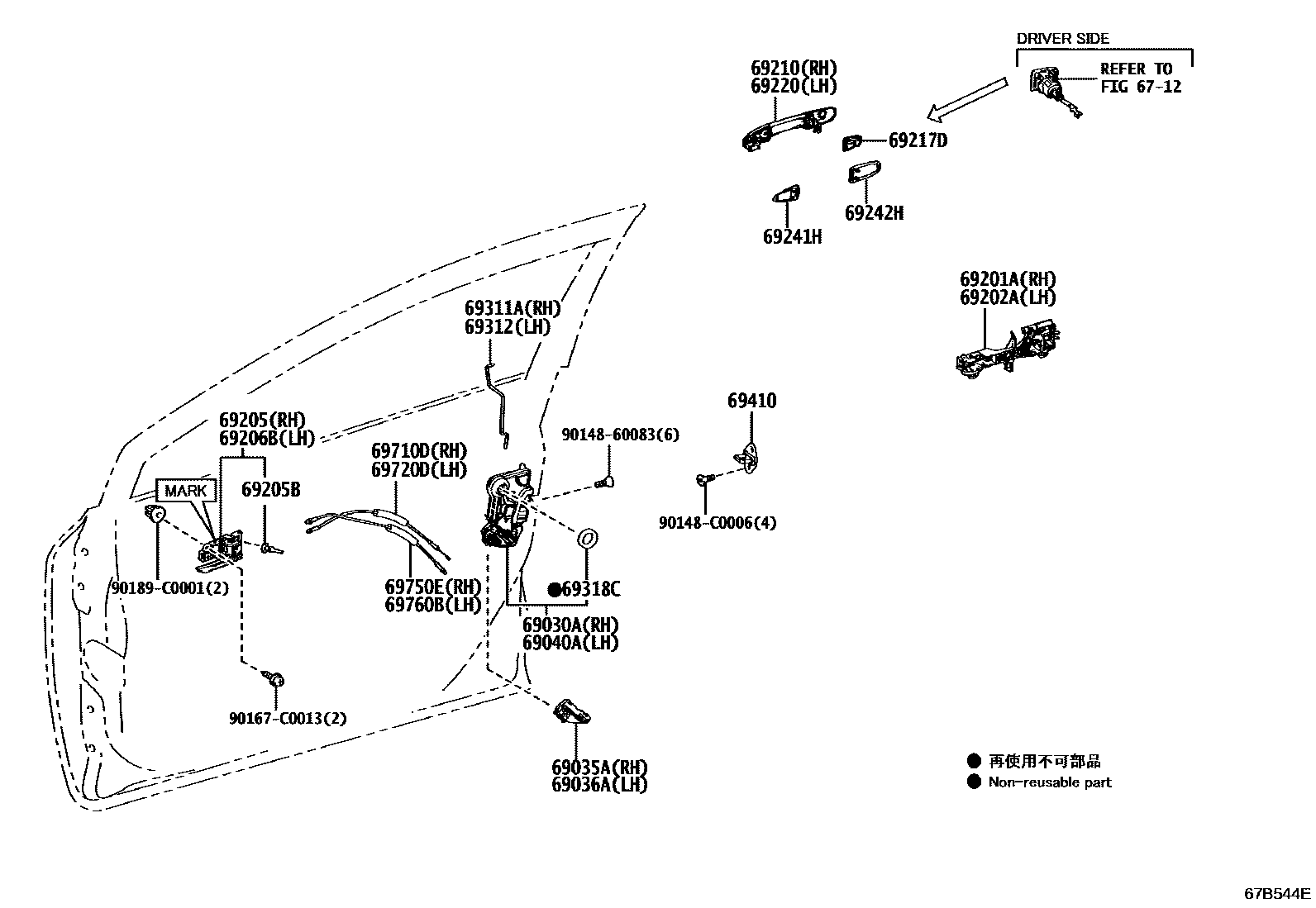

FRONT DOOR LOCK & HANDLE
6712
69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH
69035ACOVER SUB-ASSY, FRONT DOOR LOCK, RH
69036ACOVER SUB-ASSY, FRONT DOOR LOCK, LH
69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
BLACK,TRIM2#
BLACK,TRIM2#,4#
BLACK,TRIM2#,4#,W/O MARK
BLACK,TRIM2#,W/O MARK
BLACK,TRIM2#,MARK = WHITE
BLACK,TRIM2#,4#,MARK = WHITE
69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
BLACK,TRIM2#,4#
BLACK,TRIM2#
BLACK,TRIM2#,W/O MARK
BLACK,TRIM2#,4#,W/O MARK
BLACK,TRIM2#,MARK = WHITE
BLACK,TRIM2#,4#,MARK = WHITE
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
PLATINUM WHITE PEARL MC.,089
BLACK MC.,209
RED M.M.,3R3
AVANT-GARDE BRONZE ME.,4V8
STEEL BLONDE ME.,4X1
PLATED
NO PAINT REQ.
NO PAINT REQ.
PLATINUM WHITE PEARL MC.,089
BLACK MC.,209
RED M.M.,3R3
AVANT-GARDE BRONZE ME.,4V8
STEEL BLONDE ME.,4X1
69217DCOVER, FRONT DOOR OUTSIDE HANDLE
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
NO PAINT REQ.
NO PAINT REQ.
PLATINUM WHITE PEARL MC.,089
BLACK MC.,209
RED M.M.,3R3
STEEL BLONDE ME.,4X1
AVANT-GARDE BRONZE ME.,4V8
PLATED
PLATINUM WHITE PEARL MC.,089
BLACK MC.,209
RED M.M.,3R3
AVANT-GARDE BRONZE ME.,4V8
STEEL BLONDE ME.,4X1
69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT
69242HPAD, FRONT DOOR OUTSIDE HANDLE, REAR
69311AROD, FRONT DOOR LOCK OPEN, RH
69312ROD, FRONT DOOR LOCK OPEN, LH
69318CSEAL, DOOR LOCK WIRING HARNESS
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69710DCABLE, FRONT DOOR LOCK REMOTE CONTROL, RH(FOR OPEN LEVER)
69720DCABLE, FRONT DOOR LOCK REMOTE CONTROL, LH(FOR OPEN LEVER)
69750ECABLE, FRONT DOOR INSIDE LOCKING, RH(FOR LOCK / UNLOCK KNOB)
69760BCABLE, FRONT DOOR INSIDE LOCKING, LH(FOR LOCK / UNLOCK KNOB)
9014860083
main90148-60083
90148C0006
main90148-C0006
90167C0013
main90167-C0013
90189C0001
main90189-C0001
27 parts on this diagram · 1 diagram in section
