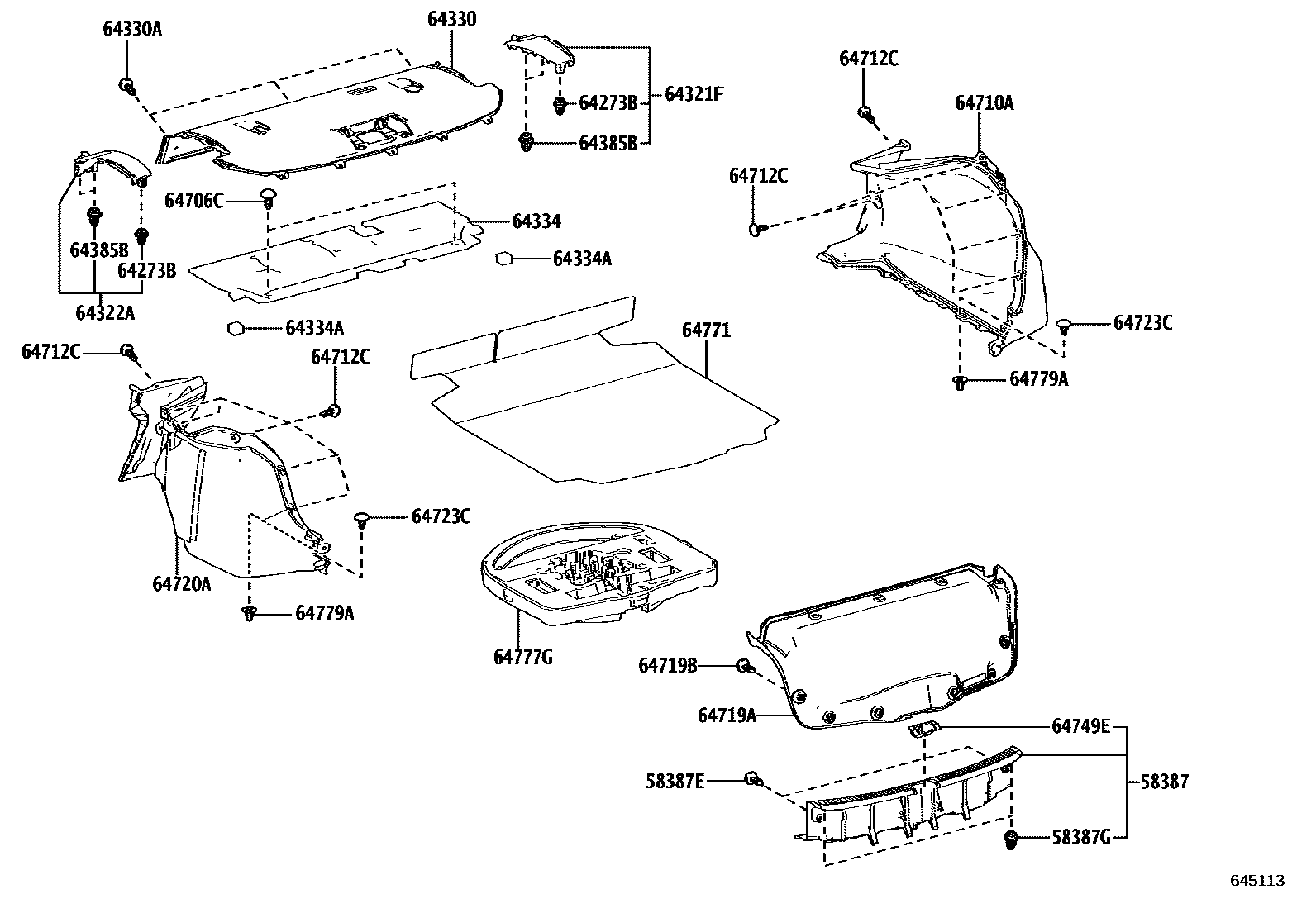

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

0001 1 0002 1

58387PLATE, REAR FLOOR FINISH

main58387-02390-C0iMZEA12..G202107-202304

BLACK,TRIM2#

main58387-02390-C0iMZEA12..N202107-202304

BLACK,TRIM2#,4#

58387ECLIP(FOR REAR FLOOR FINISH PLATE)

main90467-C0012-C1iMZEA12..G202107-202304

BLACK,TRIM2#,4#

main90467-C0012-C1iMZEA12..G202107-202304

BLACK,TRIM2#

58387GCLIP(FOR REAR FLOOR FINISH PLATE)

main90467-10161iMZEA12¥90202107-202304

64273BCLIP

main90467-09240iMZEA12¥80202107-202304

64321FBRACKET, PACKAGE TRAY TRIM, RH

main64301-02090-C0iMZEA12..G202107-202304

BLACK,TRIM2#,4#

main64301-02090-C0iMZEA12..G202107-202304

BLACK,TRIM2#

main64301-02120-C0iMZEA12,MZEH16..N202304

BLACK,TRIM2#

main64301-02120-C0iMZEA12,MZEH16..N202304

BLACK,TRIM2#,4#

64322ABRACKET, PACKAGE TRAY TRIM, LH

main64302-02040-C0iMZEA12,MZEH16..G202304

BLACK,TRIM2#

main64302-02040-C0iMZEA12,MZEH16..N202304

BLACK,TRIM2#,4#

main64302-02090-C0iMZEA12..N202107-202304

BLACK,TRIM2#

main64302-02090-C0iMZEA12..G202107-202304

BLACK,TRIM2#,4#

64330PANEL ASSY, PACKAGE TRAY TRIM

main64330-02J30-C0iMZEA12..G202107-202304

BLACK,TRIM2#,4#

main64330-02J30-C0iMZEA12..G202107-202304

BLACK,TRIM2#

main64330-02K50-C2iMZEA12,MZEH16..N202304

BLACK,TRIM2#

main64330-02K50-C2iMZEA12,MZEH16..N202304

BLACK,TRIM2#,4#

64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)

main90467-07215iMZEA12,MZEH16¥80202304

main90467-C0012-C1iMZEA12..G202107-202304

BLACK,TRIM2#,4#

main90467-C0012-C1iMZEA12..G202107-202304

BLACK,TRIM2#

64334PAD, PACKAGE TRAY TRIM SILENCER

main64334-02430iMZEA12202107-202304

64334APAD, PACKAGE TRAY TRIM

main64334-02530iMZEA12202107-202304

64385BCLIP

main90467-C0036iMZEA12202107-202304

64706CCLIP

main90467-06020-C0iMZEA12202107-202304

BLACK

sub90467-06020¥190

64710ACOVER ASSY, LUGGAGE COMPARTMENT TRIM, RH

main64710-02540-C0iMZEA12..G202107-202304

BLACK,TRIM2#,4#

main64710-02540-C0iMZEA12..G202107-202304

BLACK,TRIM2#

main64710-02690-C0iMZEH16..N202307

BLACK,TRIM2#

main64710-02690-C0iMZEH16..N202307

BLACK,TRIM2#,4#

64712CCLIP(FOR LUGGAGE COMPARTMENT TRIM COVER)

main90467-C0012-C1iMZEA12..G202107-202304

BLACK,TRIM2#

main90467-C0012-C1iMZEA12..N202107-202304

BLACK,TRIM2#,4#

64719ACOVER, LUGGAGE COMPARTMENT DOOR

main64719-02341-C0iMZEA12..G202107-202304

BLACK,TRIM2#,4#

main64719-02341-C0iMZEA12..G202107-202304

BLACK,TRIM2#

64719BCLIP(FOR LUGGAGE COMPARTMENT DOOR)

main90467-C0012-C1iMZEA12..G202107-202304

BLACK,TRIM2#,4#

main90467-C0012-C1iMZEA12..G202107-202304

BLACK,TRIM2#

64720ACOVER ASSY, LUGGAGE COMPARTMENT TRIM, LH

main64720-02520-C0iMZEA12..N202107-202304

BLACK,TRIM2#,4#

main64720-02520-C0iMZEA12..G202107-202304

BLACK,TRIM2#

main64720-02620-C0iMZEH16..N202307

BLACK,TRIM2#,4#

main64720-02620-C0iMZEH16..G202307

BLACK,TRIM2#

64723CCLIP, LUGGAGE COMPARTMENT TRIM COVER

main64726-0D070iMZEA12,MZEH16202304

(L)

main64726-26010-C2iMZEA12..N202107-202304

BLACK,TRIM2#,4#

main64726-26010-C2iMZEA12..N202107-202304

BLACK,TRIM2#

main64726-26010-C2iMZEA12,MZEH16..G202304

BLACK,TRIM2#,4#,(J)

main64726-26010-C2iMZEA12,MZEH16..N202304

BLACK,TRIM2#,(J)

64749ECOVER, LUGGAGE COMPARTMENT DOOR STRIKER

main64749-02140-C0iMZEA12,MZEH16..N202107-202304

BLACK,TRIM2#

main64749-02140-C0iMZEA12..G202107-202304

BLACK,TRIM2#,4#

64771COVER, SPARE WHEEL

main64771-02610-C0iMZEA12..G202107-202304

BLACK,TRIM2#,4#

main64771-02610-C0iMZEA12..G202107-202304

BLACK,TRIM2#

main64771-02680-C0iMZEA12,MZEH16..N202304

BLACK,TRIM2#

main64771-02680-C0iMZEA12,MZEH16..N202304

BLACK,TRIM2#,4#

64777GCUSHION, SPARE WHEEL

main64777-02510iMZEA12202107-202304

main64777-02570iMZEA12,MZEH16202304

64779ASTOPPER, SPARE WHEEL COVER

main64779-26010iMZEA12¥220202107-202304

22 parts on this diagram · 2 diagrams in section
