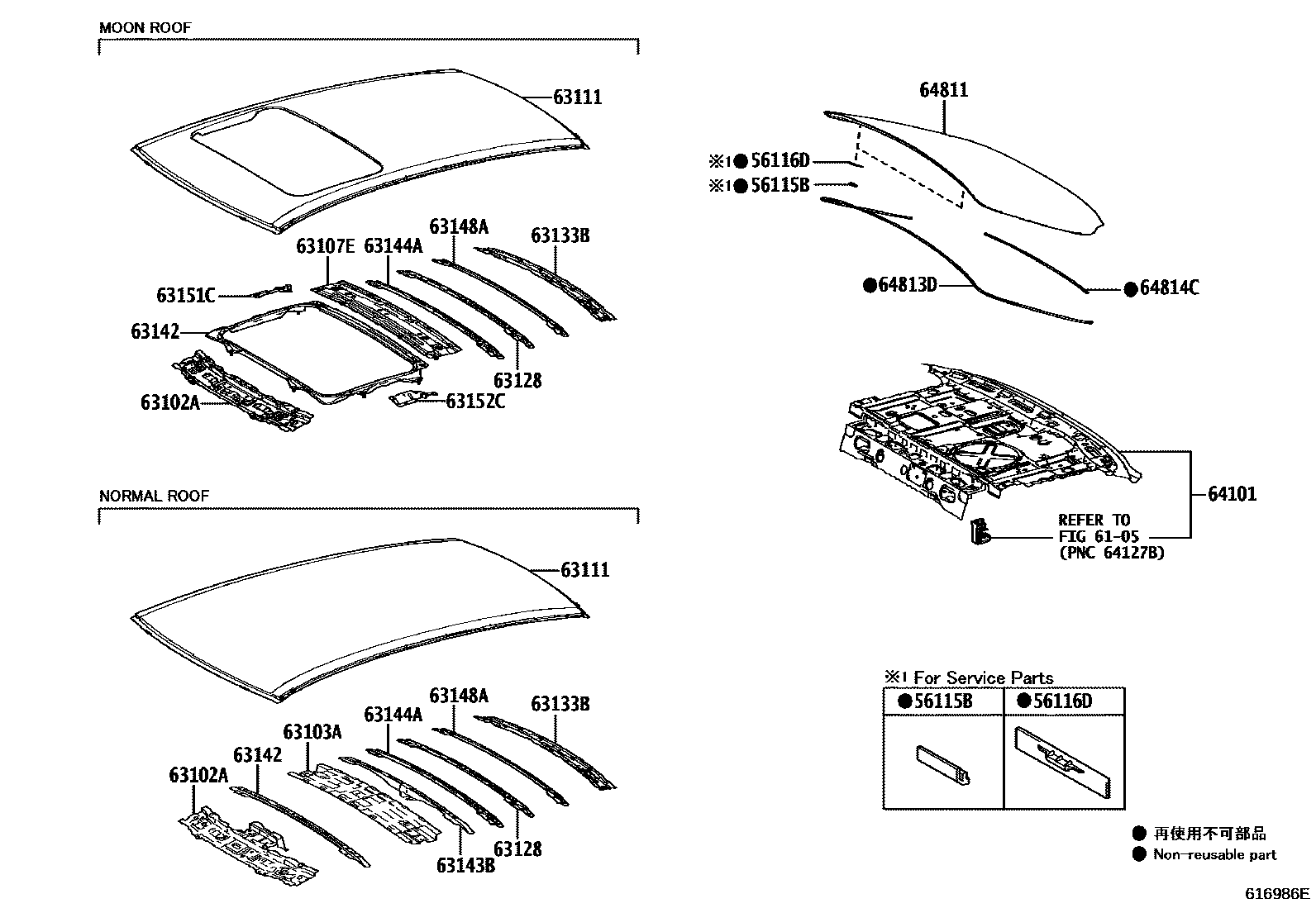

ROOF PANEL & BACK WINDOW GLASS
56115BSTOPPER, BACK WINDOW GLASS, NO.1
56116DSTOPPER, BACK WINDOW GLASS, NO.2
6105
63102APANEL SUB-ASSY, WINDSHIELD HEADER
LOW PACKAGE
LOW PACKAGE
63103AREINFORCEMENT SUB-ASSY, ROOF PANEL
LOW PACKAGE
63107EREINFORCEMENT SUB-ASSY, ROOF PANEL, NO.5
63111PANEL, ROOF
LOW PACKAGE
63128REINFORCEMENT, ROOF PANEL, NO.6
63133BFRAME, BACK WINDOW
63142REINFORCEMENT, ROOF PANEL, NO.2
LOW PACKAGE
63143BREINFORCEMENT, ROOF PANEL, NO.3
LOW PACKAGE
63144AREINFORCEMENT, ROOF PANEL, NO.4
63148AREINFORCEMENT, ROOF PANEL, NO.7
63151CFRAME, ROOF OPENING SIDE, RH
63152CFRAME, ROOF OPENING SIDE, LH
64101PANEL SUB-ASSY, UPPER BACK
64811GLASS, BACK WINDOW
64813DDAM, BACK WINDOW GLASS ADHESIVE
64814CDAM, BACK WINDOW GLASS ADHESIVE, LOWER
19 parts on this diagram · 2 diagrams in section
