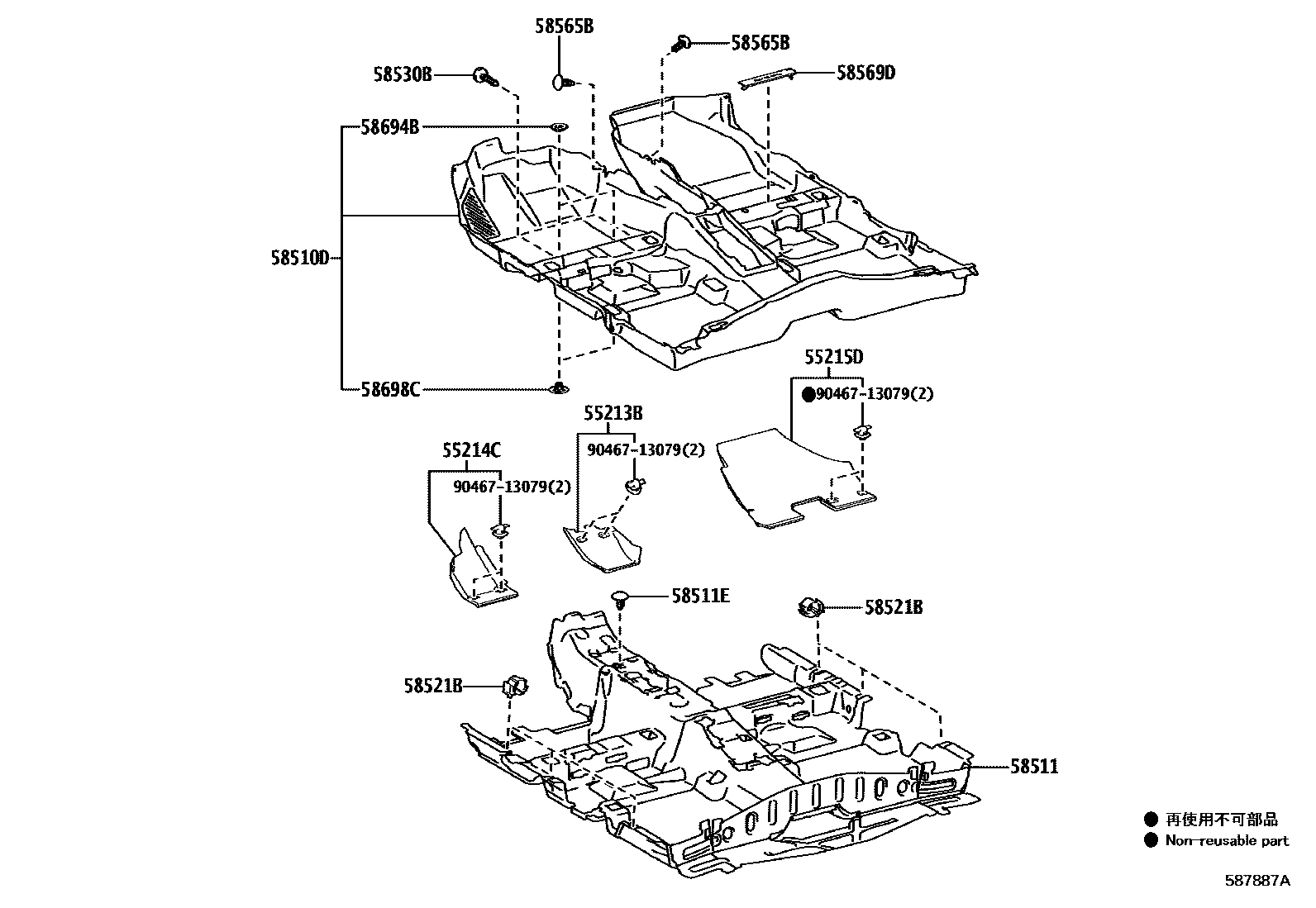

MAT & CARPET

0001 1FLOOR CARPET 0002 1FLOOR CARPET 0003 1FLOOR MAT

55213BPAD, DASH PANEL INSULATOR, NO.1

main55213-02380iMZEA12202107-202304

55214CPAD, DASH PANEL INSULATOR, NO.2

main55214-02340iMZEA12202107-202304

55215DPAD, DASH PANEL INSULATOR, NO.3

main55215-02240iMZEA12202107-202304

58510DCARPET ASSY, FLOOR, FRONT

main58510-02T80-C0iMZEA12..G202107-202304

BLACK,TRIM2#,4#

main58510-02T80-C0iMZEA12..G202107-202304

BLACK,TRIM2#

main58510-02W90-C0iMZEH16..N202307

BLACK,TRIM2#

main58510-02W90-C0iMZEH16..N202307

BLACK,TRIM2#,4#

58511MAT, FLOOR, FRONT

main58511-02390iMZEA12202107-202304

main58511-02500iMZEH16202307

58511ECLIP(FOR FRONT FLOOR MAT)

main90467-07042-C4iMZEA12..G202107-202304

BLACK,TRIM2#,4#

sub90467-07042¥110

sub90467-06175¥220

main90467-07042-C4iMZEA12..G202107-202304

BLACK,TRIM2#

sub90467-07042¥110

sub90467-06175¥220

58521BHOOK, FLOOR CARPET

main58521-06180iMZEA12202107-202304

58530BCLIP(FOR FRONT FLOOR CARPET)

main90467-C0049iMZEA12202107-202304

58565BCLIP

main90467-C0016-C1iMZEA12..G202107-202304

BLACK,TRIM2#,4#

main90467-C0016-C1iMZEA12..G202107-202304

BLACK,TRIM2#

58569DCOVER, FRONT FLOOR CAUTION PLATE

main58569-02160-C0iMZEA12..G202107-202304

BLACK,TRIM2#,4#

main58569-02160-C0iMZEA12..G202107-202304

BLACK,TRIM2#

58694BPLATE, MAT SET, UPPER

main58694-78010iMZEA12¥130202107-202304

58698CPLATE, MAT SET, LOWER

main58698-78010iMZEA12¥230202107-202304

9046713079

main90467-13079¥120

13 parts on this diagram · 3 diagrams in section
