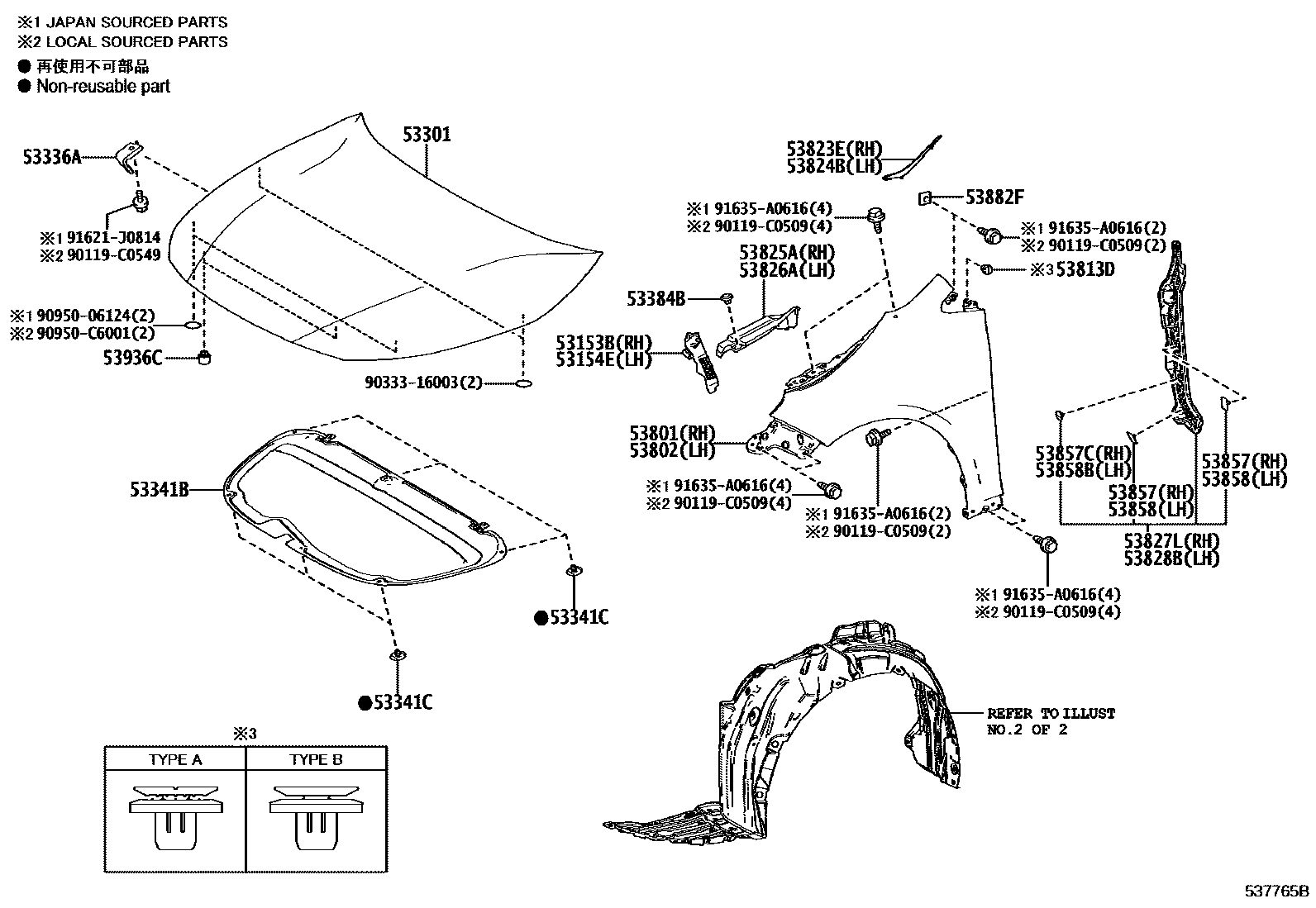

HOOD & FRONT FENDER
53153BGUIDE, FRONT SIDE AIR
53154EGUIDE, FRONT SIDE AIR, NO.2
53301HOOD SUB-ASSY
53336ABRACKET, HOOD STAY
53341CCLIP(FOR HOOD INSULATOR)
(J)
(L)
53384BCUSHION, HOOD, CENTER
(L)
(J)
53801FENDER SUB-ASSY, FRONT RH
53802FENDER SUB-ASSY, FRONT LH
53813DEXTENSION, FRONT FENDER
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
53823EPROTECTOR, FRONT SIDE PANEL, NO.2 RH
53824BPROTECTOR, FRONT SIDE PANEL, NO.2 LH
53825APROTECTOR, FRONT FENDER, UPPER RH
53826APROTECTOR, FRONT FENDER, UPPER LH
53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH
53828BPROTECTOR, FRONT FENDER SIDE PANEL, LH
53857RETAINER, FRONT WHEEL OPENING EXTENSION, RH
53857CRETAINER, FRONT WHEEL OPENING EXTENSION, RH
(L)
(J)
53858RETAINER, FRONT WHEEL OPENING EXTENSION, LH
53858BRETAINER, FRONT WHEEL OPENING EXTENSION, LH
(L)
(J)
53882FSEAL, FRONT FENDER
(L)
(J)
53936CCUSHION
90119C0509
main90119-C0509
90119C0549
main90119-C0549
9033316003
main90333-16003
9095006124
main90950-06124
90950C6001
main90950-C6001
91621J0814
main91621-J0814
91635A0616
main91635-A0616
29 parts on this diagram · 2 diagrams in section
