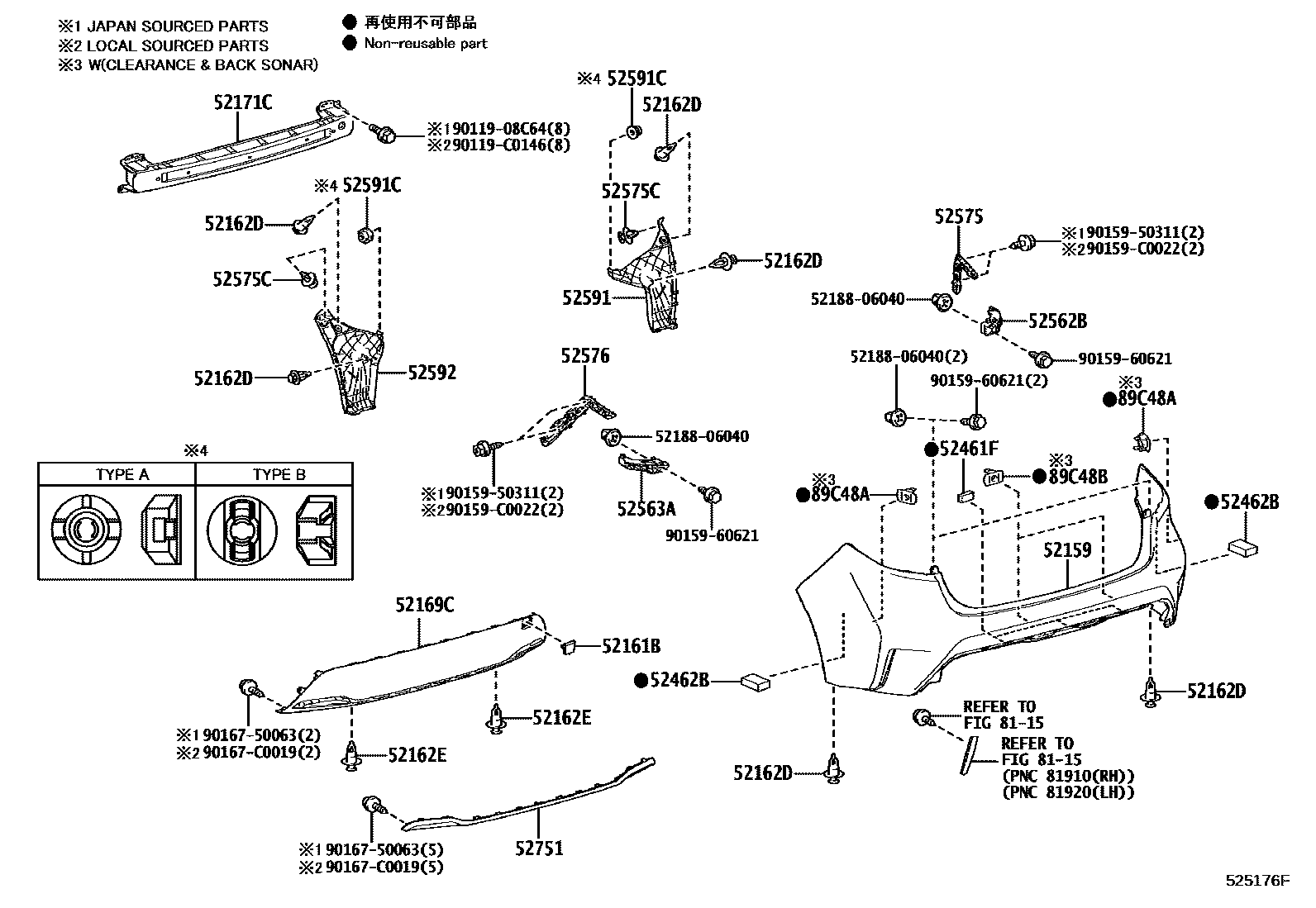

REAR BUMPER & BUMPER STAY
52159COVER, REAR BUMPER
PAINT REQ.
PAINT REQ.
52161BPIECE, REAR BUMPER
52162DPIECE, REAR BUMPER
(L)
52162EPIECE, REAR BUMPER
(L)
52169CCOVER, REAR BUMPER, LOWER
PAINT REQ.
52171CREINFORCEMENT, REAR BUMPER
52461FPAD, REAR BUMPER
52462BPAD, REAR BUMPER
52562BRETAINER, REAR BUMPER, UPPER RH
52563ARETAINER, REAR BUMPER, UPPER LH
52575RETAINER, REAR BUMPER SIDE, RH
52575CCLIP, REAR BUMPER SIDE RETAINER
(J)
(L)
52576RETAINER, REAR BUMPER SIDE, LH
52591SEAL, REAR BUMPER SIDE, RH
52591CCLIP, REAR BUMPER SIDE SEAL
(J),TYPE A:REF ILL.
BLACK,TYPE B:REFER ILLUST.
BLACK
(L),TYPE A:REF ILL.
52592SEAL, REAR BUMPER SIDE, LH
52751MOULDING, REAR BUMPER
8115
89C48ARETAINER, ULTRASONIC SENSOR, REAR CORNER
89C48BRETAINER, ULTRASONIC SENSOR, REAR CENTER
5218806040CUSHION, REAR BUMPER ARM, LH
main52188-06040
9011908C64
90119C0146
main90119-C0146
9015950311
9015960621
90159C0022
main90159-C0022
9016750063
90167C0019
main90167-C0019
28 parts on this diagram · 1 diagram in section
