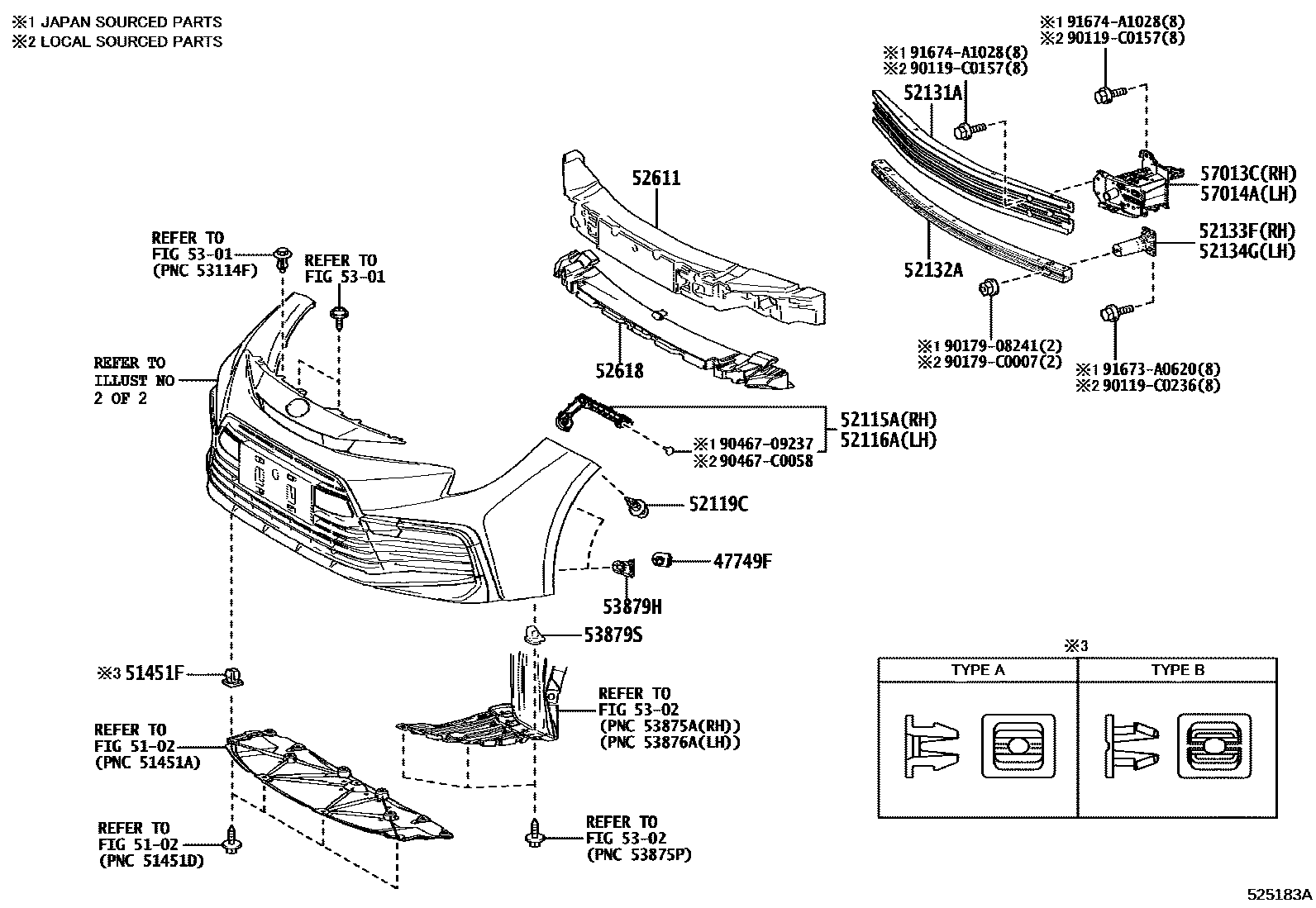

FRONT BUMPER & BUMPER STAY

0001 1 0002 1

47749FCLIP, PIN HOLD

main47749-02080iMZEA12202112-202304

(L)

main47749-30090iMZEA12¥200202112-202304

(J)

main47749-33030iMZEA12¥200202107-202112

5102

51451FGROMMET, NO.1

main90189-06193iMZEA12¥80202107-202304

(J),TYPE A:REF ILL.

main90189-06237iMZEA12,MZEH16¥100202107-202304

(J),TYPE B:REF ILL.

main90189-C0006iMZEA12202107-202304

(L),TYPE A:REF ILL.

main90189-C0024iMZEA12202107-202304

(L),TYPE B:REF ILL.

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-02540iMZEA12202107-202304

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52116-02530iMZEA12,MZEH16202107-202304

52119CCLIP, FRONT BUMPER COVER

main90467-05170iMZEA12¥80202107-202304

(J)

main90467-C0032iMZEA12202107-202304

(L)

52131AREINFORCEMENT, FRONT BUMPER

main52131-02350iMZEA12202107-202304

52132AREINFORCEMENT, FRONT BUMPER, NO.2

main52132-02130iMZEA12202107-202304

52133FBRACKET, FRONT BUMPER, RH

main52133-02190iMZEA12202107-202304

52134GBRACKET, FRONT BUMPER, LH

main52133-02190iMZEA12,MZEH16202107-202304

52611ABSORBER, FRONT BUMPER ENERGY

main52611-02710iMZEA12202107-202304

52618ABSORBER, FRONT BUMPER, LOWER

main52618-02360iMZEA12202107-202304

5301

5302

53879HRETAINER, FRONT FENDER LINER

main53879-02080iMZEA12,MZEH16202112-202304

(L)

main53879-30090iMZEA12¥270202112-202304

(J)

main53879-33030iMZEA12¥270202107-202112

53879SRETAINER, FRONT FENDER LINER

main53879-17020iMZEA12¥180202107-202304

57013CBRACKET SUB-ASSY, FRONT SIDE MEMBER, RH

main57013-02260iMZEA12202107-202304

57014ABRACKET SUB-ASSY, FRONT SIDE MEMBER, LH

main57014-02260iMZEA12202107-202304

90119C0157

main90119-C0157

90119C0236

main90119-C0236

9017908241

main90179-08241¥80

90179C0007

main90179-C0007

9046709237

main90467-09237¥80

90467C0058

main90467-C0058

91673A0620

main91673-A0620¥60

91674A1028

main91674-A1028¥120

26 parts on this diagram · 2 diagrams in section
