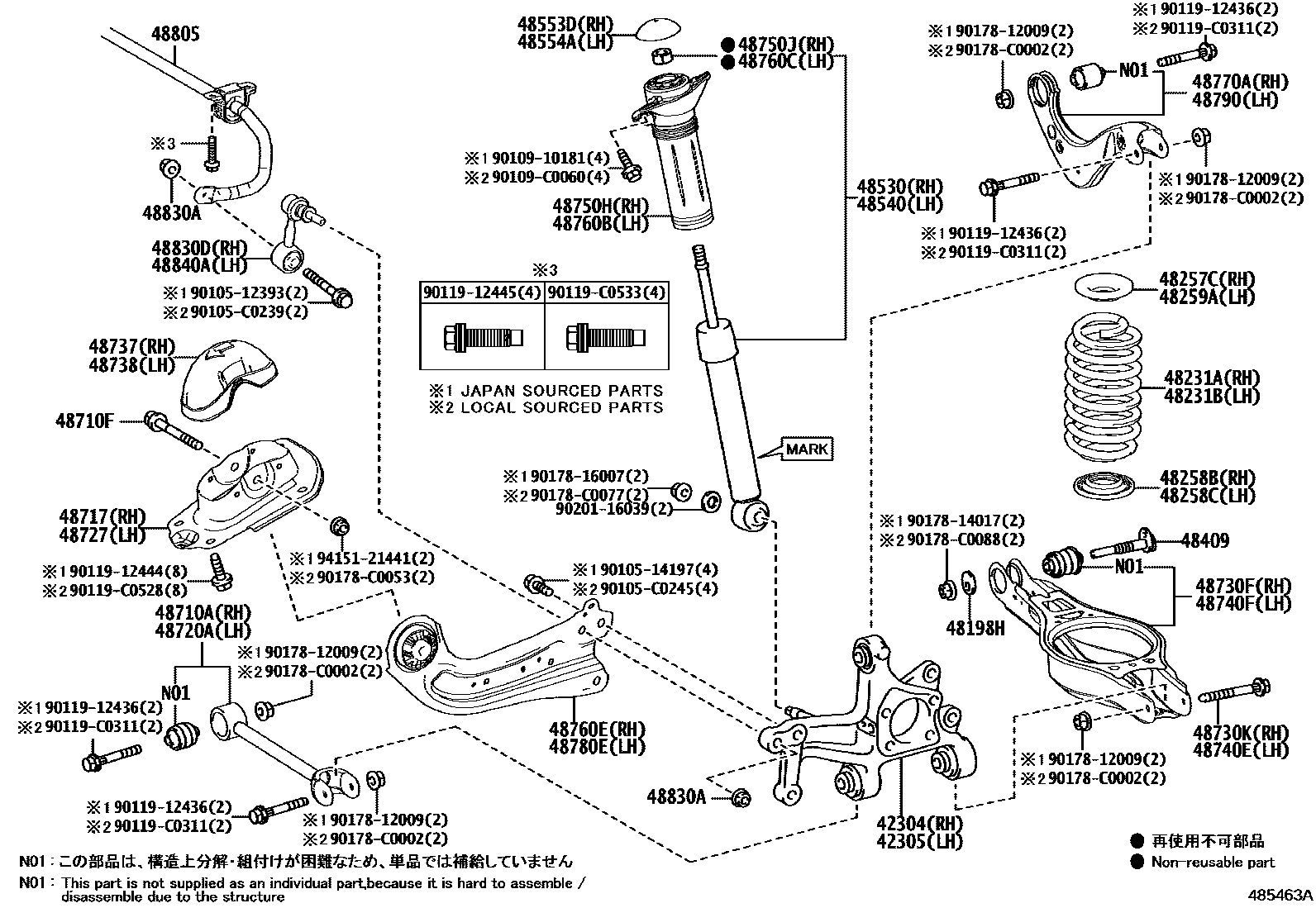

REAR SPRING & SHOCK ABSORBER
42304CARRIER SUB-ASSY, REAR AXLE, RH
42305CARRIER SUB-ASSY, REAR AXLE, LH
48198HCAM, CAMBER ADJUST, NO.2
(L)
(J)
48257CINSULATOR, REAR COIL SPRING, UPPER RH
48258BINSULATOR, REAR COIL SPRING, LOWER RH
48258CINSULATOR, REAR COIL SPRING, LOWER LH
48259AINSULATOR, REAR COIL SPRING, UPPER LH
48409CAM SUB-ASSY, REAR SUSPENSION TOE ADJUST
(L)
(J)
48530ABSORBER ASSY, SHOCK, REAR RH
MARK 48530-02R70
MARK 48530-02V60
48540ABSORBER ASSY, SHOCK, REAR LH
MARK 48530-02R70
MARK 48530-02V60
48553DCAP, REAR SHOCK ABSORBER, RH
48554ACAP, REAR SHOCK ABSORBER, LH
48710AARM ASSY, REAR SUSPENSION, NO.1 RH
48710FBOLT(FOR REAR TRAILING ARM)
(J)
(L)
48717BRACKET, REAR SUSPENSION ARM, RH
48720AARM ASSY, REAR SUSPENSION, NO.1 LH
48727BRACKET, REAR SUSPENSION ARM, LH
48730FARM ASSY, REAR SUSPENSION, NO.2 RH
48730KBOLT(FOR REAR SUSPENSION ARM NO.2 RH)
(J)
(L)
48737COVER, REAR SUSPENSION ARM, RH
48738COVER, REAR SUSPENSION ARM, LH
48740EBOLT(FOR REAR SUSPENSION ARM NO.2 LH)
(J)
(L)
48740FARM ASSY, REAR SUSPENSION, NO.2 LH
48750HSUPPORT ASSY, REAR SUSPENSION, RH
48750JNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)
(L)
(J)
48760BSUPPORT ASSY REAR SUSPENSION, LH
48760CNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)
(L)
(J)
48760EARM ASSY, TRAILING, REAR RH
48770AARM ASSY, UPPER CONTROL, REAR RH
48780EARM ASSY, TRAILING, REAR LH
48790ARM ASSY, UPPER CONTROL, REAR LH
48805BAR SUB-ASSY, REAR STABILIZER
48830ANUT(FOR REAR STABILIZER LINK)
(L)
(J)
9010512393
9010514197
90105C0239
main90105-C0239
90105C0245
main90105-C0245
9010910181
90109C0060
main90109-C0060
9011912436
9011912444
9011912445
90119C0311
main90119-C0311
90119C0528
main90119-C0528
90119C0533
main90119-C0533
9017812009
9017814017
9017816007
90178C0002
main90178-C0002
90178C0053
main90178-C0053
90178C0077
main90178-C0077
90178C0088
main90178-C0088
9020116039
9415121441
58 parts on this diagram · 1 diagram in section
