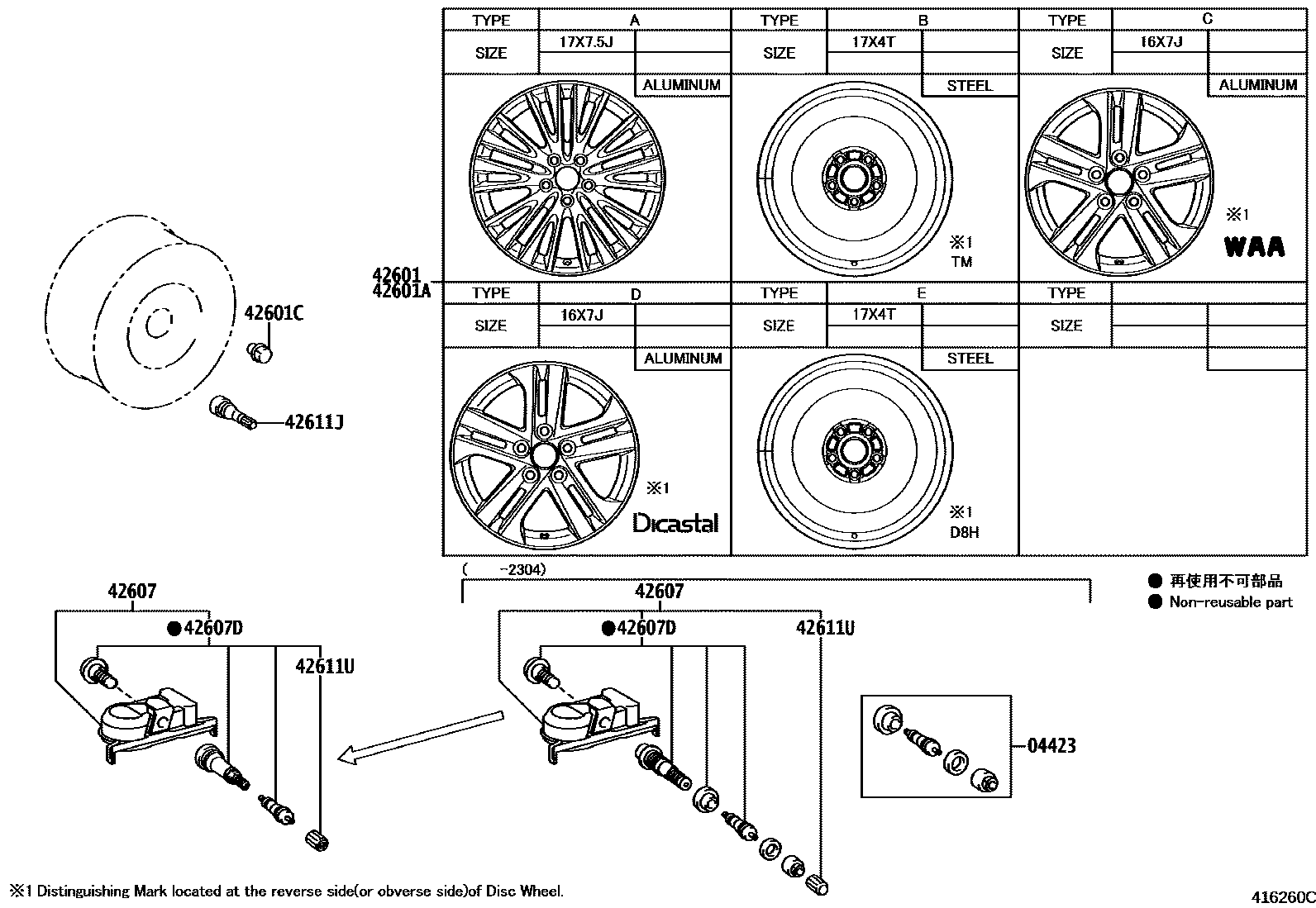

DISC WHEEL & WHEEL CAP

0001 1DISC WHEEL 0002 1WHEEL HUB ORNAMENT 0003 1BALANCE WEIGHT

04423FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE

main04423-0N010iMZEA12202107-202304

42601WHEEL, DISC

main42611-02X10iMZEA12202107-202304

17X7.5J,#,TYPE A:REFER ILLUST.

42601AWHEEL, DISC (FOR SPARE)

main42611-02J71iMZEA12202107-202410

17X4T,TYPE B:REFER ILLUST.

main42611-02Q11iMZEA12,MZEH16202312

17X4T,TYPE E:REFER ILLUST.

42601CNUT, HUB (FOR AXLE)

main90942-C1001iMZEA12202107-202304

42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR

main42607-02090iMZEA12202107-202304

main42607-02110iMZEA12,MZEH16202304

42607DVALVE, TIRE PRESSURE MONITOR

main90942-C5003iMZEA12202107-202304

main90942-C5009iMZEA12,MZEH16202304

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009iMZEA12,MZEH16202107-202304

(J)

main90942-C5005iMZEA12202107-202304

(L)

42611UCAP, TIRE VALVE

main90942-C5001iMZEA12202107-202304

8 parts on this diagram · 3 diagrams in section
