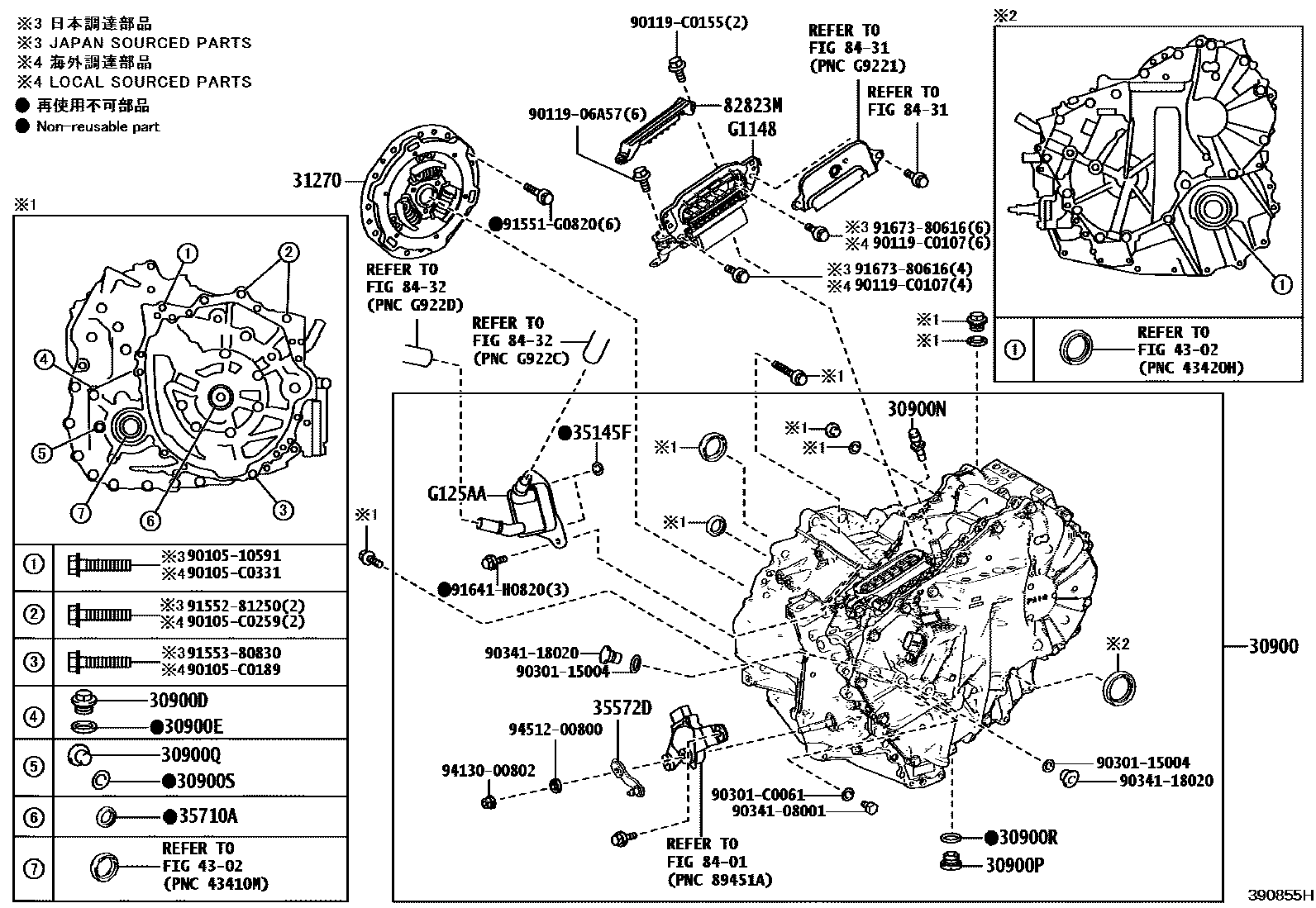

TRANSAXLE ASSY(HEV OR BEV OR FCEV)

30900TRANSAXLE ASSY, HYBRID VEHICLE

main30900-02080iMZEH16202307-202409

sub30900-02081

main30900-02081iMZEH16202410

30900DPLUG, W/HEAD STRAIGHT SCREW(FOR TRANSAXLE HOUSING & CASE)

main90341-18060iMZEH16¥240202307

(J)

main90341-C0022iMZEH16202307

(L)

30900EGASKET(FOR TRANSAXLE HOUSING & CASE)

main90430-18008iMZEH16¥110202307

30900NPLUG, BREATHER(FOR TRANSAXLE)

main90930-03201iMZEH16¥120202307

30900PPLUG, DRAIN(HEV)

main90341-18016iMZEH16¥190202307

30900QPLUG, FILLER(HEV)

main90341-18090iMZEH16¥190202307

30900RGASKET, DRAIN PLUG(HEV)

main90430-18008iMZEH16¥110202307

(J)

main90430-C0007iMZEH16202307

(L)

30900SGASKET, FILLER PLUG(HEV)

main90430-18008iMZEH16¥110202307

(J)

main90430-C0007iMZEH16202307

(L)

31270DAMPER ASSY, TRANSMISSION INPUT

main31270-0A010iMZEH16202307

35145FGASKET, TRANSAXLE CASE

main35697-0A010iMZEH16202307

35572DLEVER, TRANSMISSION CONTROL SHAFT

main35572-0A010iMZEH16202312

(L)

main35572-63020iMZEH16202307-202312

main35572-63020iMZEH16202312

(J)

35710ASEAL, TYPE T OIL(FOR INPUT SHAFT)

main90311-C0063iMZEH16202307

4302

82823MCAP, TERMINAL

main82823-02060iMZEH16202307

8401

8431

8432

G1148CABLE, MOTOR

mainG11480A020iMZEH16202307-202409

subG1148-0A021

mainG11480A021iMZEH16202410

G125AACOOLER, MOTOR COOLING

mainG125A0A010iMZEH16202307

9010510591

main90105-10591¥120

90105C0189

main90105-C0189

90105C0259

main90105-C0259

90105C0331

main90105-C0331

9011906A57

main90119-06A57¥60

90119C0107

main90119-C0107

90119C0155

main90119-C0155

9030115004

main90301-15004¥160

90301C0061

main90301-C0061

9034108001

main90341-08001¥120

9034118020

main90341-18020¥310

91551G0820

main91551-G0820¥80

9155281250

main91552-81250¥190

9155380830

main91553-80830¥80

91641H0820

main91641-H0820¥90

9167380616

main91673-80616¥60

9413000802

main94130-00802¥90

9451200800

main94512-00800¥80

37 parts on this diagram · 1 diagram in section
