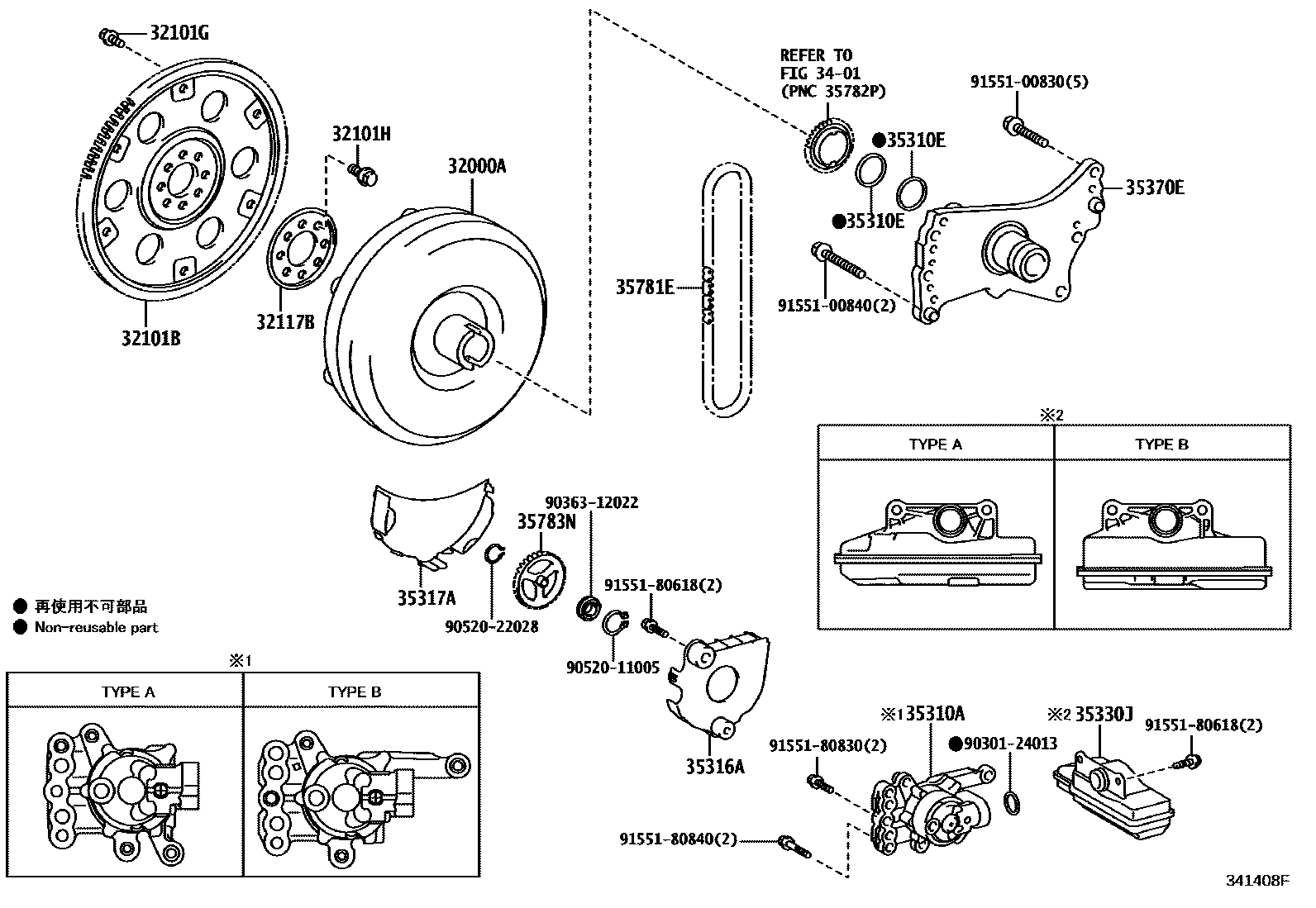

TORQUE CONVERTER, FRONT OIL PUMP(CVT)

0001 1K120 0002 1K121

32000ACONVERTER ASSY, TORQUE

main32000-12520iMZEA12¥74,000202107-202304

TMH:REFER FIG.34-01

main32000-12520iMZEA12¥74,000202304

32101BGEAR SUB-ASSY, DRIVE PLATE & RING

main32101-0R020iMZEA12202107-202304

32101GBOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90109-09001iMZEA12¥80202107-202304

*9-1.25PX12.4-7.3,BLACK

main90119-09025iMZEA12¥80202107-202304

*9-1.25PX12.4-8.4,SILVER WHITE

32101HBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-12404iMZEA12¥100202107-202304

32117BSPACER, DRIVE PLATE, REAR

main32117-0R010iMZEA12202107-202304

3401

35310APUMP ASSY, FRONT OIL

main35310-12200iMZEA12¥16,000202107-202203

TYPE A:REFER ILLUST.

main35310-28050iMZEA12¥14,500202107-202304

TYPE B:REFER ILLUST.

main35310-42010iMZEA12202304

35310ESEAL, TYPE T OIL (FOR FRONT OIL PUMP)

main35617-12060iMZEA12¥160202107-202304

35316APLATE, TRANSMISSION OIL PUMP SEPARATOR, NO.1

main35316-12010iMZEA12¥980202107-202304

35317APLATE, TRANSMISSION OIL PUMP SEPARATOR, NO.2

main35317-12010iMZEA12¥590202107-202304

35330JSTRAINER ASSY, OIL

main35330-12080iMZEA12¥3,950202107-202203

TYPE A:REFER ILLUST.

main35330-28040iMZEA12¥3,580202107-202304

TYPE B:REFER ILLUST.

main35330-28040iMZEA12¥3,580202304

35370ESHAFT ASSY, STATOR (CVT)

main35370-12120iMZEA12¥14,900202107-202304

35781ECHAIN, TRANSMISSION DRIVE

main35781-12010iMZEA12¥5,100202107-202205

main35781-42010iMZEA12¥1,420202206-202304

35783NSPROCKET, DRIVEN

main35783-12060iMZEA12¥1,310202107-202304

9030124013

main90301-24013¥140

9036312022

main90363-12022¥640

9052011005

main90520-11005¥70

9052022028

main90520-22028¥90

9155100830

main91551-00830¥80

9155100840

main91551-00840¥80

9155180618

main91551-80618¥60

9155180830

main91551-80830¥80

9155180840

main91551-80840¥120

23 parts on this diagram · 2 diagrams in section
