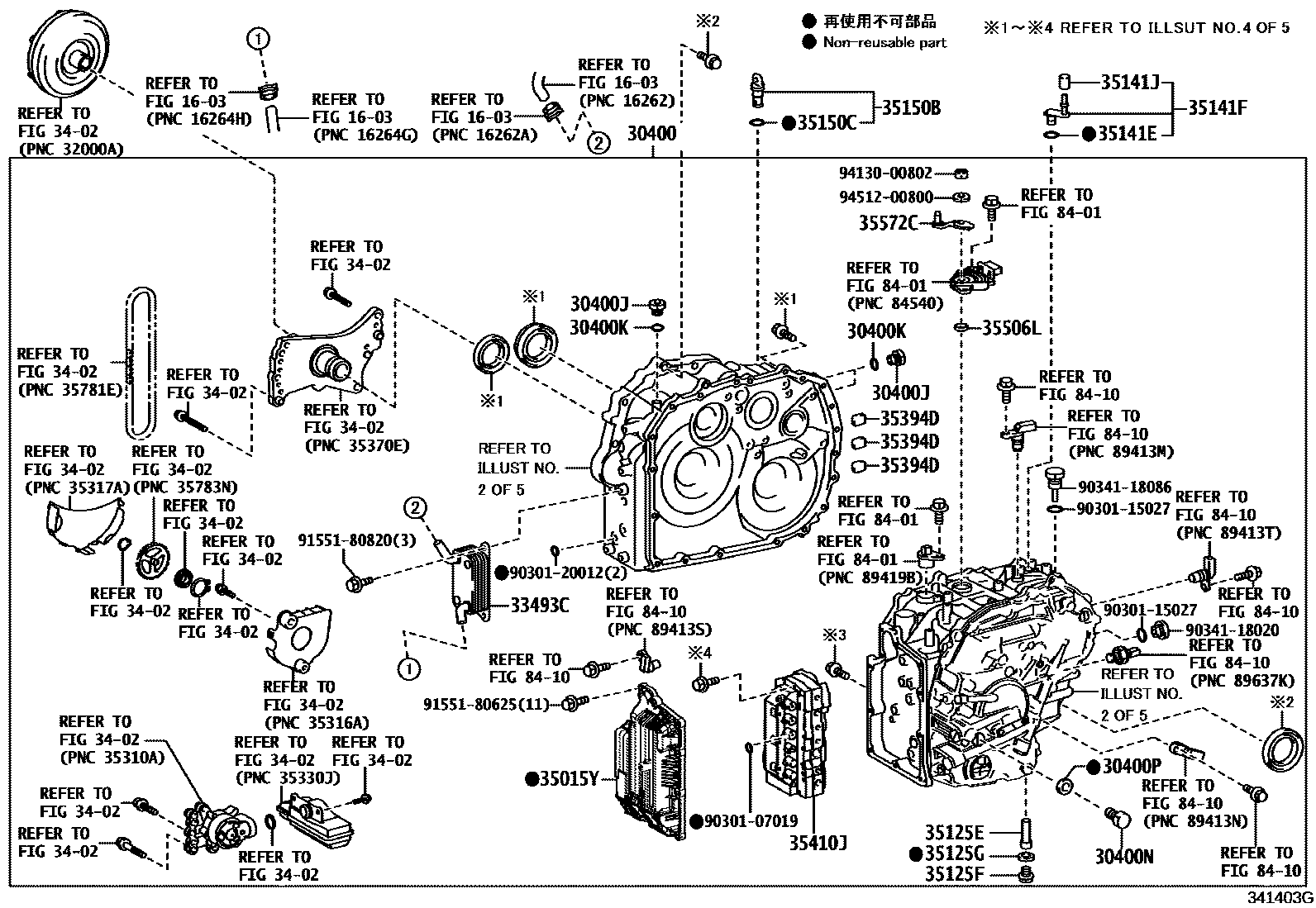

TRANSAXLE ASSY(CVT)

0001 1K120 0002 1K121 0003 1K120 0004 1K121 0005 1K120 0006 1K121 0007 1K120 0008 1K121 0009 1K120,K121

1603

30400TRANSAXLE ASSY, CONTINUOUSLY VARIABLE

main30400-12510iMZEA12202107-202304

K120

main30400-12540iMZEA12202304

K121

30400JPLUG, TRANSAXLE HOLE

main90341-08001iMZEA12202107-202304

30400KGASKET, TRANSAXLE HOLE PLUG

main90301-06196iMZEA12202107-202304

30400NPLUG, REFILL(CVT)

main90341-18077iMZEA12202107-202304

30400PGASKET, REFILL PLUG(CVT)

main90430-18008iMZEA12202107-202304

33493CCOOLER, TRANSMISSION OIL

main33493-12090iMZEA12202107-202304

3402

35015YCOVER SUB-ASSY, TRANSAXLE SIDE

main35015-12010iMZEA12202107-202205

main35015-42010iMZEA12202206-202304

main35015-42020iMZEA12202304

35125ETUBE, OVERFLOW(CVT)

main35125-12500iMZEA12202107-202304

35125FPLUG, OVERFLOW(CVT)

main90341-18016iMZEA12202107-202304

35125GGASKET, OVERFLOW PLUG(CVT)

main90430-18008iMZEA12202107-202304

35141ERING, O(FOR BREATHER PLUG)

main90301-09173iMZEA12202107-202304

35141FPLUG, BREATHER, NO.1(CVT)

main90930-03240iMZEA12202107-202304

35141JPLUG, BREATHER, NO.2(CVT)

main90930-03243iMZEA12202107-202304

35150BPLUG ASSY, TRANSMISSION CASE

main35150-44010iMZEA12202107-202304

35150CRING, O (FOR TRANSMISSION CASE PLUG)

main90301-09173iMZEA12202107-202304

35394DMAGNET, OIL CLEANER(CVT)

main35394-48010iMZEA12202107-202304

35410JBODY ASSY, TRANSMISSION VALVE

main35410-12881iMZEA12202107-202304

main35410-42080iMZEA12202304

35506LSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)

main90311-12002iMZEA12202107-202304

35572CLEVER, TRANSMISSION CONTROL SHAFT

main35572-12190iMZEA12202107-202304

8401

8410

9030107019

main90301-07019

9030115027

main90301-15027

9030120012

main90301-20012

9034118020

main90341-18020

9034118086

main90341-18086

9155180625

main91551-80625

9155180820

main91551-80820

9413000802

main94130-00802

9451200800

main94512-00800

32 parts on this diagram · 9 diagrams in section
