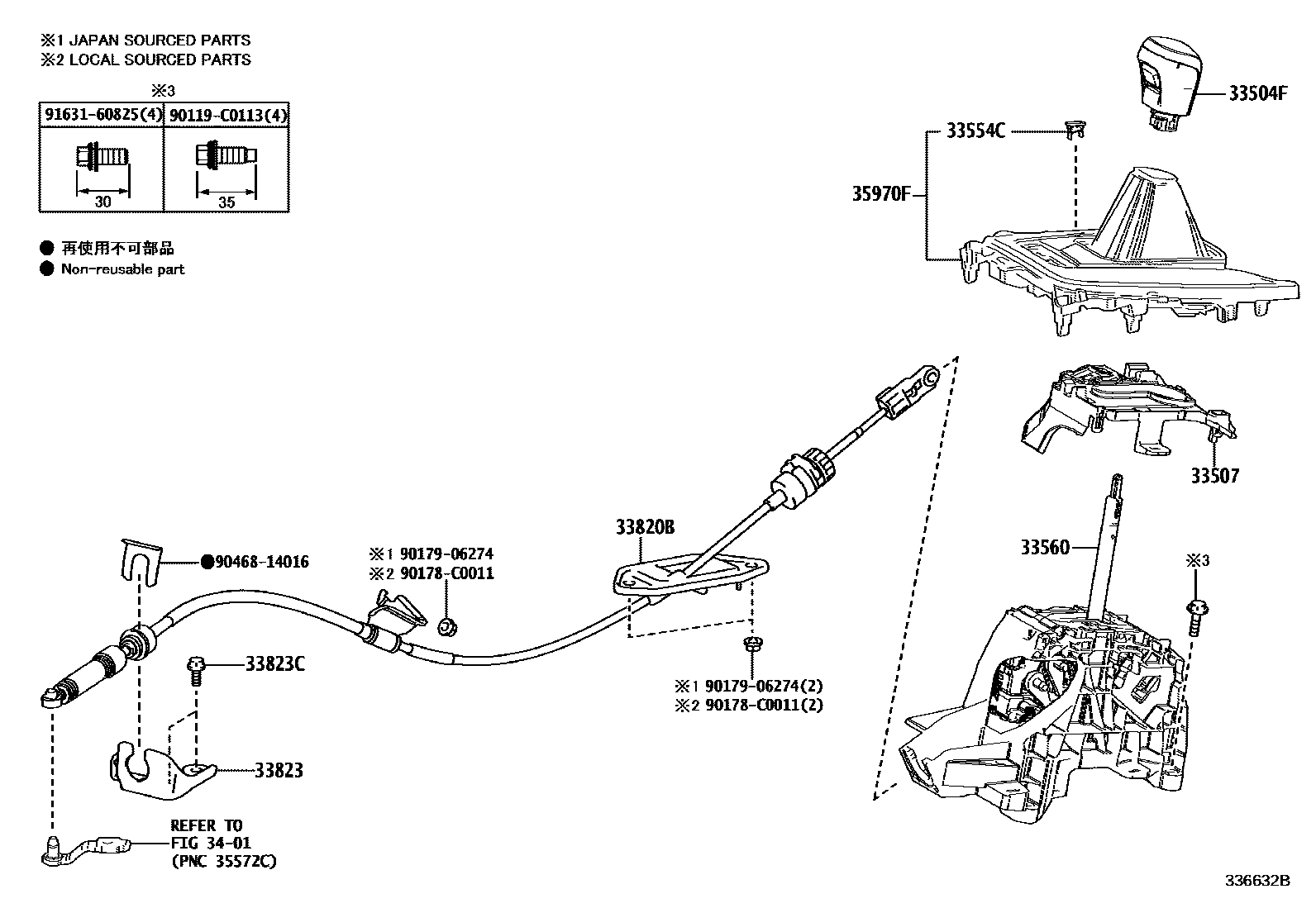

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-02800-C0iMZEA12,MZEH16..N202107-202304

BLACK,TRIM2#

main33504-02870-C0iMZEA12..G202107-202304

BLACK,TRIM2#,4#

33507BRACKET SUB-ASSY, SHIFT LEVER HOUSING

main33507-02070iMZEA12202107-202304

main33507-0A020iMZEA12202304

main33507-0A040iMZEH16202307

33554CCOVER, SHIFT LOCK RELEASE BUTTON

main33554-02210iMZEA12202107-202304

33560UNIT ASSY, SHIFT LOCK CONTROL

main33560-02780iMZEA12202304

main33560-0A080iMZEH16202307

main33560-F4130iMZEA12202107-202304

33820BCABLE ASSY, TRANSMISSION CONTROL

main33820-02D90iMZEA12202107-202304

main33820-02F20iMZEA12202304

main33820-02F30iMZEH16202307

33823BRACKET, TRANSMISSION CONTROL CABLE, NO.1

main33823-0A060iMZEH16202307

main33823-F4050iMZEA12202107-202304

33823CBOLT (FOR TRANSMISSION CONTROL CABLE BRACKET)

main90119-08079iMZEA12,MZEH16202304

(J),TYPE A:REF ILL.

main90119-C0132iMZEA12,MZEH16202304

(L),TYPE B:REF ILL.

main90119-C0212iMZEA12202107-202304

main90119-C0212iMZEA12,MZEH16202304

(L),TYPE A:REF ILL.

main90119-C0585iMZEA12202304

TYPE C:REFER ILLUST.

main91671-80820iMZEA12,MZEH16202304

(J),TYPE B:REF ILL.

3401

35970FHOUSING ASSY, POSITION INDICATOR

main35970-02280-C1iMZEA12..N202107-202304

BLACK & SILVER,TRIM2#

main35970-02280-C3iMZEA12..G202107-202304

BLACK & COPPER,TRIM2#,4#

main35970-02750-C0iMZEA12..N202304

BLACK & SILVER,TRIM2#

main35970-02750-C1iMZEA12..G202304

BLACK & COPPER,TRIM2#,4#

main35970-02760-C0iMZEH16..N202307

BLACK & SILVER,TRIM2#

main35970-02760-C1iMZEH16..G202307

BLACK & COPPER,TRIM2#,4#

90119C0113

main90119-C0113

90178C0011

main90178-C0011

9017906274

main90179-06274

9046814016

main90468-14016

9163160825

main91631-60825

14 parts on this diagram · 3 diagrams in section
