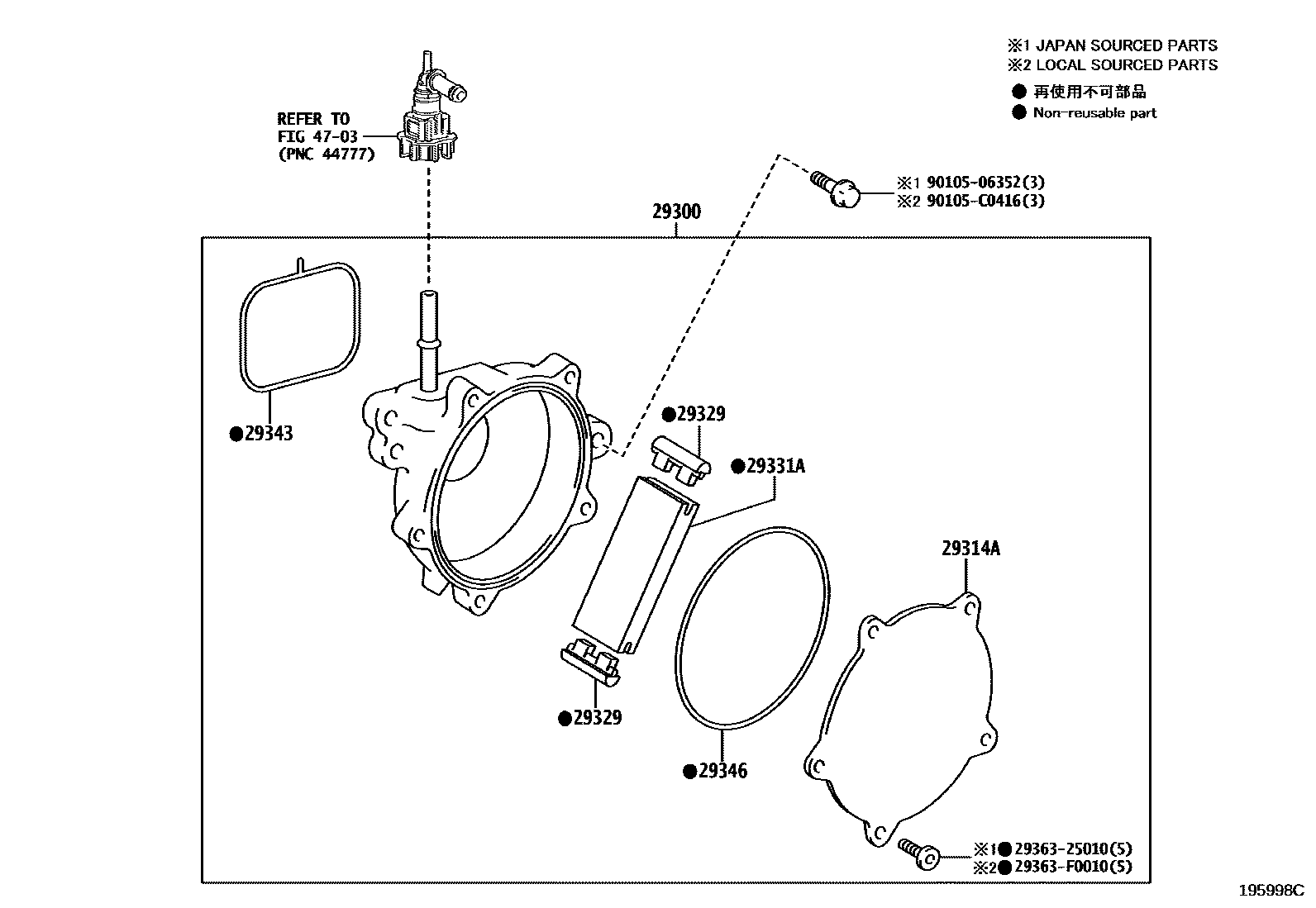

VACUUM PUMP
29300PUMP ASSY, VACUUM
*639
*640
*641
*630
29314ACOVER, END
*639
*640
29329CAP, VACUUM PUMP VANE
*639
*640
29331AVANE, VACUUM PUMP
*639
*640
29343RING, O VACUUM PUMP, NO.1
*639
*640
*641
29346RING, O VACUUM PUMP COVER
*639
*640
4703
2936325010SCREW, HOLLOW VACUUM PUMP
main29363-25010
29363F0010SCREW, HOLLOW VACUUM PUMP
main29363-F0010
9010506352
main90105-06352
90105C0416
main90105-C0416
11 parts on this diagram · 2 diagrams in section
