PARTIAL ENGINE ASSEMBLY

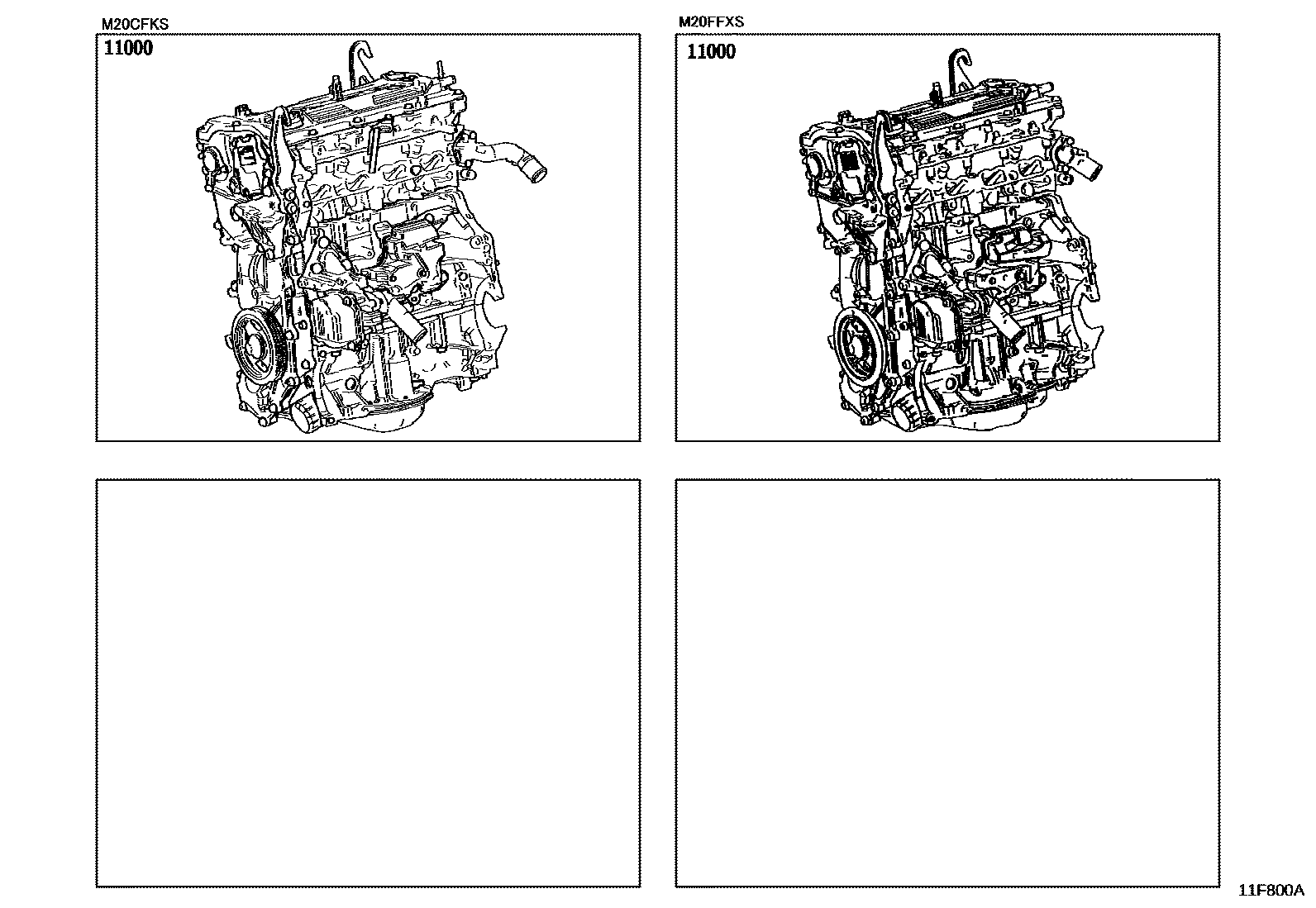

Parts diagram
11000ENGINE ASSY, PARTIAL
main19000-F2180i202107-202304
main19000-F2290i202304
main19000-F2300i202307

1 parts on this diagram · 1 diagram in section
