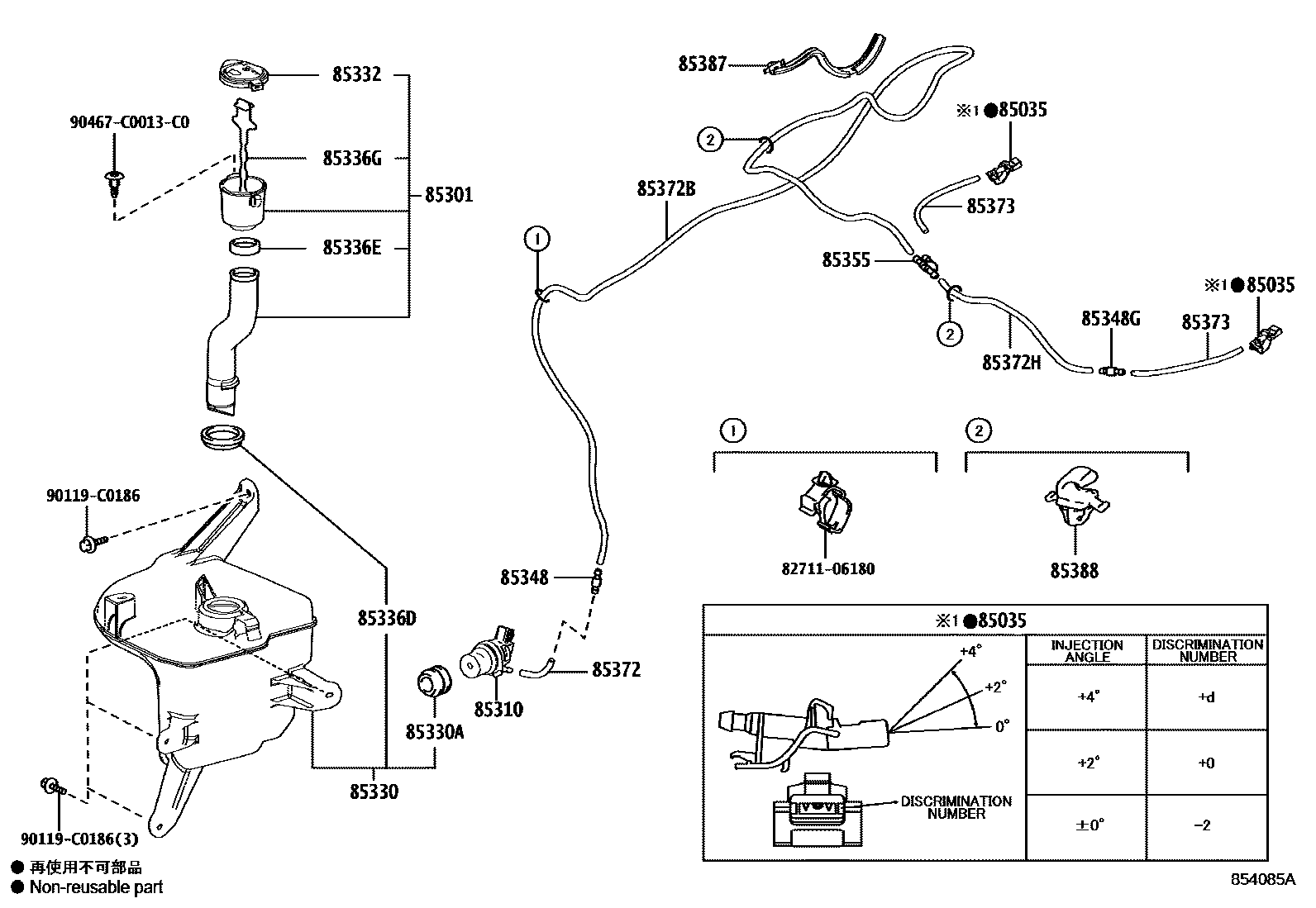

WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-12400iZWE183¥0201904

ANGLE 0

main85381-12420iZWE183201904

ANGLE +2

sub85381-0K060

main85381-12430iZWE183201904

ANGLE +4

85301INLET SUB-ASSY, WASHER

main85301-02150iZWE183201904

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-21010iZWE183¥0201904

sub85330-0D100¥7,500

85330JAR ASSY, WINDSHIELD WASHER

main85315-02460iZWE183201904

85330ABUSH, WINDSHIELD WASHER JAR

main85336-60300iZWE183¥0201904

85332CAP, WINDSHIELD WASHER JAR

main85316-02440iZWE183201904

85336DPACKING, WINDSHIELD WASHER JAR

main85336-30160iZWE183201904

85336EPACKING, WINDSHIELD WASHER INLET HOSE

main85336-42320iZWE183¥0201904

85336GGAGE, WATER LEVEL

main85312-0P010iZWE183201904

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85375-0E140iZWE183201904

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85375-0E140iZWE183201904

85355VALVE, WINDSHIELD WASHER HOSE

main85321-28020iZWE183¥680201904

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90068-33232iZWE183201904

L=60

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90068-59132iZWE183201904

L=2100

85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3

main90068-59133iZWE183201904

L=360

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90068-33231iZWE183201904

L=170

85387CLAMP NO.1 (FOR WINDSEIELD WASHER)

main85388-02510iZWE183201904

85388CLAMP NO.2 (FOR WINDSEIELD WASHER)

main85371-12040iZWE183¥100201904

8271106180WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-06180

90119C0186

main90119-C0186

90467C0013C0

main90467-C0013C0

21 parts on this diagram · 1 diagram in section
