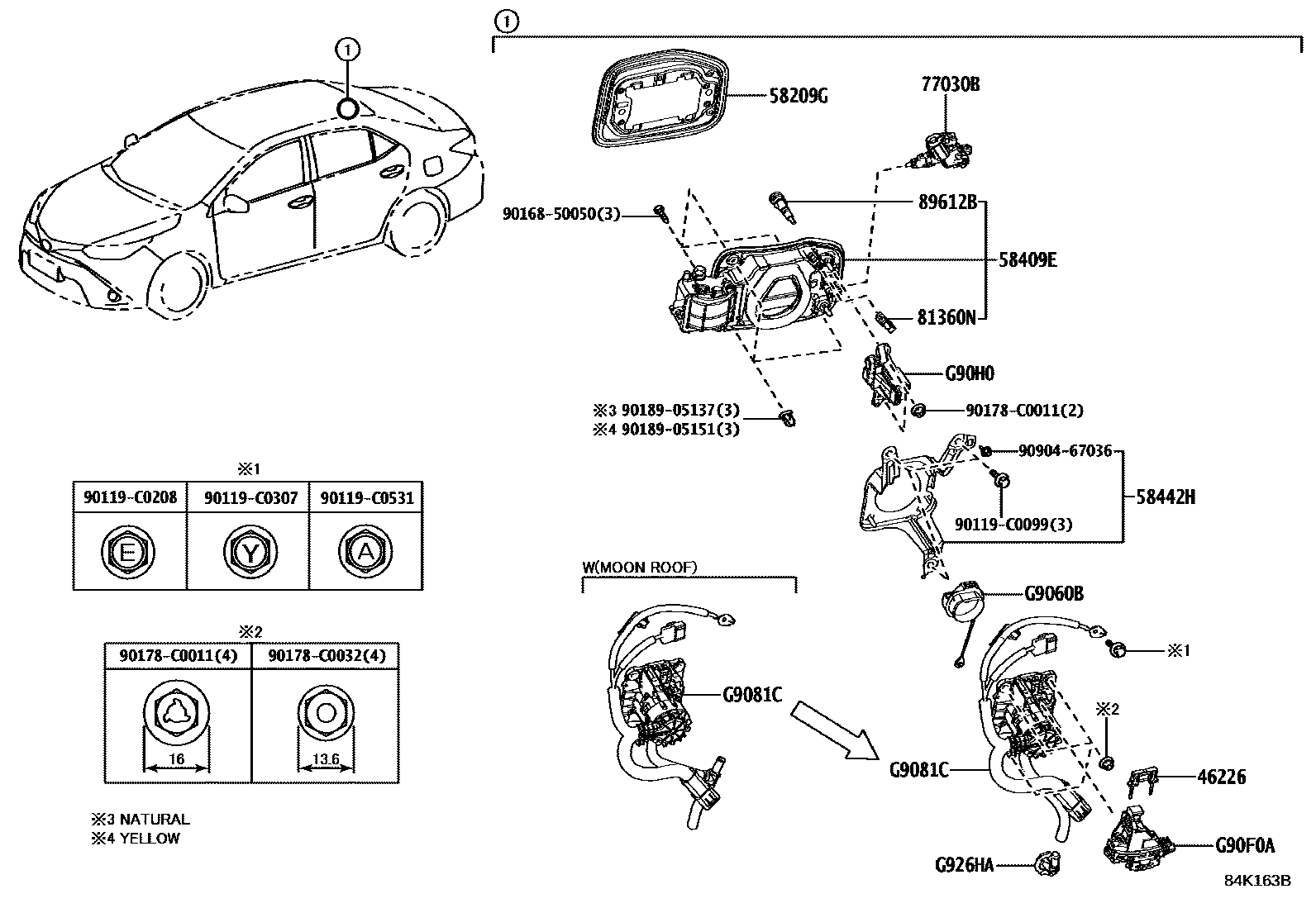

DC/DC CONVERTER & CHARGER(BEV OR FCEV)

0001 1BATTERY CHARGER LID 0002 1EV CHARGER & EV CHARGER CABLE

46226PIN, CONNECTOR

main46226-47010iZWE183¥230201904

58209GCOVER SUB-ASSY, BATTERY BOX

main58209-12060iZWE183201904

58409ELID SUB-ASSY, BATTERY CHARGER CONNECTOR OPENING

main58409-12030iZWE183201904

58442HREINFORCEMENT, BATTERY SERVICE HOLE COVER

main58442-02020iZWE183201904

77030BLOCK ASSY, CHARGE LID W/MOTOR

main77030-02060iZWE183201904

81360NLAMP ASSY, SPOT

main81360-47010iZWE183¥1,140201904

89612BLIFTER, PUSH

main89612-12010iZWE183201904

G9060BCOVER, CONNECTOR

main82821-02290iZWE183201904

G9081CCABLE, AC CHARGER INLET

mainG908102030iZWE183..E201904

mainG908102040iZWE183..G,V201904

G90F0ALOCK ASSY, CABLE EV CHARGER

mainG90F002020iZWE183201904

G90H0INDICATOR ASSY, EV CHARGER LID

mainG90H012010iZWE183201904-202010

subG90H0-12011

mainG90H012011iZWE183202011

G926HAGROMMET, EV CHARGER

mainG926H47010iZWE183201904

90119C0099

main90119-C0099

90119C0208

main90119-C0208

90119C0307

main90119-C0307

90119C0531

main90119-C0531

9016850050

main90168-50050¥70

90178C0011

main90178-C0011

90178C0032

main90178-C0032

9018905137

main90189-05137¥80

9018905151

main90189-05151¥80

9090467036

main90904-67036¥70

22 parts on this diagram · 2 diagrams in section
