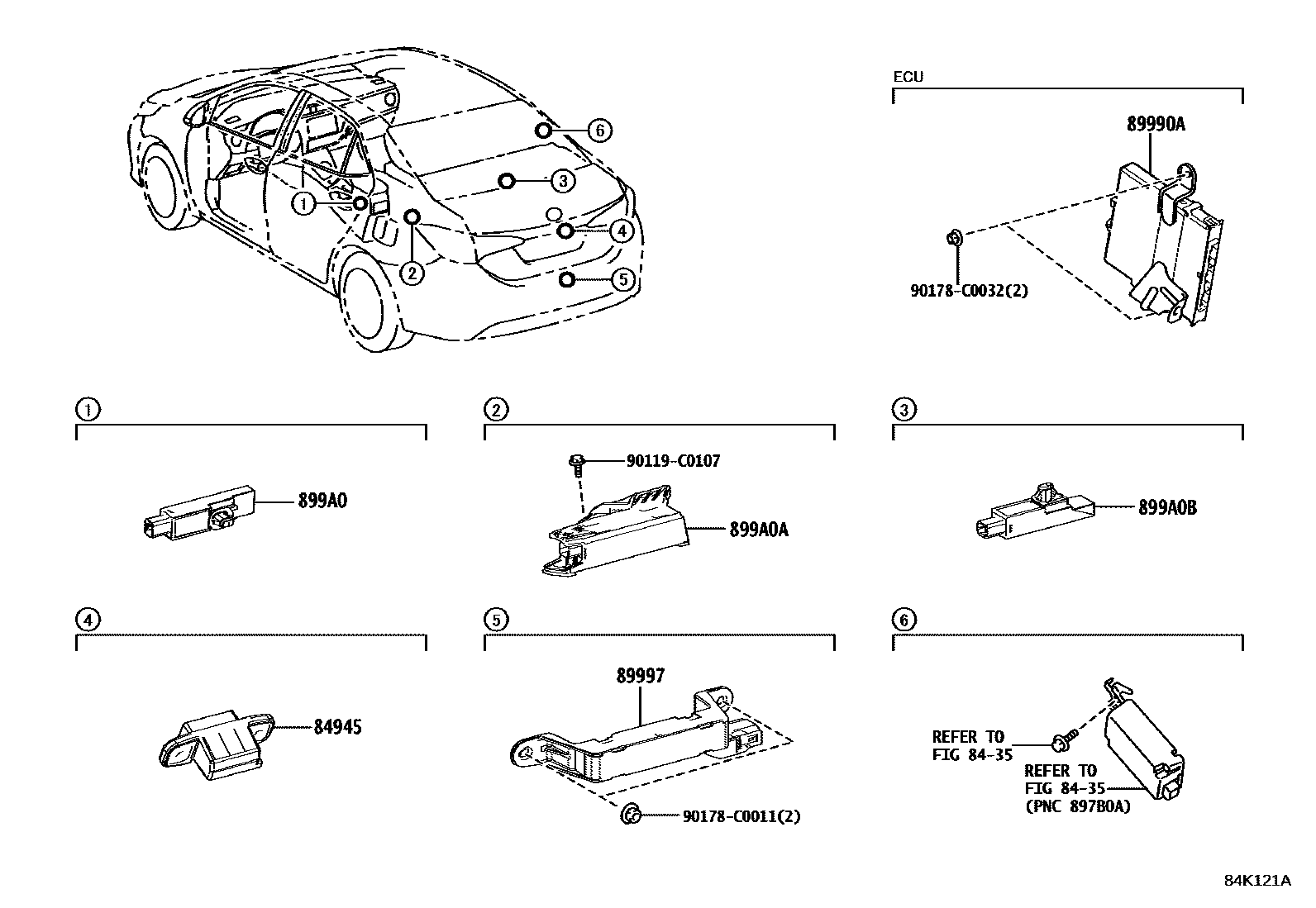

WIRELESS DOOR LOCK

8435

84945SWITCH, LUGGAGE ELECTRICAL KEY

main84945-02030iZWE183201904

89990ACOMPUTER ASSY, SMART KEY

main89990-02670iZWE183..V201904

main89990-02680iZWE183..E,G201904

89997ANTENNA, ELECTRICAL KEY

main89997-30070iZWE183201904

899A0ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1

main899A0-0F010iZWE183201904

899A0AANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2

main899A0-02150iZWE183201904

899A0BANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.3

main899A0-0F010iZWE183201904

90119C0107

main90119-C0107

90178C0011

main90178-C0011

90178C0032

main90178-C0032

10 parts on this diagram · 1 diagram in section
