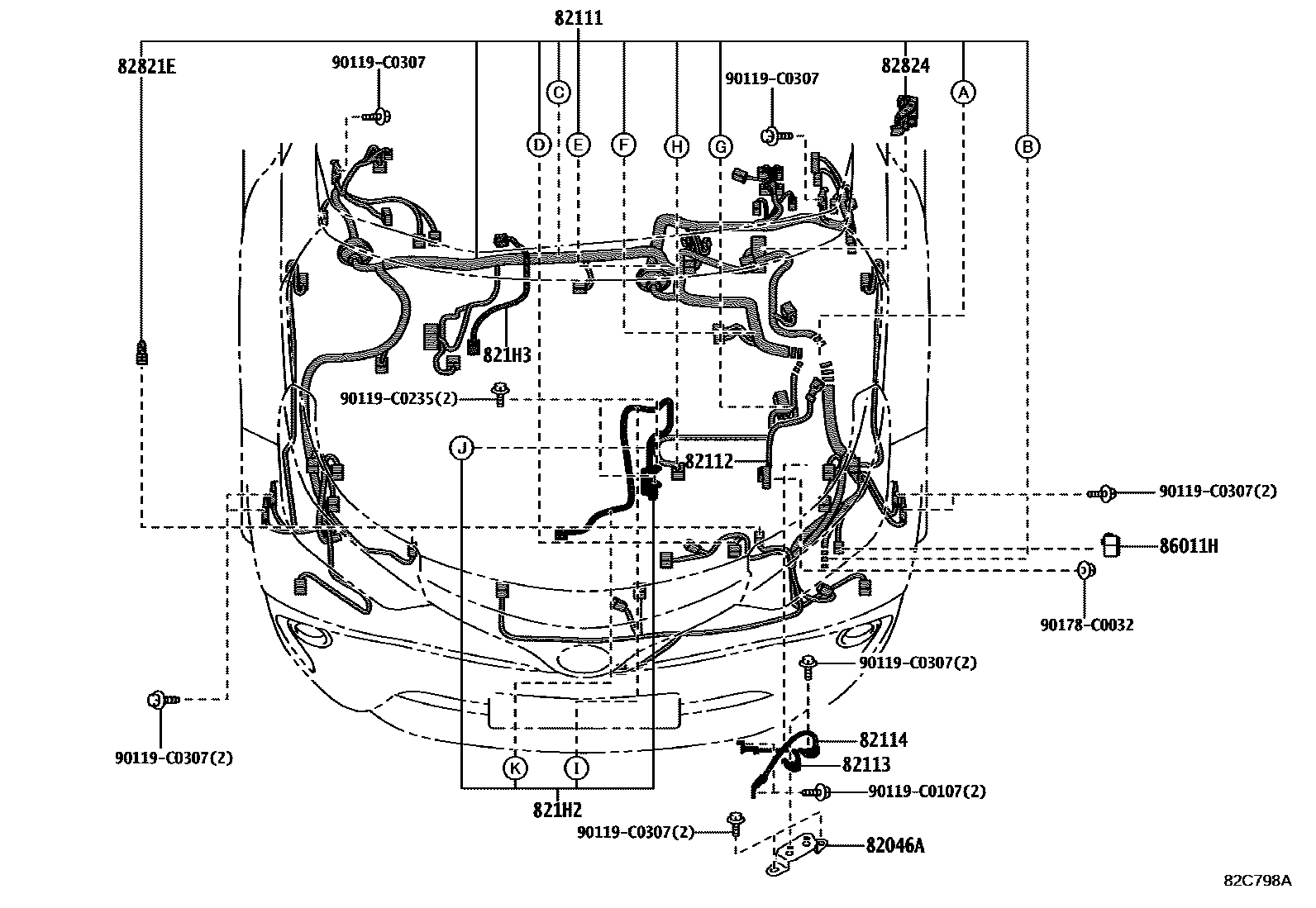

WIRING & CLAMP

0001 1ENGINE ROOM 1/2 0002 1ENGINE ROOM 2/2 0003 1ENGINE 0004 1INSTRUMENT PANEL 0005 1DOOR 0006 1FLOOR & ROOF 0007 1HIGH TENSION CABLE 0008 1CLAMP & BRACKET 0009 1CONNECTOR 1/2 0010 1CONNECTOR 2/2

82046AWIRE SUB-ASSY, BODY GROUND, NO.1

main82046-02020iZWE183201904

82111WIRE, ENGINE ROOM MAIN

main82115-F2280iZWE183201904-201912

main82115-F2281iZWE183201912

82112WIRE, ENGINE ROOM, NO.2

main82112-02060iZWE183201904

82113WIRE, ENGINE ROOM, NO.3

main82113-02050iZWE183201904

82114WIRE, ENGINE ROOM, NO.4

main82114-02040iZWE183201904

821H2WIRE, HV AIR CONDITIONER

main821H2-02120iZWE183201904

821H3WIRE, HV BATTERY PACK

main821H3-02040iZWE183201904

82821ECOVER, CONNECTOR

main82821-42040iZWE183¥170201904

82824CONNECTOR, WIRING HARNESS

main90980-12E30iZWE183201904

86011HFILTER, NOISE

main90980-05383iZWE183¥3,180201904

90119C0107

main90119-C0107

90119C0235

main90119-C0235

90119C0307

main90119-C0307

90178C0032

main90178-C0032

14 parts on this diagram · 10 diagrams in section
