CENTER STOP LAMP

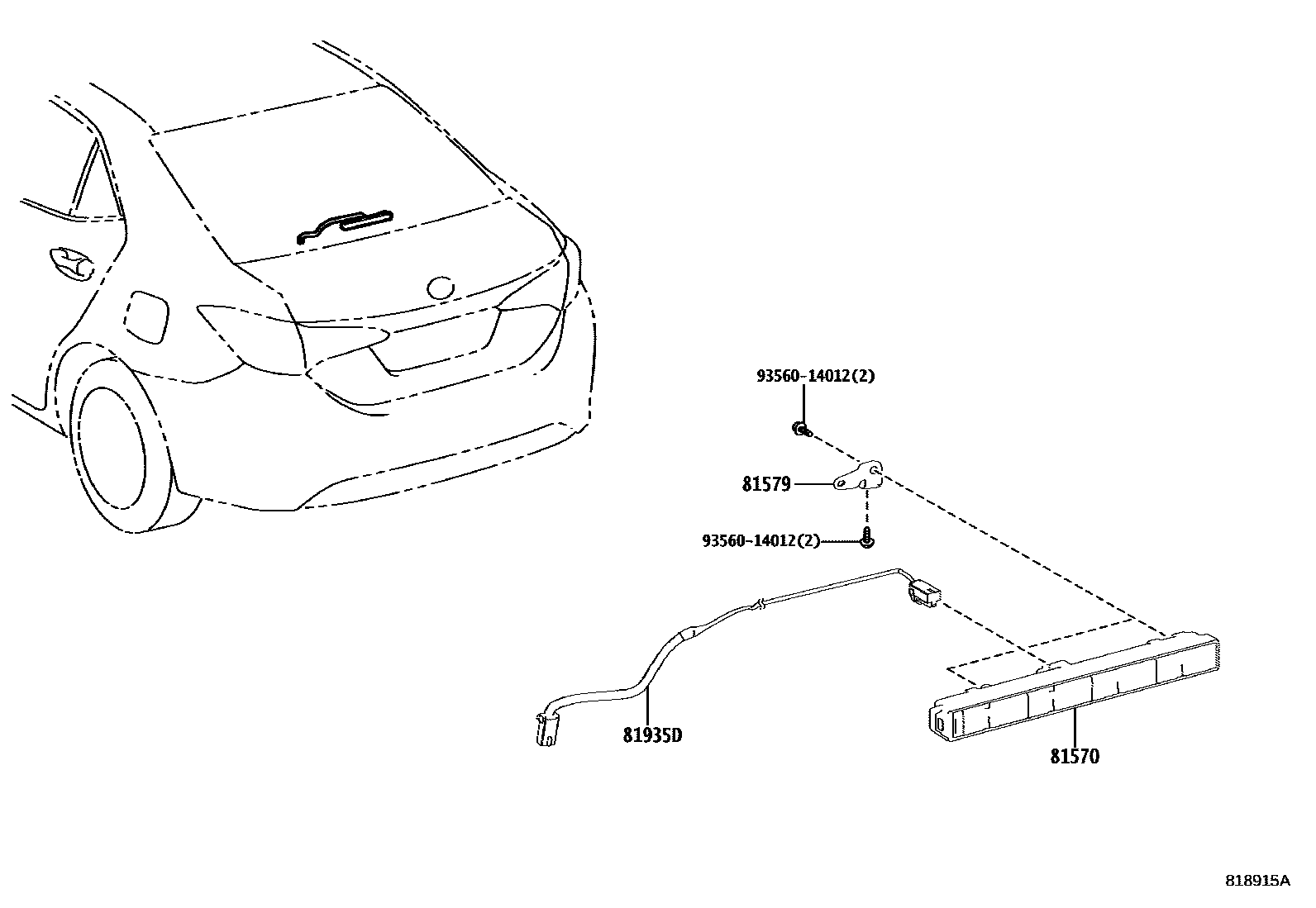

Parts diagram

81570LAMP ASSY, CENTER STOP

main81570-0D160i201904

81579BRACKET, CENTER STOP LAMP

main81978-02040i201904

81935DCORD ASSY, CENTER STOP LAMP

main81935-02221i201904

9356014012

main93560-14012

4 parts on this diagram · 1 diagram in section
